SRW224G4-K9-NA

Cisco

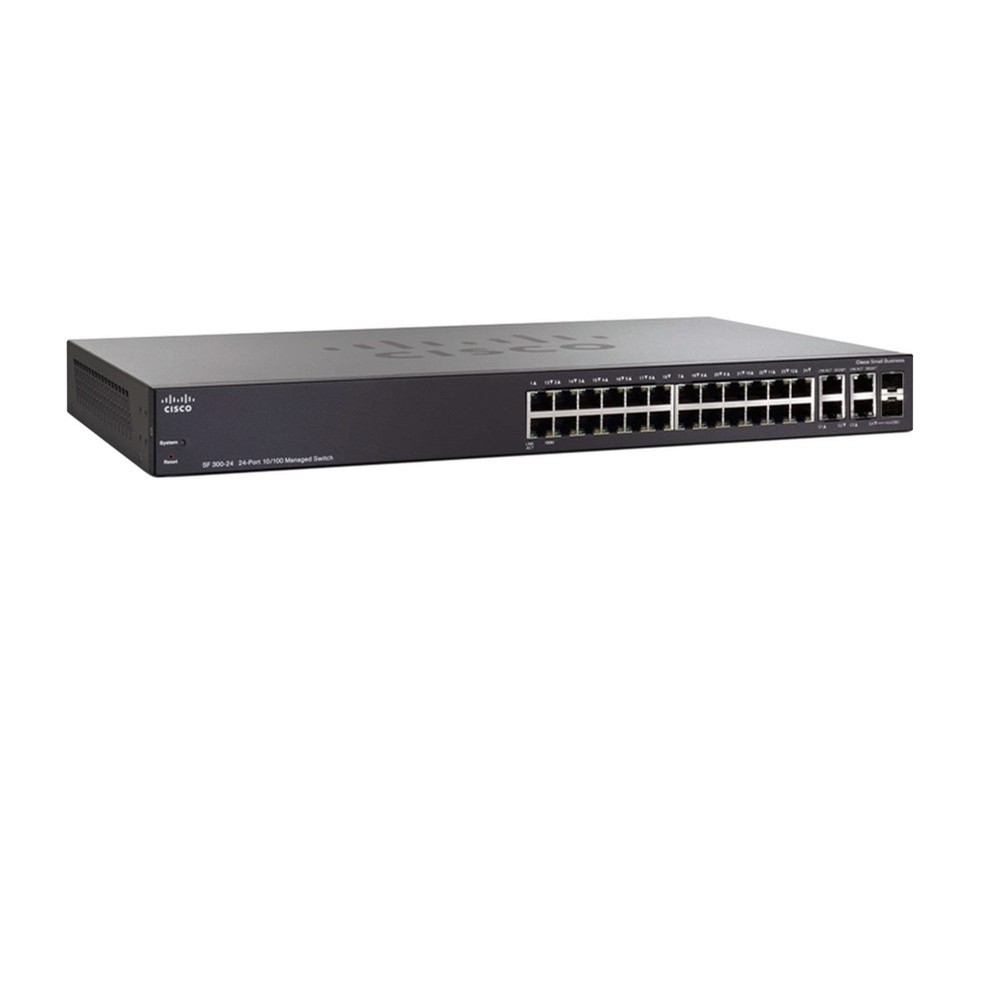

Cisco SF300-24 Managed Gigabit Ethernet Switch 24-Port 10/100


Model#: SRW224G4-K9-NA

Sku: IT2702



MSRP: $199.00


Out of stock

  • A stellar addition to your business, the SF300-24 Managed 24-Port 10/100 Ethernet Switch from Cisco is a feature-packed, 24-Port Fast Ethernet switch for your network. Beyond these ports, this switch also features four Gigabit Ethernet ports, two of which can operate as either mini-GBIC Ethernet or as standard RJ-45 Ethernet gigabit connections. With these particular ports, you can connect gigabit or fiber optic devices to the switch.

  • Aside from hardware, this switch is easy to setup and configure while still offering you advanced features for more demanding network applications. The switch features QoS so you can prioritize more important network traffic, such as VoIP or streaming video. In addition, with the switch you can setup access control lists to restrict sensitive portions of the network from unauthorized users. You can also setup guest VLANs, granting non-employees limited access to your network. As a safeguard for your business operations, this switch separates your more important network traffic from the traffic on your guest VLANs.

  • In addition, the switch features static routing/Layer 3 switching between VLANs. In turn, this allows you to segment your network into separate workgroups and communicate across VLANs without degrading the performance of applications run on these VLANs. You can also use this or multiple switches to manage your internal network while devoting your network's router to external traffic and security. Also, in terms of management, this switch supports IPv6, so as more products and services switch to this Internet Protocol, you'll be ready.

  • Device Type Switch - 24 ports - L3 - managed

  • Enclosure Type Rack-mountable - 1U

  • Ports 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000

  • Performance Switching capacity : 12.8 Gbps

  • Forwarding performance (64-byte packet size) : 9.52 Mpps

  • MAC Address Table Size 8K entries

  • Routing Protocol Static IPv4 routing

  • Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI

  • Encryption AlgorithmSSL

  • Authentication Method Secure Shell (SSH), RADIUS, TACACS+

  • Features Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless

  • Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

  • RAM 128 MB

  • Flash Memory 16 MB flash

  • Status Indicators Link activity, port transmission speed, system

  • Interfaces 24 x 10Base-T/100Base-TX - RJ-45

  • 1 x console - 9 pin D-Sub (DB-9) - management

  • 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45

  • 2 x SFP (mini-GBIC)

  • Power Device Power supply - internal

  • Voltage Required AC 120/230 V ( 50/60 Hz )
