N5-X12

Mimosa Network

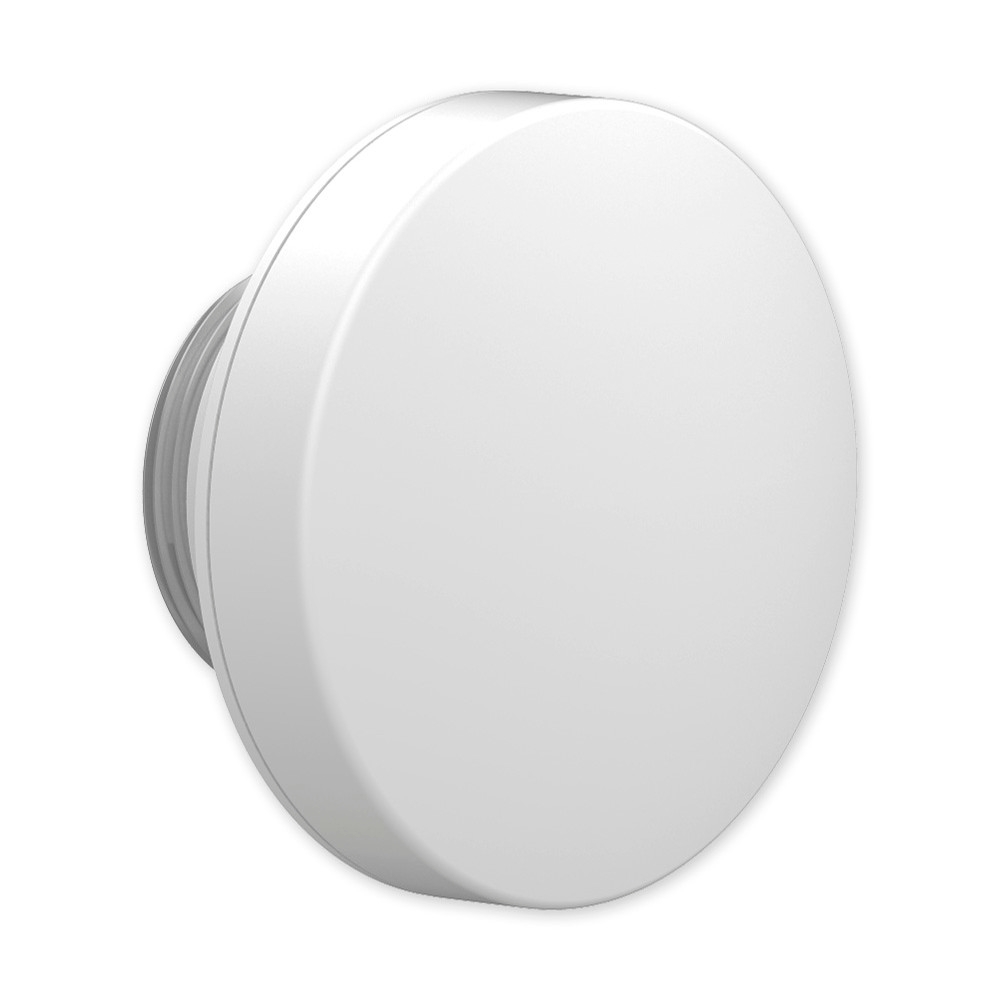

Mimosa Networks N5-X12 4.9-6.4 GHz Modular Twist-on Antenna, 70mm Horn for C5x only, 12 dBi gain


Model#: N5-X12

Sku: IT2695

Out of stock

Your Price: N/A


N5-X12

  • #Part number: 100-00086

The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.

  • Product N5-X12 (horn)
  • Gain: 12 dBi
  • Polarization Dual-slant: 45º
  • Beamwidth, Symmetric (3 dB): 38º
  • Front-to-Back Ratio (min): 29 dB
  • Front-to-Side Ratio (min): 27 dB
  • Weight: 0.16 kg (0.35 lbs)
  • Dimensions: Diameter:76 mm (2.99”) / Depth: 67 mm (2.63”)
  • Mount: Mimosa N5-X twist-on
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 3.27 kg @

              160 km/h
              (7.20 lbs @
              100 mph)
