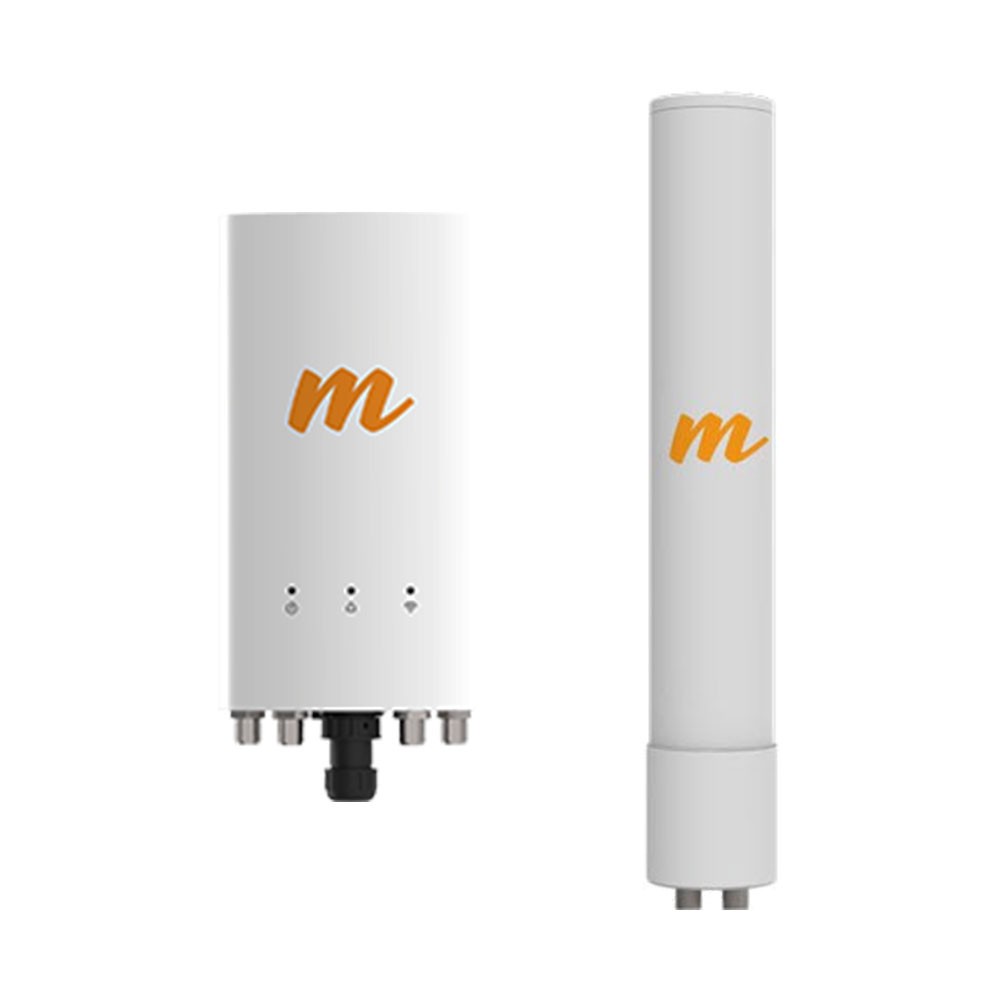

Mimosa A5c 5Ghz AP Fiber Speeds 11ac w/ 15dBi omni antenna 360 4.9-6.4GHz Mimosa N5-360
Product Highlights
Model#: A5C-BD5
Sku: IT2694
Out of stock
Mimosa A5c
- Part # 100-00037
With the fastest client speeds and great access point capacity, along with local and network-wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network. The A5c is well suited for long range pole and tower multipoint applications, Access Point Collocation (GPS Sync) and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz).
Increased Capacity at Each Site
With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole
Network Scalability Perfected
Every deployed device is collaboratively synchronized across the network. This allows easy channel reuse to save valuable spectrum network wide. Connected to Mimosa Cloud, deployment of the A5c is incredibly simple with network spectrum use and performance optimized across all of your deployed devices.
Ultra High Client Capacity
TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.
Fiber Speeds
With client speeds capable of 500 Mbps+ and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.
Mimosa N5-360
- Part # 100-00037
Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
- Longer-range micropops
Double the coverage area with 60% longer reach for MicroPoP deployments, easily handling deployments to homes within 500 m in dense, last mile, suburban areas.
- Wide-frequency rage
The only antenna available for use between 4.9 to 6.4 GHz, delivering incredible spectrum flexibility.
- Optimized for 360º throughput
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.
- Beamforming Innovation
3 dB performance enhancement in a compact design, with all new quad-180º overlapping antenna polarizations that enable range-extending, beamforming technology.
Mimosa A5c
- Part # 100-00037
Performance
- Max Throughput: Up to 1.0 Gbps IP (1.7 Gbps PHY)
- Client Capacity: 100 Clients
- Wireless Protocols: WiFi Interop ; Mimosa GPS Sync (TDMA)**
Radio
- MIMO & Modulation: 4x4:4 MIMO OFDM up to 256-QAM
- Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
- Frequency Range: GPS Sync: 4900 - 6200 MHz ; WiFi Interop: 5170 - 5835 MHz restricted by country of operation(*new* US/FCC 5600-5650 support)
- Max Output Power: 30 dBm
- Sensitivity (MCS 0):-87 dBm @ 80 MHz ; -90 dBm @ 40 MHz ; -93 dBm @ 20 MHz
Power
- Max Power Consumption: 25W
- System Power Method: 802.3at compliant
- PoE Power Supply: Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
Features
- Gigabit Ethernet: 10/100/1000-BASE-T
- Multi-User MIMO**: Device leverages beamforming to transmit to multiple clients simultaneously
- Synchronization**: GPS+GLONASS allows for network-wide sync and interference avoidance
- Collocation**: 1PPS GPS Tx/Rx synchronization for same tower collocation and channel reuse
- Network Processing: Advanced AP control for capacity and subscriber management
- Management Services: Mimosa cloud monitoring and management SNMPv2** & Syslog legacy monitoring HTTPS, HTML 5 based Web UI, 2.4 GHz 802.11b/g/n radio for local management access
- Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact), Dynamic autooptimization of channel and bandwidth use
- Security: WPA2 + Mimosa 802.1x RADIUS Management VLAN support
- QoS: Supports 4 pre-configured QoS levels
- GPS Location: GNSS1 (GPS + GLONASS)
- Traffic Shaping: Per CPE UL/DL commit and maximum rate shaping
- Access Control List: Permit, Deny and Remark Layer 2 and Layer 3 traffic flows
* 4.9 GHz uses 20 MHz channel widths
** Enabled in future software releases
Mimosa N5-360
- Part # 100-00037
Antenna
- Gain: 15 dBi
- Frequency: 4.9 to 6.4 GHz
- Polarization: Dual H+V
- Azimuth Beamwidth: 360º via 4 overlapping 180º sectors
- Elevation Beamwidth (3 db): 8º
- Downtilt: 2º
- Cross-Polar Isolation: >40 dB
- Port-to-Port Isolation: >25 dB
- Impedance: 50 Ω
- Max Input Power: 30 dBm
Physical
- Dimensions:
- Height: 492 mm (19.37”) including connectors
- Width: 80 mm (3.15”)
- Weight: 1.11 kg (2.45 lbs)
- RF Connectors: 4 N-type female
- RF Connectors Position: Bottom of antenna
- Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
- Mounting: Dual-pole strap feed points integrated into painted metal base; Max pole diameter is 5.7 cm (2.25”)
- Wind Survivability: 200 km/h (125 mph)
- Wind Loading: 4.77 kg @ 160 km/h (10.49 lbs @ 100 mph)
Environmental
- Outdoor Ingress Protection Rating: IP67
- Operating Temperature: -40°C to +55°C (-40°F to 131°F)
- Operating Humidity: 5 to 100% condensing
- Operating Altitude: 4,420 m (14,500’) max
- Shock & Vibration: ETS 300-019-2-4 class 4M5 Regulatory and Compliance
- RoHS Compliance: Yes
