MODEL: N5-45x4

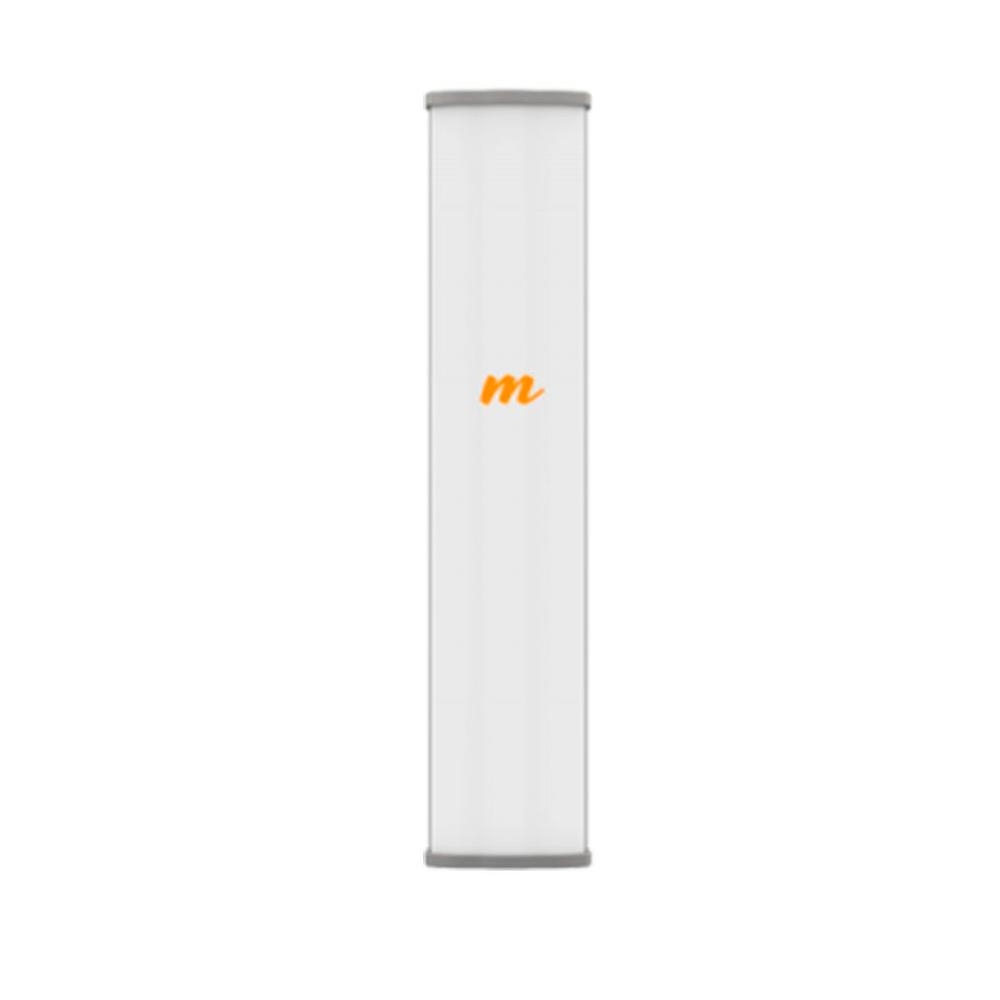

The Mimosa N5-45x4 Antenna is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband. The dual-slant polarization, 45º sector can be used with any third-party 2x2 MIMO radio solution, or two N5-45x4 antennas can be connected to the 4x4 MIMO Mimosa A5c access point, aimed in different directions, for 2x spectrum reuse, superior range and noise rejection at collocation and tower sites.

Reject noise and synchronize: Overcoming noise at tower sites is key to scaling capacity. The N5-45x4 delivers industry-leading side lobe rejection and an unprecedented 43 dB front-to-back (FTB) performance — the highest FTB ratio of any sector or horn antenna in the industry.

Wideband operation: Supporting 4.9 GHz public safety applications and multipoint licensed operation up to 6.4 GHz, where regulations allow, the N5-45x4 provides an additional 800 MHz of spectrum beyond the crowded 5.15 – 5.85 GHz unlicensed channels

Go the distance: The Mimosa N5-45x4 offers the best of both worlds— a long-distance, high-gain sector with the superior noise isolation of a horn. Competitive sectors offer high gain but fail to reduce side-lobe and front-to-back noise. Symmetric horn antennas achieve good noise isolation but typically offer lower gain and inefficient symmetrical ground coverage patterns.

Compatible with third-party radios: Blending the best of sector antennas with the best features of a horn, the Mimosa N5-45x4 is a great sector antenna choice to use with any 2x2 MIMO radio.
