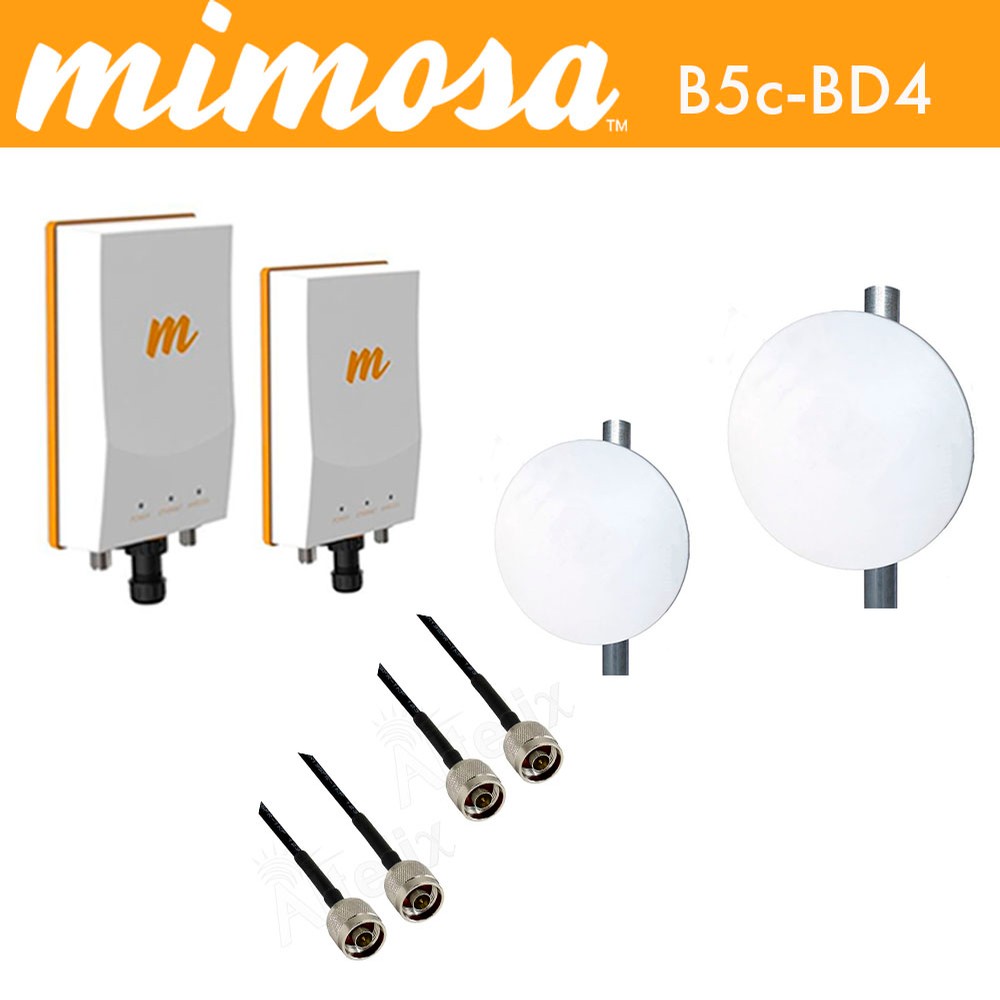

The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution, allowing virtually any antenna to be used for long distance Point to Point backhaul.
The B5c is ideal for long range relay and tower links and custom engineered collocation. It is also suitable for
licensed Public Safety operation on 4.9 GHz spectrum.
Carrier-grade IP67 design allows the B5c to withstand the harshest of environmental conditions
Tames unlicensed spectrum interference via custom engineered multi-channel and auto-everything technology. As good as two smart links in one radio
Incredibly Fast. Incredibly Flexible.
Recognized as the fastest unlicensed backhaul in the industry. Extensive bandwidth control options, low latency, reserved bandwidth and GPS sync mode mean peak performance.
Easily Add New Links
The B5c is spectrum friendly. Unique high precision GPS Sync technology reuses the same channel network wide. Keep adding more capacity to more sites and waste less spectrum.
Monitor with Ease
Assessing link health and identifying potential problems has never been easier. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.
The Dish Antenna
This is a Complete High Gain Antenna that features our Light Weight 25dBi Dual Polarized 2x2 Mimo Parabolic Dish Antenna. The versatile adjustable feed system allows the antenna to be configured for Dual Polarization (Horizontal and Vertical) or for X-Polarization (+45° and -45°). It is a perfect match for 802.11a MIMO access points and bridges.
The Dish Antenna
Frequency Range: 4900-6400 MHz
Bandwidth: 1500 MHz
Gain: 23 dBi
Polarization: Vertical & Horizontal or X-Pol (+45° & -45°)
Vertical Beamwidth: 7.7 Degrees
Horizontal Beamwidth: 9.8 Degrees
F/B Ratio: ≥32dB
Impedance: 50 Ohm
Maximum Power: 100 Watts
Antenna Connectors: Integral N Female (x2)
Dimensions: ∅14.9 x 10.5 Inches (∅380 x 267 mm)
Mast Diameter: 1.2 - 2.2 Inches (30 - 55 mm)
Weight: 5.8 Lbs. (2.6 Kg)
Temperature Range: -40° - 185°F (-40° - 85°C)
Lightning Protection: DC Short
Wind Loading Data
Wind Speed (MPH) Loading
100 79 Ibs
125 123 Ibs
Packaging Dimensions: 16.2 x 16.2 x 10 Inches
(411.5 x 411.5 x 254 mm)
Packaging Weight: 7.43 lbs (3.4 kg)
