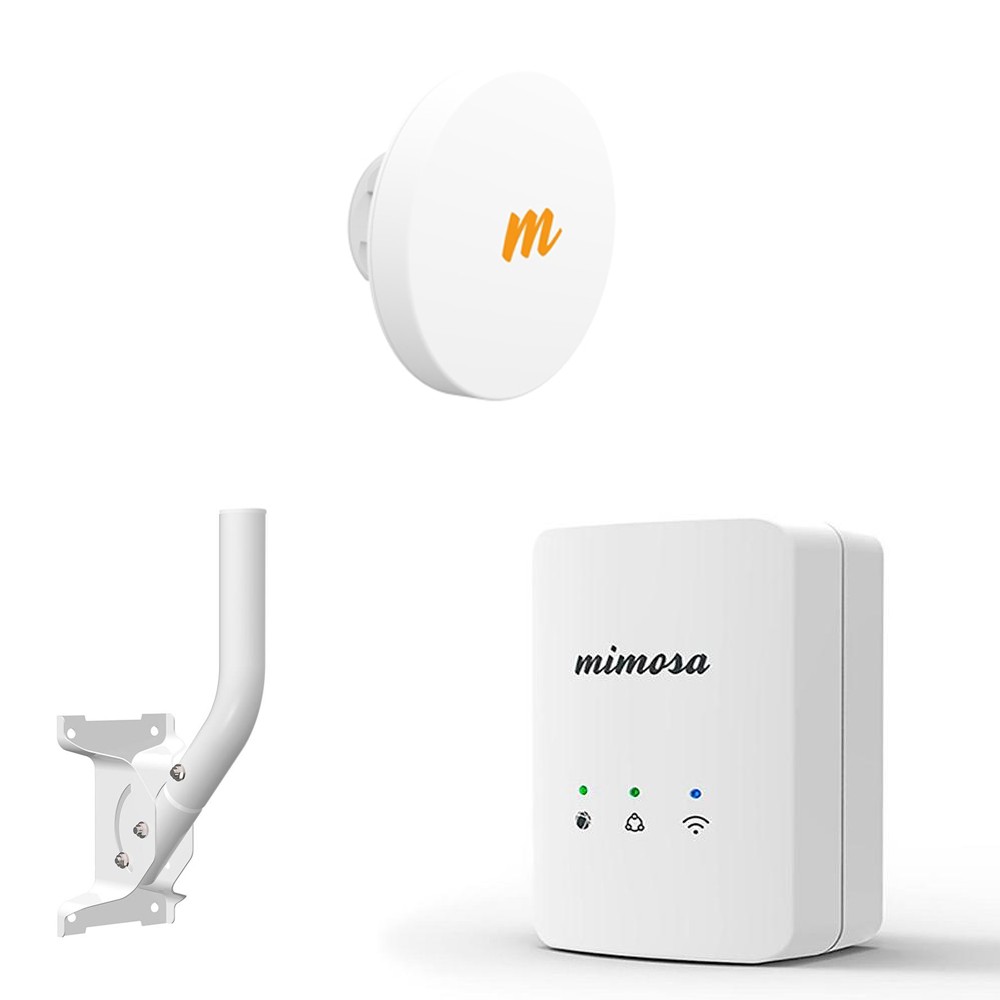

Mimosa C5 Client Device 5Ghz Gigabit CPE + G2 PoE 48v MIMO 16 dBm + J-Mount support for C5


Mimosa Network
Mimosa Networks C5-integrated Client Device 5Ghz Gigabit CPE Fiber Speeds to the Home 500+ Mbps (866Mbps PHY) 20dBi up to 10+ km + G2 PoE 48v, NA, 2x2:2 MIMO 16 dBm + J-Mount support for C5

Model#: C5-BD7

Sku: IT2680.5219.139869

MSRP: $269.95

Out of stock

Your Price: $269.95

Mimosa C5

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.

Mimosa G2-48V

The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into a wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.

Plug ‘n Play
Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2
to easily extend Wi-Fi coverage

Fully Integrated Router
Designed to include everything required to run the subscriber’s network in a small and unobtrusive product. Includes a NAT router, stateful packet inspection firewall, port forwarding and static routes.

Intelligent Spectrum Management
Success in the 2.4 GHz spectrum requires intelligent spectrum management to stay on the cleanest channel. The G2 selects the best channel on startup and uses an ongoing auto channel algorithm to alert and change channels if performance suffers due to interference.

Mimosa J-Mount

The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.



  • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
  • Wireless Protocols: WiFi Interop, Mimosa GPS Sync (TDMA)**
  • Modes: Client Mode only

Radio Hardware

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
  • Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
  • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
  • Max Output Power: 20 dBm
  • Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz ; -90 dBm @ 40 MHz ; -93 dBm @ 20 MHz


  • Gain: 20 dBi
  • Beamwidth ( 3 dB ): 14° (azimuth and elevation)
  • Cross-Polar isolation: >20 dB
  • Polarization: Dual 45° slant polarization


  • Max Power Consumption: 7W
  • System Power Method:Passive PoE



  • Max Throughput: 300 Mbps PHY
  • Client Capacity: 100
  • Wireless Protocols: 802.11n
  • Modes:
    • Router + WiFi
    • Wireless Range Extender (repeater)
    • Wired WiFi Extension (AP mode)
    • PoE Passthrough


  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 64-QAM
  • Bandwidth: 20/40 MHz channels
  • Frequency Range: 2400 - 2484 MHz restricted by country of operation
  • Max Output Power: 16 dBm
  • Sensitivity ( MCS 0 ):
    • -84 dBm @ 40 MHz
    • -88 dBm @ 20 MHz


  • Type: Internal
  • Pattern: Omni


  • Max Power Consumption: 14W
  • System Power Method: Wall Plug-in
  • Input Power:
    • 100-240VAC 0.6A 50-60 Hz
    • Over Current & Voltage Protection
  • Output Power: 48V 210mA

Advanced J-Mount

  • Weight: 0.96 kg (33.8 oz)
  • Mounting Base: 191 mm (7.52“) x 120 mm (4.72“)
  • Pole Length: 355 mm (14“)
  • Pole Outside Diameter: 38 mm (1.5“)
  • Mounting Options: Surface mount with four screw hole points
  • Assembly:
    • Pre-assembled with a white powder coated finish.
    • Includes four (4) 6.35 mm (0.25”) lag bolts.
    • Pipe/hose clamps not included.
