C5-BD5

Mimosa Network

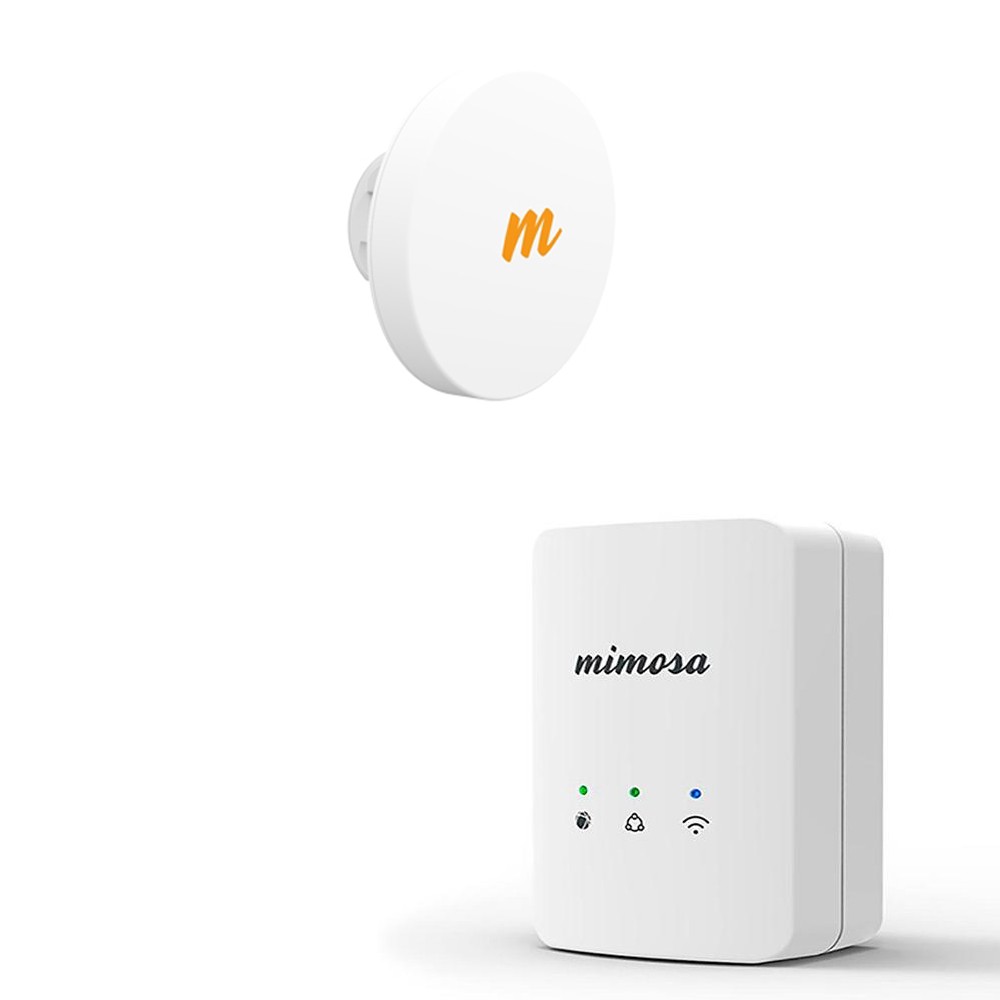

Mimosa C5 Client Device 5Ghz Gigabit CPE Fiber Speeds + G2 PoE 48v, 2x2:2 MIMO 16 dBm


Model#: C5-BD5

Sku: IT2678

Out of stock

MIMOSA C5

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.

Multi-User MIMO
Multiple clients on the same access point are coordinated to simultaneously share spectrum “spatially” via unique antenna beamforming.

TDMA GPS Sync Client
Upstream bandwidth and latencies are allocated on demand, enabling significantly higher overall upstream network bandwidth allocation.

Rugged and Affordable
Protection from harsh environments now comes at an affordable price. The C5 includes sealing gel and a unique cable protector that easily accommodates unterminated or pre-terminated RJ-45 cable connectors.

Fiber Speeds to the Home
The C5 client device delivers the speed businesses and consumers need at a fraction of the cost of fiber to the premise.

Compact and Powerful
Delivers incredible range with cutting-edge dual 45° slant polarization design and aperture efficiency of greater than 50%, all in the smallest design possible.


MIMOSA G2-48V


The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into a wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.

Plug ‘n Play
Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2
to easily extend Wi-Fi coverage

Fully Integrated Router
Designed to include everything required to run the subscriber’s network in a small and unobtrusive product. Includes a NAT router, stateful packet inspection firewall, port forwarding and static routes.

Intelligent Spectrum Management
Success in the 2.4 GHz spectrum requires intelligent spectrum management to stay on the cleanest channel. The G2 selects the best channel on startup and uses an ongoing auto channel algorithm to alert and change channels if performance suffers due to interference.


MIMOSA C5

Performance

  • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
  • Wireless Protocols: WiFi Interop, Mimosa GPS Sync (TDMA)**
  • Modes: Client Mode only

Radio Hardware

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
  • Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
  • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
  • Max Output Power: 20 dBm
  • Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz ; -90 dBm @ 40 MHz ; -93 dBm @ 20 MHz

Antenna

  • Gain: 20 dBi
  • Beamwidth ( 3 dB ): 14° (azimuth and elevation)
  • Cross-Polar isolation: >20 dB
  • Polarization: Dual 45° slant polarization

Power

  • Max Power Consumption: 7W
  • System Power Method:Passive PoE

G2-48V

Performance

  • Max Throughput: 300 Mbps PHY
  • Client Capacity: 100
  • Wireless Protocols: 802.11n
  • Modes:
    • Router + WiFi
    • Wireless Range Extender (repeater)
    • Wired WiFi Extension (AP mode)
    • PoE Passthrough

Radio

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 64-QAM
  • Bandwidth: 20/40 MHz channels
  • Frequency Range: 2400 - 2484 MHz restricted by country of operation
  • Max Output Power: 16 dBm
  • Sensitivity ( MCS 0 ):
    • -84 dBm @ 40 MHz
    • -88 dBm @ 20 MHz

Antenna

  • • Type: Internal
  • • Pattern: Omni

Power

  • Max Power Consumption: 14W
  • System Power Method: Wall Plug-in
  • Input Power:
    • 100-240VAC 0.6A 50-60 Hz
    • Over Current & Voltage Protection
  • Output Power: 48V 210mA
