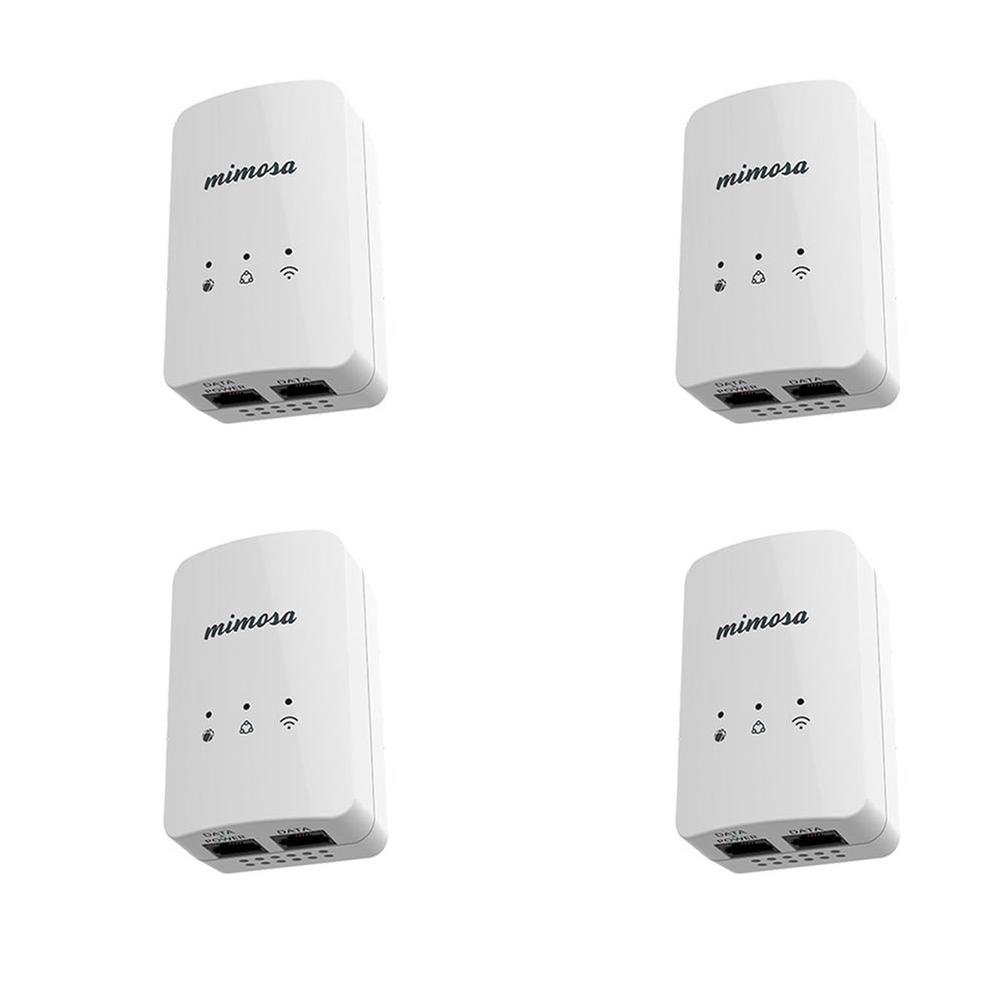

Mimosa G2 PoE 48v wall plug, 802.11n 2x2:2 MIMO 16 dBm 300 Mbps PHY 4-UNITS (100-00034)

G2-48V-4PK

Mimosa Network
Mimosa G2 PoE 48v wall plug, 802.11n 2x2:2 MIMO 16 dBm, 300 Mbps PHY 4-UNITS (100-00034)

Model#: G2-48V-4PK

Sku: IT2677.5216.139632



MSRP: $236.00

Out of stock

Your Price: $236.00


The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into a wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.

Plug ‘n Play
Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2
to easily extend Wi-Fi coverage

Fully Integrated Router
Designed to include everything required to run the subscriber’s network in a small and unobtrusive product. Includes a NAT router, stateful packet inspection firewall, port forwarding and static routes.

Intelligent Spectrum Management
Success in the 2.4 GHz spectrum requires intelligent spectrum management to stay on the cleanest channel. The G2 selects the best channel on startup and uses an ongoing auto channel algorithm to alert and change channels if performance suffers due to interference.

Performance

  • Max Throughput: 300 Mbps PHY
  • Client Capacity: 100
  • Wireless Protocols: 802.11n
  • Modes:
    • Router + WiFi
    • Wireless Range Extender (repeater)
    • Wired WiFi Extension (AP mode)
    • PoE Passthrough

Radio

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 64-QAM
  • Bandwidth: 20/40 MHz channels
  • Frequency Range: 2400 - 2484 MHz restricted by country of operation
  • Max Output Power: 16 dBm
  • Sensitivity ( MCS 0 ):
    • -84 dBm @ 40 MHz
    • -88 dBm @ 20 MHz

Antenna

  • Type: Internal
  • Pattern: Omni

Power

  • Max Power Consumption: 14W
  • System Power Method: Wall Plug-in
  • Input Power:
    • 100-240VAC 0.6A 50-60 Hz
    • Over Current & Voltage Protection
  • Output Power: 48V 210mA
