G2-48V

Mimosa Network


Mimosa G2 PoE 48v wall plug, 2x2:2 MIMO 802.11n 2x2:2 MIMO 16 dBm, 300 Mbps PHY (100-00034)



Product Highlights

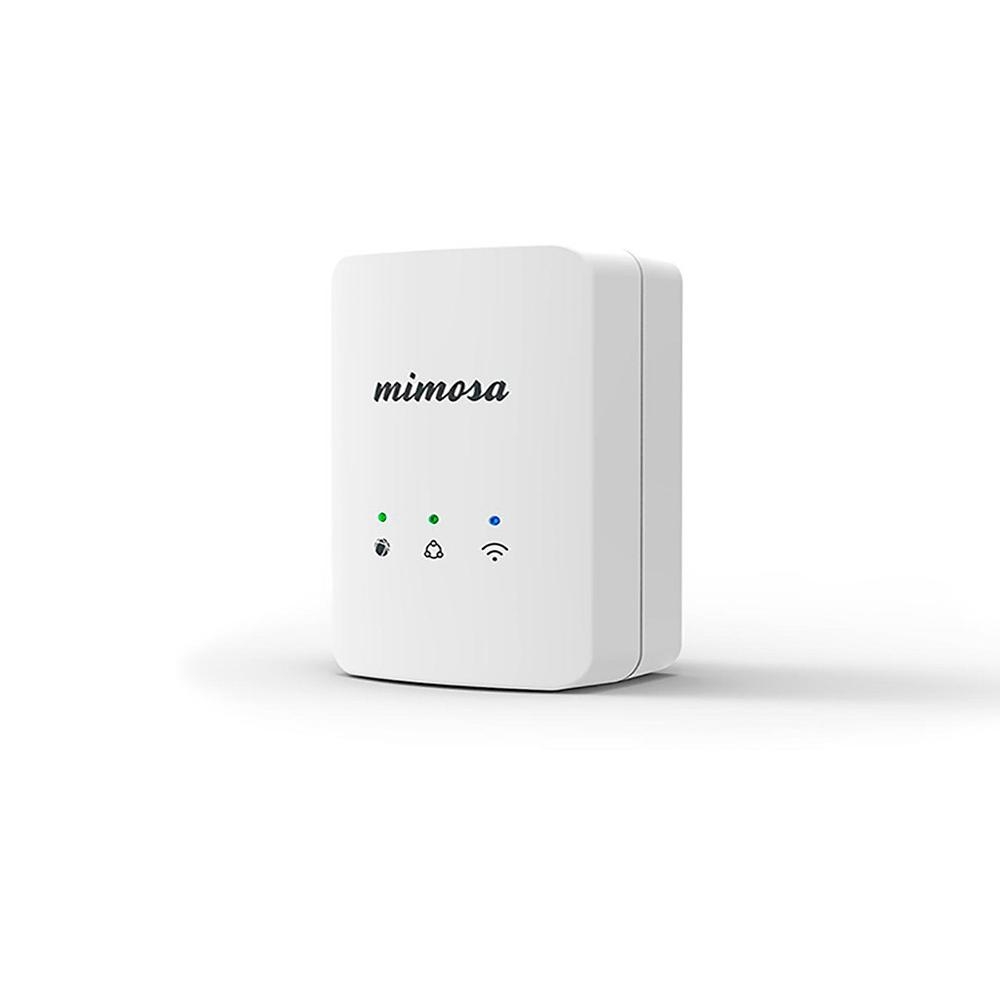

  • The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery.
  • Designed to easily install directly into a wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices.
  • Offering superior indoor Wi-Fi range, the cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.
  • Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2 to easily extend Wi-Fi coverage
  • Success in the 2.4 GHz spectrum requires intelligent spectrum management to stay on the cleanest channel.
  • Model#: G2-48V

    Sku: IT2676



    MSRP: $59.00


    Out of stock

    Your Price: $59.00


    Mimosa G2-48V

    Part # 100-00034

    The Mimosa G2 Gateway is an elegant and compact Wi-Fi Gateway that simplifies in-home managed broadband delivery. Designed to easily install directly into a wall plug, the Mimosa G2 also provides integrated Power over Ethernet for powering Mimosa C5 client premise devices. Offering superior indoor Wi-Fi range, the cloud-managed Mimosa G2 is designed to extend the managed broadband infrastructure all the way to the subscriber’s mobile and fixed Wi-Fi devices.

    Plug ‘n Play
    Most homes have hard-to-reach Wi-Fi spots. Easily fill coverage holes by adding additional Mimosa G2 Gateways; auto-setup quickly pairs with the master G2
    to easily extend Wi-Fi coverage



    Fully Integrated Router
    Designed to include everything required to run the subscriber’s network in a small and unobtrusive product. Includes a NAT router, stateful packet inspection firewall, port forwarding and static routes.

    Intelligent Spectrum Management
    Success in the 2.4 GHz spectrum requires intelligent spectrum management to stay on the cleanest channel. The G2 selects the best channel on startup and uses an ongoing auto channel algorithm to alert and change channels if performance suffers due to interference.

    Secure Guest Networks
    Privacy is imperative - and the G2 offers an entirely separate, secured wireless network to protect consumers’ private networks. Up to four wireless networks can be configured.

    Performance

    • Max Throughput: 300 Mbps PHY
    • Client Capacity: 100
    • Wireless Protocols: 802.11n
    • Modes:
      • Router + WiFi
      • Wireless Range Extender (repeater)
      • Wired WiFi Extension (AP mode)
      • PoE Passthrough

    Radio

    • MIMO & Modulation: 2x2:2 MIMO OFDM up to 64-QAM
    • Bandwidth: 20/40 MHz channels
    • Frequency Range: 2400 - 2484 MHz restricted by country of operation
    • Max Output Power: 16 dBm
    • Sensitivity ( MCS 0 ):
      • -84 dBm @ 40 MHz
      • -88 dBm @ 20 MHz

    Antenna

    • Type: Internal
    • Pattern: Omni

    Power

    • Max Power Consumption: 14W
    • System Power Method: Wall Plug-in
    • Input Power:
      • 100-240VAC 0.6A 50-60 Hz
      • Over Current & Voltage Protection
    • Output Power: 48V 210mA
