Mimosa Network

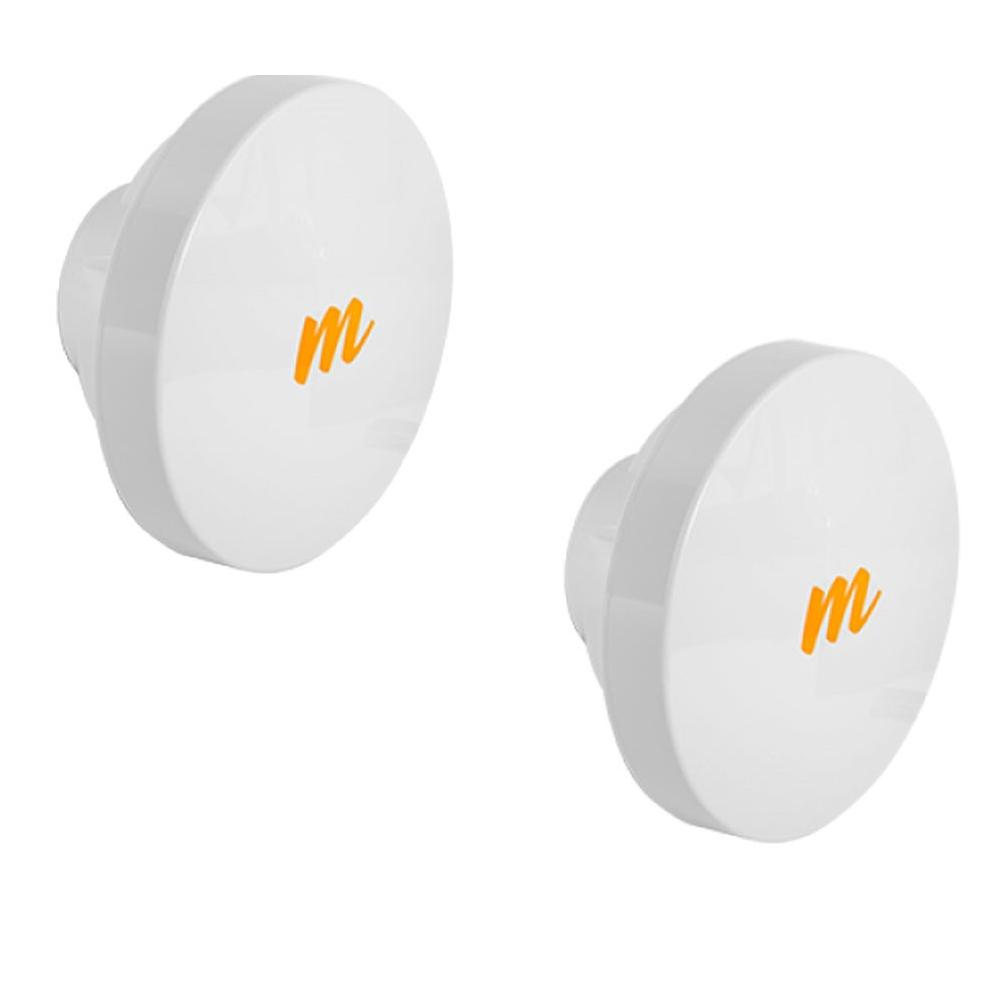

Mimosa C5 Client Device 5Ghz Gigabit CPE Fiber Speeds to the Home 500+ Mbps (2-UNITS)

Model#: C5-2PK

Sku: IT2674

MSRP: $339.95

Out of stock

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.

Multi-User MIMO
Multiple clients on the same access point are coordinated to simultaneously share spectrum “spatially” via unique antenna beamforming.

TDMA GPS Sync Client
Upstream bandwidth and latencies are allocated on demand, enabling significantly higher overall upstream network bandwidth allocation.

Rugged and Affordable
Protection from harsh environments now comes at an affordable price. The C5 includes sealing gel and a unique cable protector that easily accommodates unterminated or pre-terminated RJ-45 cable connectors.

Fiber Speeds to the Home
The C5 client device delivers the speed businesses and consumers need at a fraction of the cost of fiber to the premise.

Compact and Powerful
Delivers incredible range with cutting-edge dual 45° slant polarization design and aperture efficiency of greater than 50%, all in the smallest design possible.


  • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
  • Wireless Protocols: WiFi Interop, Mimosa GPS Sync (TDMA)**
  • Modes: Client Mode only

Radio Hardware

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
  • Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
  • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
  • Max Output Power: 20 dBm
  • Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz ; -90 dBm @ 40 MHz ; -93 dBm @ 20 MHz


  • Gain: 20 dBi
  • Beamwidth ( 3 dB ): 14° (azimuth and elevation)
  • Cross-Polar isolation: >20 dB
  • Polarization: Dual 45° slant polarization


  • Max Power Consumption: 7W
  • System Power Method:Passive PoE
  • PoE Power Supply:Passive POE compliant, 48-56 V Power over Ethernet supply (sold separately)
