C5-BD2

Mimosa Network

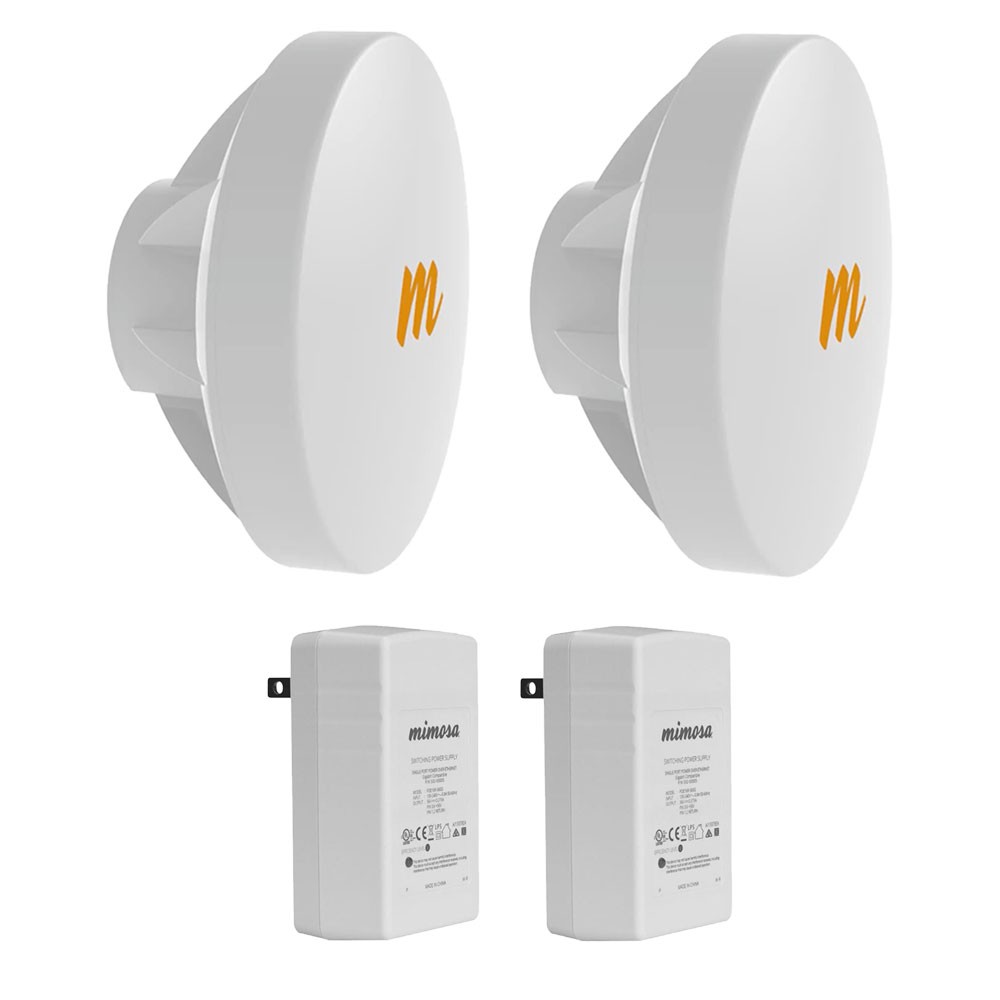

Mimosa C5 Client Device 5Ghz Gigabit CPE 500+ Mbps 2-PACK + Mimosa PoE-56V Gigabit 2-PACK


Model#: C5-BD2

Sku: IT2673

Out of stock

Mimosa C5

The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution. Incorporating unique Multi-User MIMO technology, and TDMA client technology for the Mimosa GPS sync enabled network, the C5 enables the fastest speeds and most scalable wireless access solution available today.

Mimosa PoE-56V

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords.
Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

Mimosa C5

Performance

  • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
  • Wireless Protocols: WiFi Interop, Mimosa GPS Sync (TDMA)**
  • Modes: Client Mode only

Radio Hardware

  • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
  • Bandwidth*: 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
  • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
  • Max Output Power: 20 dBm
  • Sensitivity ( MCS 0 ): -87 dBm @ 80 MHz ; -90 dBm @ 40 MHz ; -93 dBm @ 20 MHz

Antenna

  • Gain: 20 dBi
  • Beamwidth ( 3 dB ): 14° (azimuth and elevation)
  • Cross-Polar isolation: >20 dB
  • Polarization: Dual 45° slant polarization

Power

  • Max Power Consumption: 7W
  • System Power Method:Passive PoE

Mimosa PoE-56V

  • Data Transfer Rate: Gigabit rated
  • Connectors: Two (2) RJ-45
  • LEDs:Power Indicator
  • Input Voltage: 100-240V ~ 0.8A 50-60 Hz
  • Output Voltage:
    • 56V===0.275A
    • PIN 3,6 +56V
    • PIN 1,2 RETURN
  • AC Plug Types
    • Americas: Type A
    • EU: Type C
    • UK: Type G
    • AU/NZ: Type 1 -2 pin insulated
  • Dimensions: 51 mm (2.0”) x 86 mm (3.4“) x 33 mm (1.3“)
  • Weight: 0.11 kg (3.8 oz)
  • Operating Temperature:-40 to +55 C
  • Compliance and Safety:UL60950-1, IEC 60950-1, EN 55022, RoHS
