J-Mount

Mimosa Network


Mimosa Advanced J-Mount support for C5 (100-00043)


Model#: J-Mount

Sku: IT2671



MSRP: $15.00


Out of stock

 J-Mount

  • Part # 100-00043

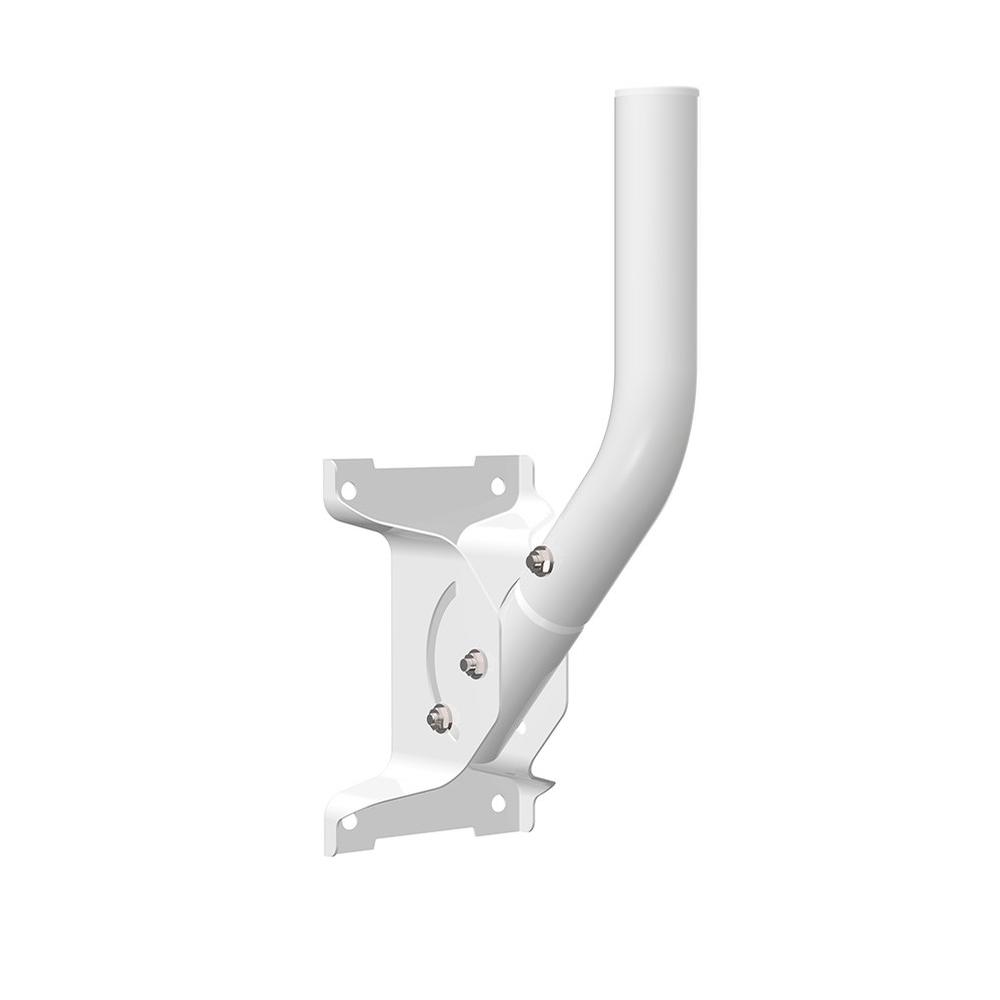

The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.



Advanced J-Mount

  • Weight:
    • 0.96 kg (33.8 oz)
  • Mounting Base:
    • 191 mm (7.52“) x 120 mm (4.72“)
  • Pole Length:
    • 355 mm (14“)
  • Pole Outside Diameter:
    • 38 mm (1.5“)
  • Mounting Options:
    • Surface mount with four screw hole points
  • Assembly:
    • Pre-assembled with a white powder coated finish.
    • Includes four (4) 6.35 mm (0.25”) lag bolts.
    • Pipe/hose clamps not included.
