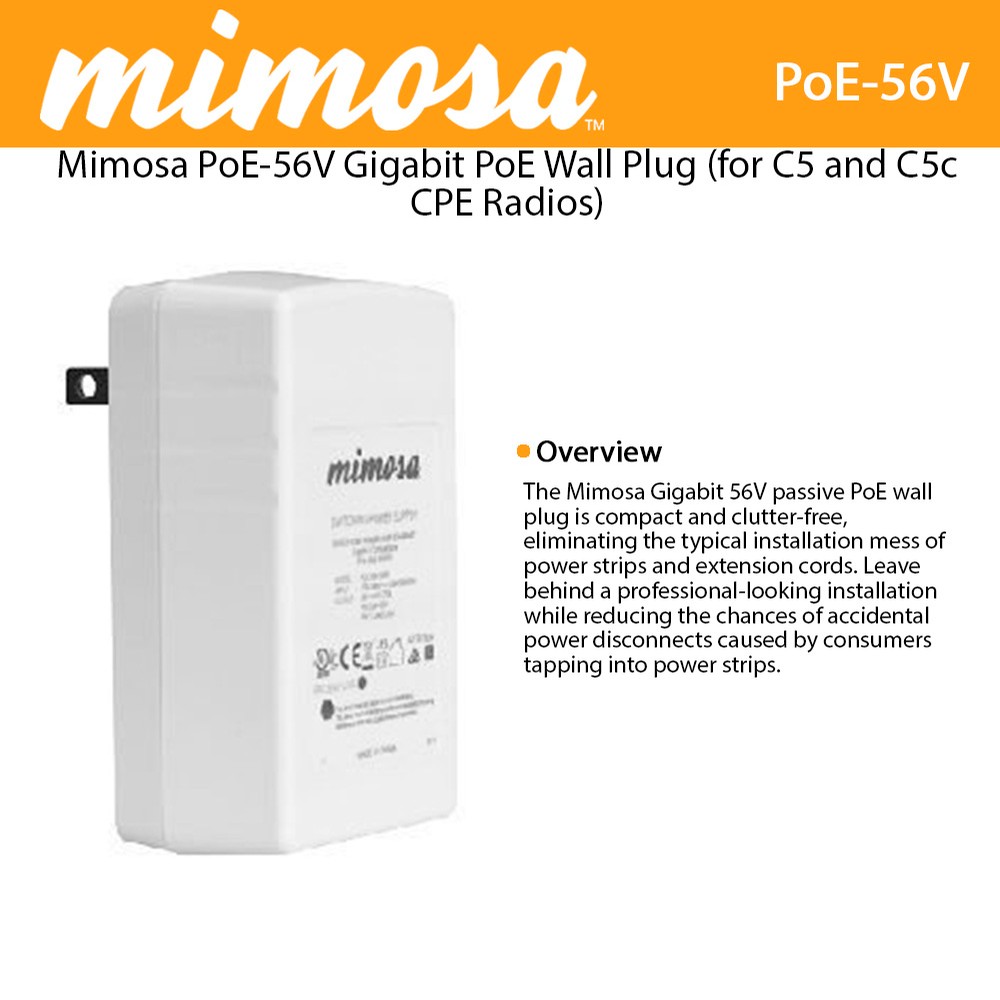

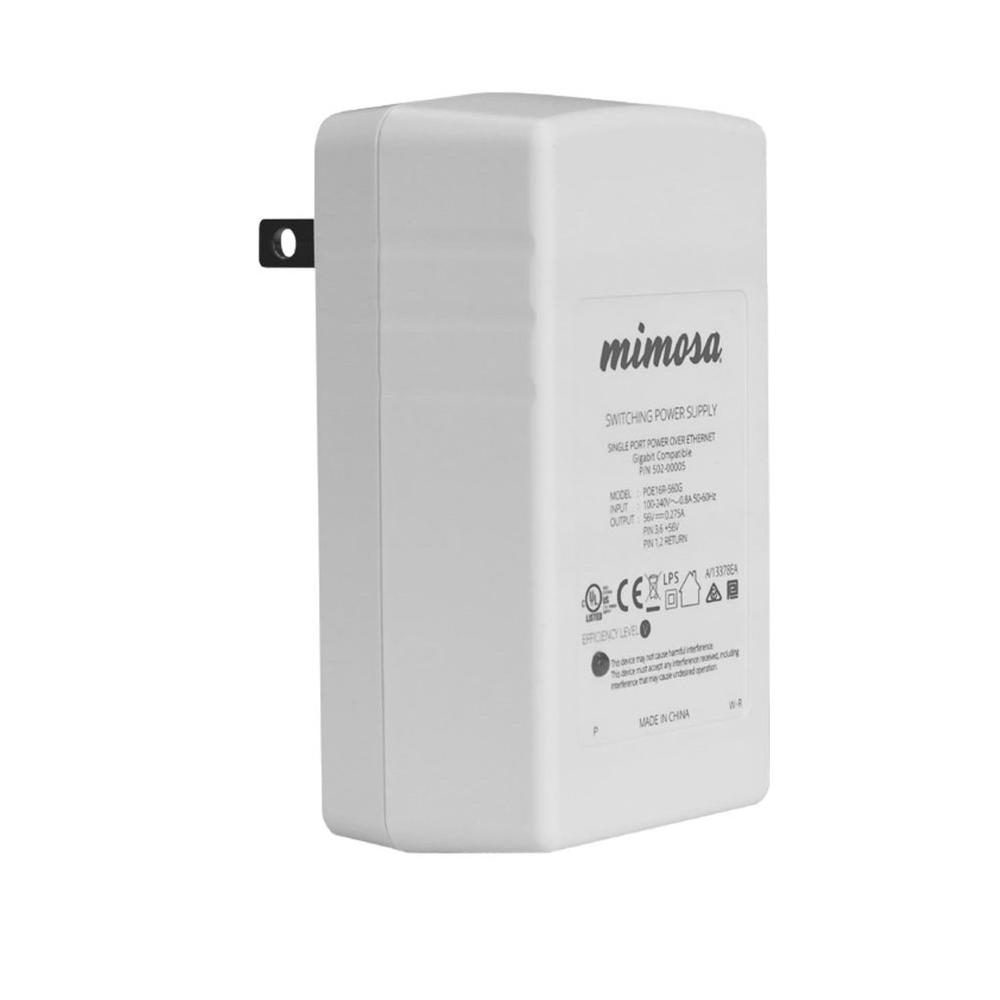

Mimosa PoE-56V Gigabit PoE Wall Plug (for C5 and C5c CPE Radios)

PoE-56V

Mimosa Network
Mimosa PoE-56V Gigabit PoE Wall Plug (for C5 and C5c CPE Radios) Input Voltage 100-240V ~ 0.8A, 50-60 Hz

Model#: PoE-56V

Sku: IT2670.5130.136971



MSRP: $65.00

Out of stock

Your Price: $65.00


Power Without the Mess

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords.
Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

Gigabit PoE Wall Plug (for C5 and C5c CPE Radios)

  • Data Transfer Rate:
    • Gigabit rated
  • Connectors:
    • Two (2) RJ-45
  • LEDs:
    • Power Indicator
  • Input Voltage:
    • 100-240V ~ 0.8A 50-60 Hz
  • Output Voltage:
    • 56V===0.275A
    • PIN 3,6 +56V
    • PIN 1,2 RETURN
  • AC Plug Types
    • Americas: Type A
    • EU: Type C
    • UK: Type G
    • AU/NZ: Type 1 -2 pin insulated
  • Dimensions:
    • 51 mm (2.0”) x 86 mm (3.4“) x 33 mm (1.3“)
  • Weight:
    • 0.11 kg (3.8 oz)
  • Operating Temperature:
    • -40 to +55 C
  • Compliance and Safety:
    • UL60950-1, IEC 60950-1, EN 55022, RoHS
