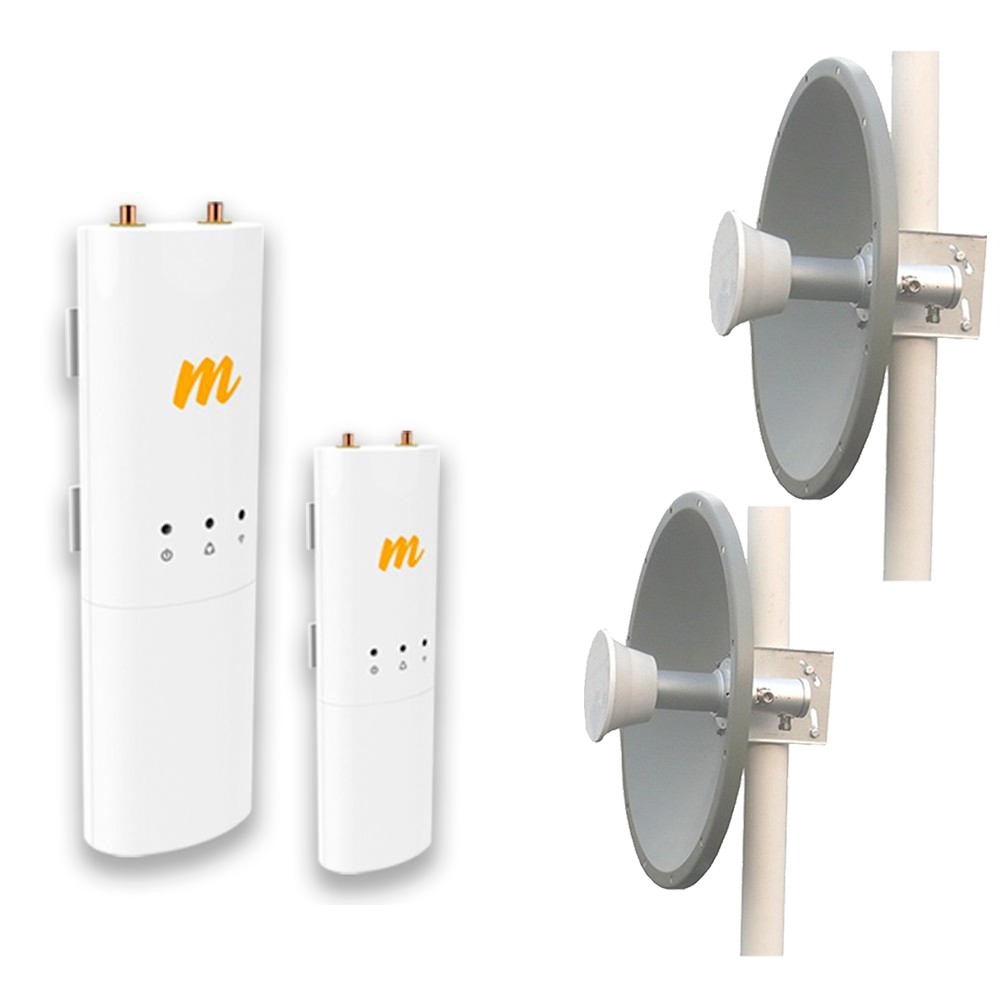

Mimosa C5C Long Range Point to Point 5GHz 500+ Mbps 2-Units with 2 Dish Antennas 23dBi 5GHz

C5C-BD6

Mimosa Network
Mimosa C5C 2-UNITS Long Range Point to Point Link 5GHz 500+ Mbps pair with 2 25dBi 4.9GHz to 6.5GHz 5GHz MIMO Dish Antenna, ideal for long range relay and tower links, also suitable for licensed Public Safety operation on 4.9GHz spectrum.


Product Highlights
  • The Mimosa C5c is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. C5c is ideal for professionally-installed rural fixed wireless and long range applications for point-to-point backhaul links.
  • Connect to virtually any dual polarization antenna to Custom engineer longer distance client links.
  • The C5c provides extreme price/ performance for PTP backhaul links in a small form factor
  • It is a Complete High Gain Antenna Kit 2-Pack that features our Radome Enclosed 23dB Dual Polarized 2x2 MIMO Parabolic Dish Antenna.
  • It is a perfect match for 802.11a MIMO access points and bridges. It also supports the new 6.2 GHz and 6.4 GHz radios now available.
  • Model#: C5C-BD6

    Sku: IT2668.4957.132252



    MSRP: $468.99

    In Stock

    Your Price: $299.95




    C5C


    The Mimosa C5c is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. Incorporating unique Multi-User MIMO technology and support for Mimosa’s SRS technology, the C5c enables the fastest speeds and is the most scalable wireless access solution available today. The C5c isideal for professionally-installed rural fixed wireless and long range applications for point-to-point backhaul links.

    Flexible Antenna Options
    Connect to virtually any dual polarization antenna to Custom engineer longer distance client links. The C5c Has dual RP-SMA connectors for easy cabled antenna Connectivity. It can be mounted to any pole via hose Clamps or easily clipped onto antennas supporting Compatible clip-on mounting bracket systems.

    PTP Backhaul Links
    The C5c provides extreme price/ performance for PTP backhaul links in a small form factor. Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands. Where regulations allow, long distances are enabled with high system power and flexible antenna options.

    SRS Client
    The C5c offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth.As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

    The Dish AntennaI

    It is a Complete High Gain Antenna Kit 2-Pack that features our Radome Enclosed 23dB Dual Polarized 2x2 MIMO Parabolic Dish Antenna. The versatile adjustable feed system allows the antenna to be configured for Dual Polarization (Horizontal and Vertical) or for X-Polarization (+45° and -45°). It is a perfect match for 802.11a MIMO access points and bridges. It also supports the new 6.2 GHz and 6.4 GHz radios now available.

    C5C

    • Performance
    • Max Throughput: 500+ Mbps IP (866 Mbps PHY)
    • Wireless Protocols:
      • WiFi Interop
      • Mimosa SRS
    • Modes:
      • -PTMP Client
      • -PTP Backhaul

    Radio

    • MIMO & Modulation: 2x2:2 MIMO OFDM up to 256-QAM
    • Bandwidth*: 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop
    • Frequency Range:
      • -PTMP: 4900 - 6200 MHz
      • -PTP: 4900 - 6400 MHz
    • Restricted by country of operation ‘new’ US/FCC 5600-5650 MHz support
    • FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
    • Max Output Power: 27 dBm
    • Sensitivity ( MCS 0 ):
      • 87 dBm @ 80 MHz
      • 90 dBm @ 40 MHz
      • 93 dBm @ 20 MHz

    Power

    • Max Power Consumption: 12.9 W
    • System Power Method: Passive PoE (24-56VDC)
    • PoE Power Supply:
      • Passive PoE compliant, 48-56 V Power over
      • Ethernet supply (included)

    Physical

    • Dimensions:
      • Depth - 44.0 mm (1.73”)
      • Width - 65 mm (2.56”)
      • Height - 188.4 mm (7.42”)



    ANTENNA

    • ANT4958D25P-DP Frequency Range 5150-5850 MHz
    • Bandwidth    700 MHz
    • Gain    23 dBi
    • Polarization    Vertical + Horizontal
    • Vertical Beamwidth    3 Degrees
    • Horizontal Beamwidth    4 Degrees
    • F/B Ratio    ≥32dB
    • Isolation    ≥28dB
    • VSWR    <1.6:1
    • Impedance    50 Ohm
    • Maximum Power    100 Watts
    • Standard Connector    Dual Type N Female
    • Dimensions    ∅14.5 x 13.8 Inches (∅368 x 350 mm)
    • Mast Diameter    1.6 - 2.8 Inches (40 - 70 mm)
    • Weight    4.1 Lbs. (1.86 Kg)
    • Temperature Range    -40° - 185°F (-40° - 85°C)
    • Lightning Protection    DC Short
