B11

Mimosa Network

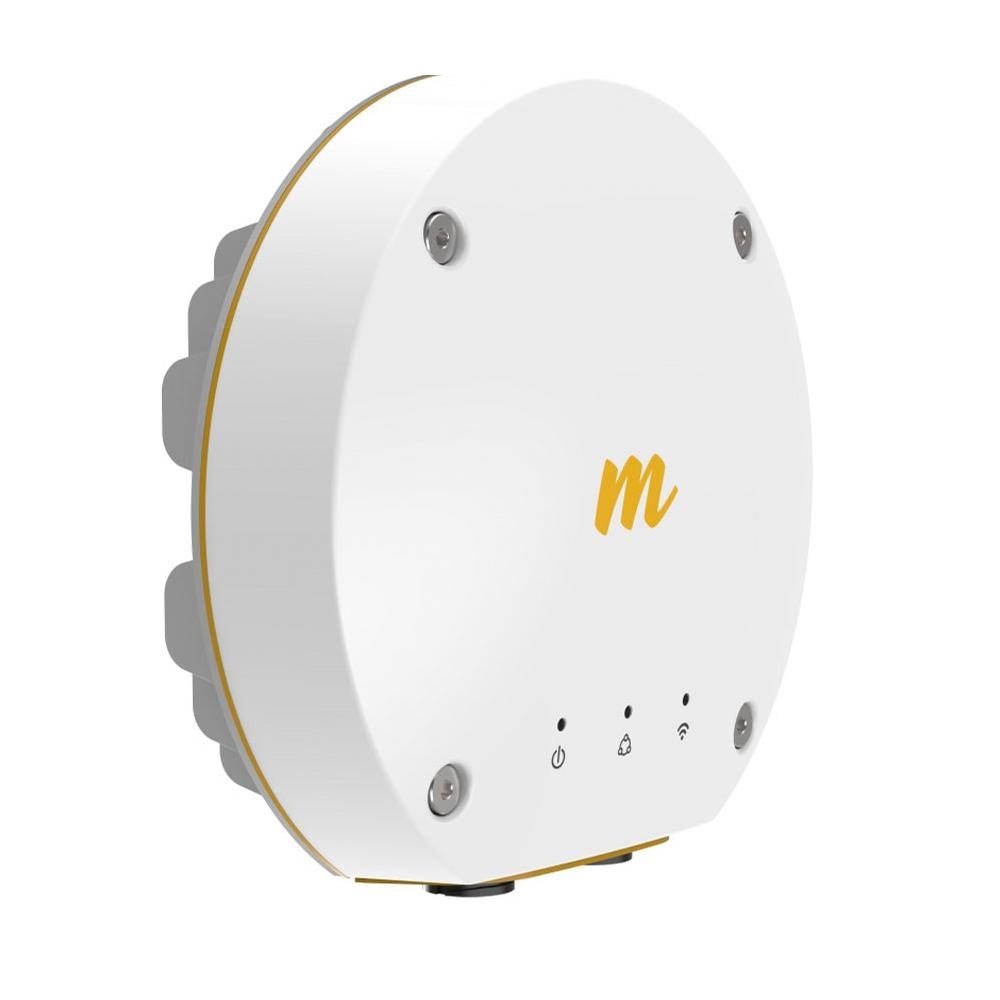

Mimosa B11 10.0-11.7 GHz Gigabit Backhaul, up to 1.5Gbps Aggregate


Model#: B11

Sku: IT2665



MSRP: $1,799.00


Out of stock

Your Price: $1,799.00


Model: B11

Includes PoE Injector 56V

MFG # 100-00036

The Mimosa B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements. The B11 is fiber-ready - simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you are not quite ready for fiber, the B11 also comes with a standard Gigabit Power-over-Ethernet connection.

Mimosa simplified the licensing process and offer instant visibility into the FCC ULS database to quickly assess surrounding links, providing an early indication of coordination viability. A single B11 can support an entire 10.7 - 11.7 GHz band, maximizing your ability to find a clear, licensable channel.

With up to 1.5 Gbps aggregate speed and under 1 ms latency, high performance has never been this affordable. The B11 has the lowest cost per Mpbs in the industry with link distances over 100km.

Carrier grade IP67 design allows the B11 to withstand the harshest of environmental conditions.

SPECIFICATIONS

Specifications B11

Performance

Max Throughput Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
Low Latency 2+ ms
Wireless Protocols TDMA, TDMA-FD

Radio

MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM
Bandwidth Single or Dual 20/40/80 MHz channels
Frequency Range 10000-11700 MHz restricted by country of operation
Max Output Power 20 dBm (2-stream), 27 dBm (4-stream)
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz

Power

Max Powe Consumptionr 30W
System Power Method 48 V DC 802.3 at compliant power injectors
System Lightning & ESD Protection 6 Kv
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply with IEC6

Physical

Dimensions Height: 260 mm (10.2") Width: 158 mm (9.6") Depth: 70 mm (2.8")
Weight 2 kg (4.5 lbs)
Enclosure Characteristics Outdoor UV stabilized plastic Aluminum mounting panel
Wind Survivability 200 km/h (125 mph)
Wind Loading 9.89 Kg @ 160 km/h (21.8 lbs @ 100 mph)
Mounting Circular Waveguide fed mounting bracket direct into antenna Optional Data Connector SFP Cage

Environmental

Outdoor Ingress Protection Rating IP67
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4420 m (14500') maximum
Shock & Vibration ETS 300-019-2-4 class 4M5

Features

Gigabit Ethernet 10/100/1000-BASE-T
Fiber Port 10/100/1000-BASE-T
Dual Protocol Operation 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
Management Services Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI 2.4 GHz 802.11b/g/n radio for local management access Smart Antenna Alignment Hands-free dedicated 2.4 GHz Wi-Fi management radio alignment tool
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use
Security 128-bit AES PSK with hardware acceleration
QoS Supports 4 pre-configured QoS levels
Colocation Synchronization 1PPS GPS TX/RX synchronization for colocated co-channel radios Adjustable up/downstream bandwidth ratio
GPS Location GNSS-1 (GPS + GLONASS)

Regulatory + Compliance

Approvals* FCC Part 101 and EN 302 217-2-2
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2

Datasheet

PDF File Mimosa B11 10.0-11.7 GHz Gigabit Backhaul, up to 1.5Gbps Aggregate
