A5-14

Mimosa Network

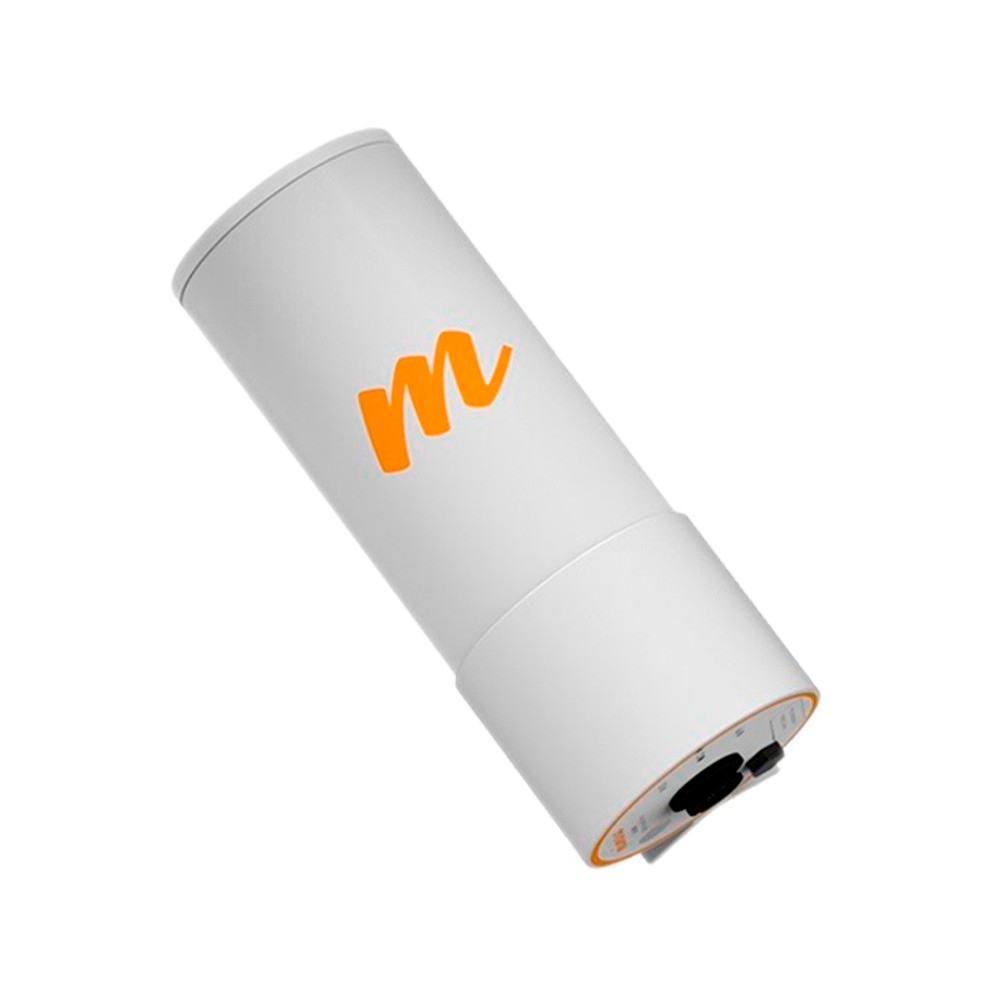

Mimosa 5GHz Quad Panel 14 dBi 802.11ac AP


Product Highlights
  • Mimosa A5 14dbi 5GHz Omni 360 degree 802.11ac 1.7 Gbps Gigabit Access Point LOS
  • With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.
  • The Mimosa A5 unique quad-panel MIMO technology delivers industry leading performance for high density short-range multipoint broadband applications.
  • Generate more capacity with less interference! Mimosa introduces the first directional MIMO technology, providing 4 individual 90ยบ panels that can uniquely transmit MIMO streams only in the direction of a desired client.
  • MU-MIMO is a feature that enables simultaneous downlink transmission to multiple clients at once (CPE or mobile device). The A5-360 leverages directionality technology to achieve MU-MIMO.

    • Model#: A5-14

    Sku: IT2657



    MSRP: $989.99


    Out of stock

    Your Price: $875.00


    Model: A5-14

    Mimosa 5GHz Quad Panel 14 dBi 802.11ac AP

    Mimosa's A5 is not a typical quad panel access point, it redefines LOS and NLOS deployment for urban and suburban environments. Its utilizes a quad sector design, with 4 separate 90 degree antenna panels for high-density multipoint deployments. Mimosa's access points deliver super high capacity (250+ clients), sophisticated beamforming and advanced interference reduction techniques to enable service in high-density markets where wireless never worked before - changing the way consumers connect forever. Mimosa offers both a 14 dBi and 18 dBi version to fulfill the needs of your network. This is the 14dBi model. It operates in 4x4:4 802.11ac. The Mimosa access point suite is one of the first unlicensed radios to offer Multi-User MIMO (MU-MIMO) capabilities. MU-MIMO is a feature that enables simultaneous downlink transmission to multiple clients at once (CPE or mobile device). The A5 leverages directionality technology to achieve MU-MIMO.

    SPECIFICATIONS

    Specifications A5-14

    Performance
    Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)
    Client Capacity 100 clients
    Wireless Protocols WiFi Interop, Mimosa GPS Sync
    Radio
    MIMO & Modulation 4x4:4 MIMO OFDM up to 256-QAM
    Bandwidth* 20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable in 20 MHz increments for WiFi Interop
    Frequency Range 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
    Max Output Power 30 dBm
    Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz
    Antenna
    Gain A5-18: 18 dBi A5-14: 14 dBi
    Beamwidth ( 3 dB ) 70° azimuth
    Electrical Downtilt A5-18: 4° A5-14: none
    Front-to-Back Ratio >30 dB
    Cross-Polar isolation >20 dB or greater
    Polarization 4 Panels, Alt. Circular
    Physical
    Dimensions Height - 18 dBi: 668 mm (26.29”) 14 dBi: 314 mm (12.36”) Width - 142.44 mm (5.61”)
    Weight 18 dBi: 2.73 kg (6 lbs) 14 dBi: 1.75 kg (3.85 lbs)
    Enclosure Characteristics Outdoor UVstabilized engineered polymer
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 18 dBi: 16.03 kg @ 160 km/h 35.34 lbs @ 100 mph 14 dBi: 7.72 kg @ 160 km/h 17.03 lbs @ 100 mph
    Mounting Dual pole strap feed points integrated into metal base with integrated curvature for contact with mounting poles
    Power
    Max Power Consumption 25W
    System Power Method 802.3 at compliant
    System Lightning & ESD Protection 6 kV
    PoE Power Supply 802.3at and Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection
    Environmental
    Outdoor Ingress Protection Rating IP67
    Operating Temperature -40°C to +55°C (-40°F to 131°F)
    Operating Humidity 5 to 100% condensing
    Operating Altitude 4,420 m (14,500’) maximum
    Shock & Vibration ETS 300-019-2-4 class 4M5

    Datasheet

    PDF File Mimosa 5GHz Quad Panel 14 dBi 802.11ac AP
