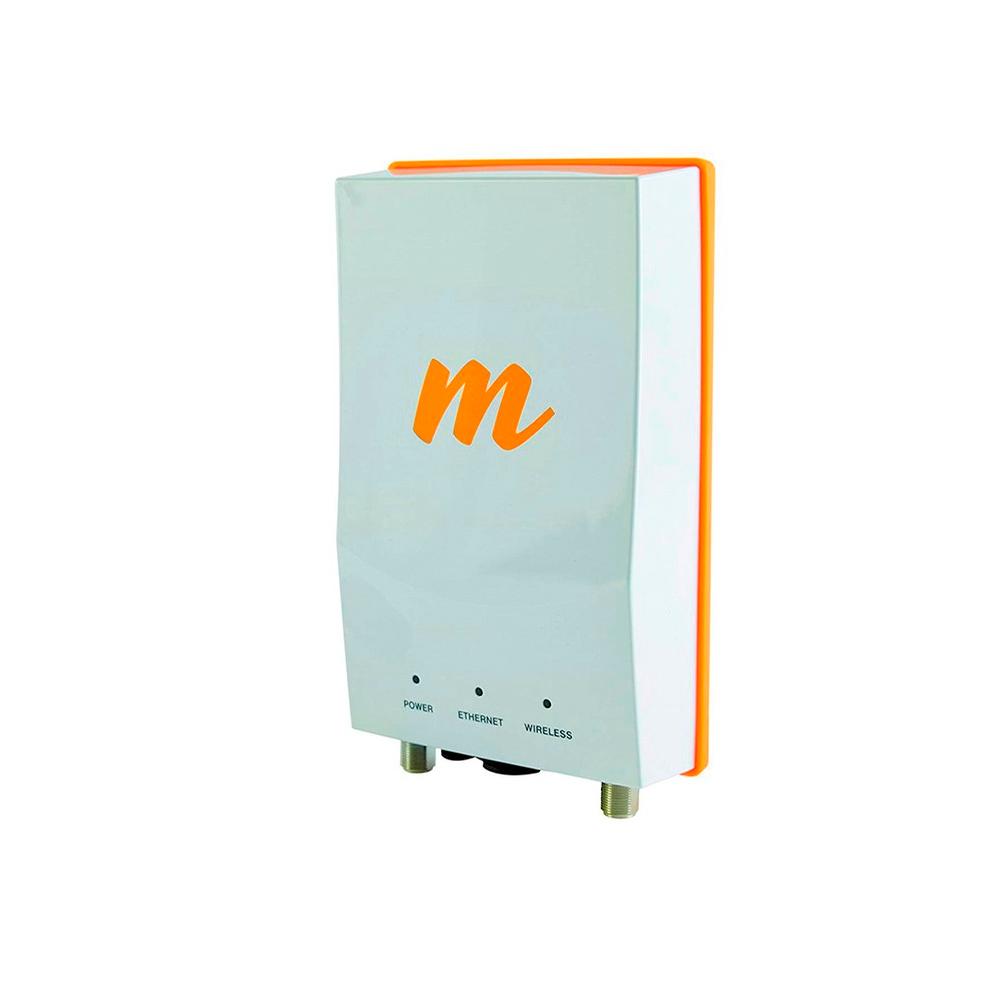

Mimosa B5C Connectorized Backhaul Radio GPS 11ac IP67 4x4:4 MIMO PoE

Model#: B5C

Sku: IT2656

MSRP: $789.00

Out of stock

Your Price: $789.00

Model: B5C

  • Part # 100-00014-HW

The Mimosa B5c is the industry’s fastest connectorized unlicensed and public safety connectivity solution, allowing virtually any antenna to be used for long distance Point to Point backhaul.

The B5c is ideal for long range relay and tower links and custom engineered collocation. It is also suitable for licensed Public Safety operation on 4.9 GHz spectrum.

  • Ultra Rugged

Carrier-grade IP67 design allows the B5c to withstand the harshest of environmental conditions

  • Double Reliability

Tames unlicensed spectrum interference via custom engineered multi-channel and auto-everything technology. As good as two smart links in one radio

  • Easily Add New Links

The B5c is spectrum friendly. Unique high precision GPS Sync technology reuses the same channel network wide. Keep adding more capacity to more sites and waste less spectrum

  • Incredibly Fast. Incredibly Flexible.

Recognized as the fastest unlicensed backhaul in the industry. Extensive bandwidth control options, low latency, reserved bandwidth and GPS sync mode mean peak performance.


  • Monitor with Ease

Assessing link health and identifying potential problems has never been easier. Links are instantly monitored by our Mimosa Cloud service with rich data collection and analysis.


  • Max Throughput: Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
  • Low Latency: < 1 ms in Auto Mode
  • Wireless Protocols: TDMA, TDMA-FD



  • MIMO & Modulation: 4x4:4 MIMO OFDM up to 256QAM
  • Bandwidth*: Single or Dual 20/40/80 MHz channels
  • Frequency Range: 4900 - 6200 MHz restricted by country of operation (‘new’ US/FCC 5600-5650 support)
  • Max Output Power: 30 dBm (2-stream) - 27 dBm (4-stream)
  • Sensitivity ( MCS 0 ): 87 dBm @ 80 MHz - 90 dBm @ 40 MHz - 93 dBm @ 20 MHz



  • Max Power Consumption: 20W
  • System Power Method: 48 V DC 802.3 at compliant power injectors
  • System Lightning & ESD Protection: 6 kV
  • PoE Power Supply: Passive POE compliant, 48-56 V Power over Ethernet supply with IEC61000-4-5 surge protection



  • Dimensions: Height - 267 mm (10.5”) - Width - 158 mm (6.2”) - Depth - 74 mm (3”)
  • Weight: 1.6 kg (3.5 lbs)
  • Enclosure Characteristics: Outdoor UV stabilized plastic - Aluminum mounting panel
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 9.89 kg @ 160 km/h (21.8 lbs @ 100 mph)
  • Mounting: Dual standard pole straps for 30 mm (1.18”) to 90 mm (3.54”) OD pipes
  • Connector Type: Female Type N (x2), intended for use with dual polarization antenna
