BaseBox 6


MikroTik RB912UAG-6HPnD-OUT 600MHz BaseBox6 802.11a/n Outdoor

Model#: BaseBox 6

Sku: IT2615

MSRP: $95.00

Out of stock

Your Price: $95.00

MODEL: BaseBox 6 (RB912UAG-6HPnD-OUT)

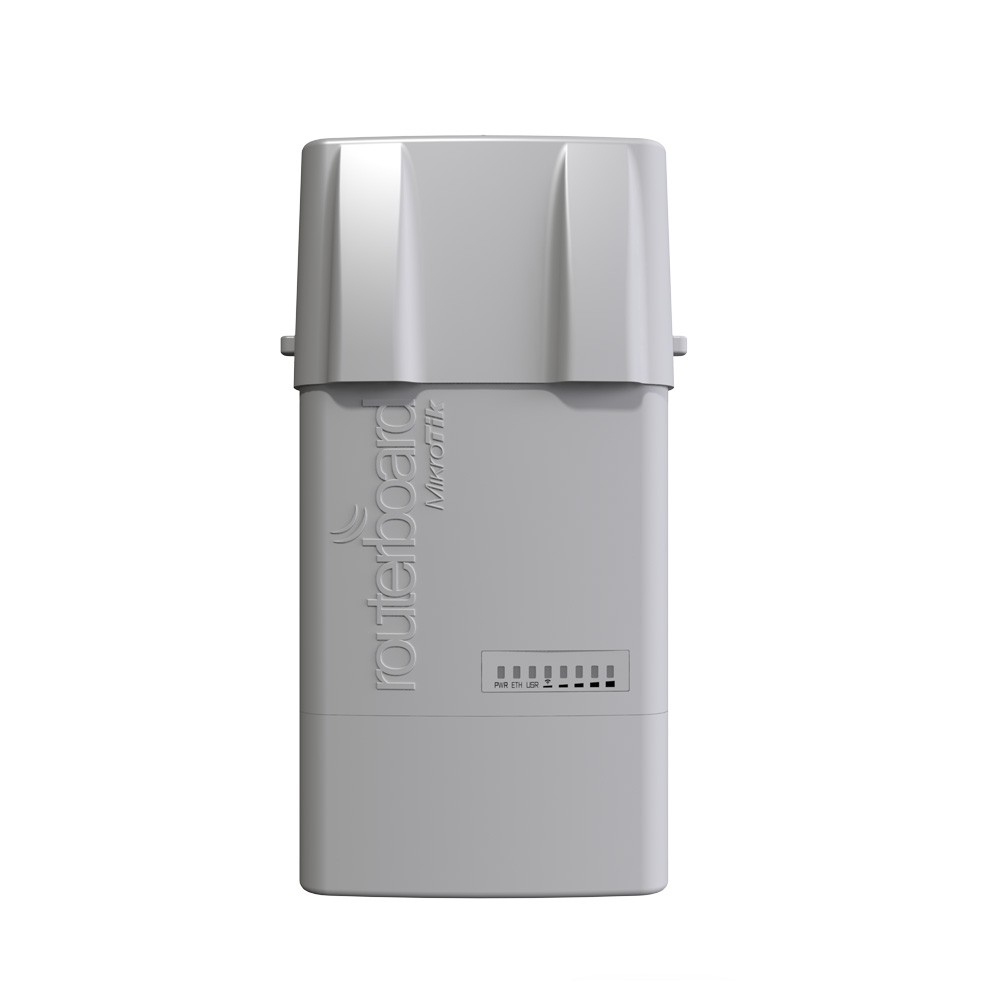

The BaseBox 6 in an outdoor wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem. The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

The BaseBox 6 model operates in the 6 GHz wireless spectrum, in regions where this range is available.

It comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Specifications RB912UAG-6HPnD-OUT

CPU AR9342
CPU nominal frequency 600 MHz
Size of RAM 64 MB
Storage Flash 64 KB, NAND 128 MB
10/100/1000 Ethernet ports 1
Wireless 6 GHz 802.11a/n, dual-chain
Frequency range 5.9 - 6.4 GHz
Wireless chip AR9342
Antenna headers 2, RP-SMA connectors
PoE in Yes
Supported input voltage 10 - 30 V
USB 1 USB type A, max 1 A
PCB temperature monitor Yes
Voltage monitor Yes
Beeper Yes
SIM slot Yes, Mini SIM
miniPCIe slot 1
Dimensions 246 x 135 x 50 mm
Operating temperature -40°C .. +70°C tested
Max power consumption 23 W
License level 4
Operating System RouterOS


PDF File MikroTik RB912UAG-6HPnD-OUT 600MHz BaseBox6 802.11a/n Outdoor
