LtAP mini LTE kit

Mikrotik

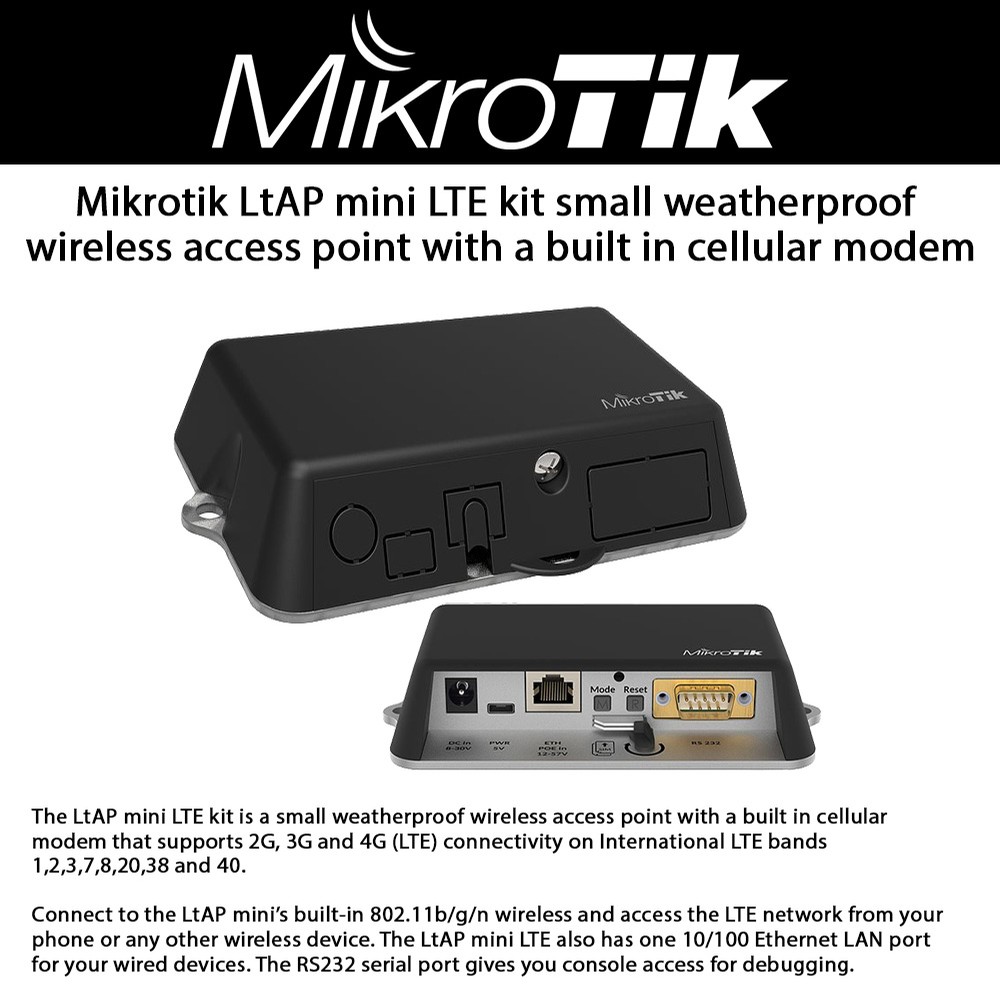

Mikrotik LtAP mini LTE kit small weatherproof wireless access point with a built in cellular modem



Product Highlights
  • The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands
  • Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device.
  • The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.
  • LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains.
  • The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage.
  • Model#: LtAP mini LTE kit

    Sku: IT2613



    MSRP: $136.99


    Out of stock

    The LtAP mini LTE kit is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.

    Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

    LtAP mini has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).

    The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

    Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.

    Specifications

    • Product code    RB912R-2nD-LTm&R11e-LTE
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    139 x 77 x 28,5 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • MicroUSB input Voltage    5-5 V
    • PoE in    802.3af/at
    • PoE in input Voltage    12-57 V
    • Number of DC inputs    3 (DC jack, PoE-IN, MicroUSB)
    • DC jack input Voltage    8-30 V
    • Max power consumption    9 W

    Mobile

    • 2G Category    Class12
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    • LTE TDD bands    38 (2600MHz) / 40 (2300MHz)

    Wireless

    • Wireless 2.4 GHz number of chains    2
    • Antenna gain dBi for 2.4 GHz    1.5

    Ethernet

    • 10/100 Ethernet ports    1

    Peripherals

    • Number of SIM slots    2 Modem (Mini SIM)
    • MiniPCI-e slots    1
    • Serial port    RS232
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    microUSB type AB
    • Max USB current (A)    1
