RBLHG-5nD-US

Mikrotik

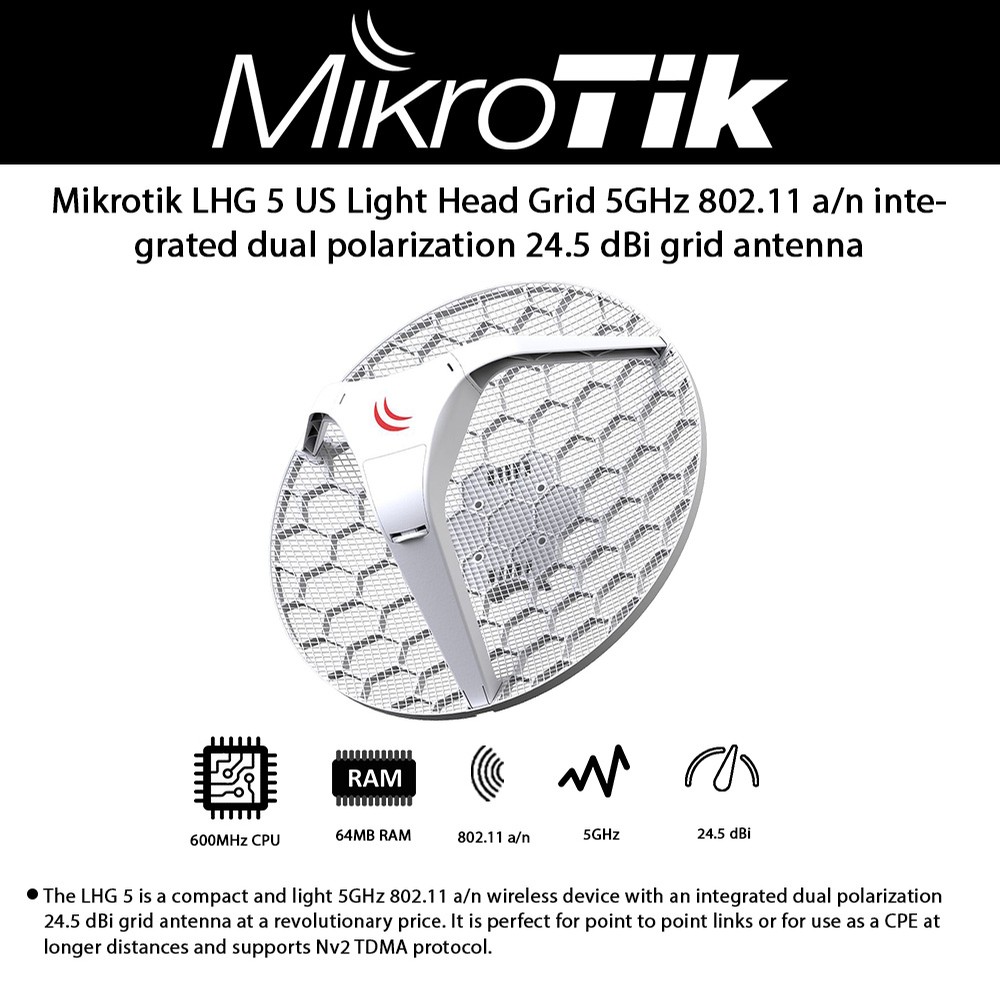

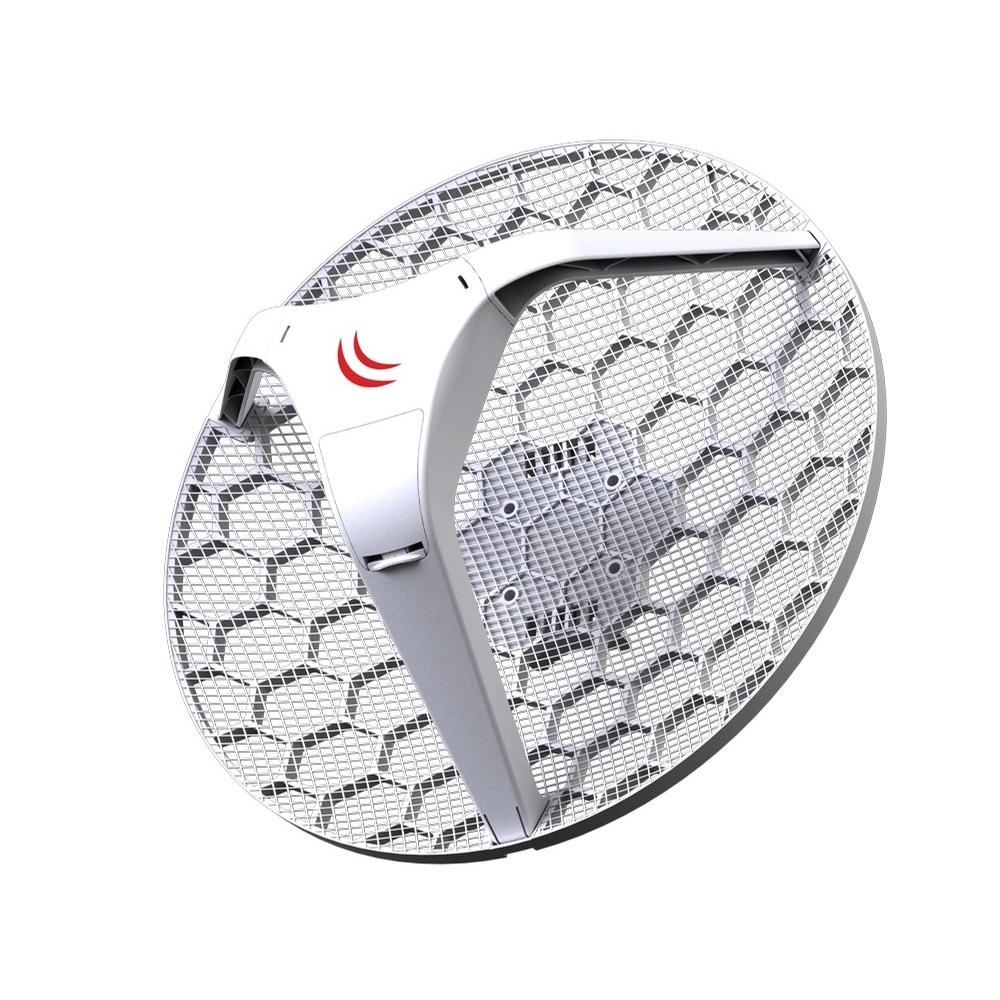

Mikrotik LHG 5 Light Head Grid 5GHz CPE integrated 24.5dBi Grid Antenna US Version


Product Highlights
  • The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna
  • The LHG is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol
  • The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables
  • Size of RAM: 64 MB; Storage size: 16 MB; CPU nominal frequency: 600 MHz
  • LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed

    • Model#: RBLHG-5nD-US

    Sku: IT2597



    MSRP: $69.99


    Out of stock

    The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

    The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

    • LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    Specifications

    • Product code    RBLHG-5nD
    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    Ø 391 x 222 mm; package 450 x 450 x 145 mm
    • RouterOS license    3
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • MTBF    Approximately 100'000 hours at 25C
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    11-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    6 W
    • FAN count    Passive

    Wireless specifications

    • Wireless 5 GHz Max data rate    300 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n
    • Antenna gain dBi for 5 GHz    24.5
    • Wireless 5 GHz chip model    AR9344
    • Wireless 5 GHz generation    Wi-Fi 4

    Ethernet

    • 10/100 Ethernet ports    1

    Certification & Approvals

    • Certification    CE, FCC, IC, EAC, ROHS
    • IP    IP54
