RB921GS-5HPacD-15SX2-US

Mikrotik


Mikrotik RB921GS-5HPacD-15S-US mANTBox 15s 2-UNITS Built-in 5GHz 802.11a/n/ac 15dBi MIMO Sector Antenna OSL4



Product Highlights
  • The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in.
  • Powered by the RB921 device, the mANTBox comes ready to use with everything included.
  • The mANTBox 15s uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.
  • RB921GS-5HPacD-15S-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
  • CPU nominal frequency: 720 MHz / 1xGbit LAN 1xSFP PoE PSU mounting kit
  • Model#: RB921GS-5HPacD-15SX2-US

    Sku: IT2548

    Out of stock

    Your Price: N/A

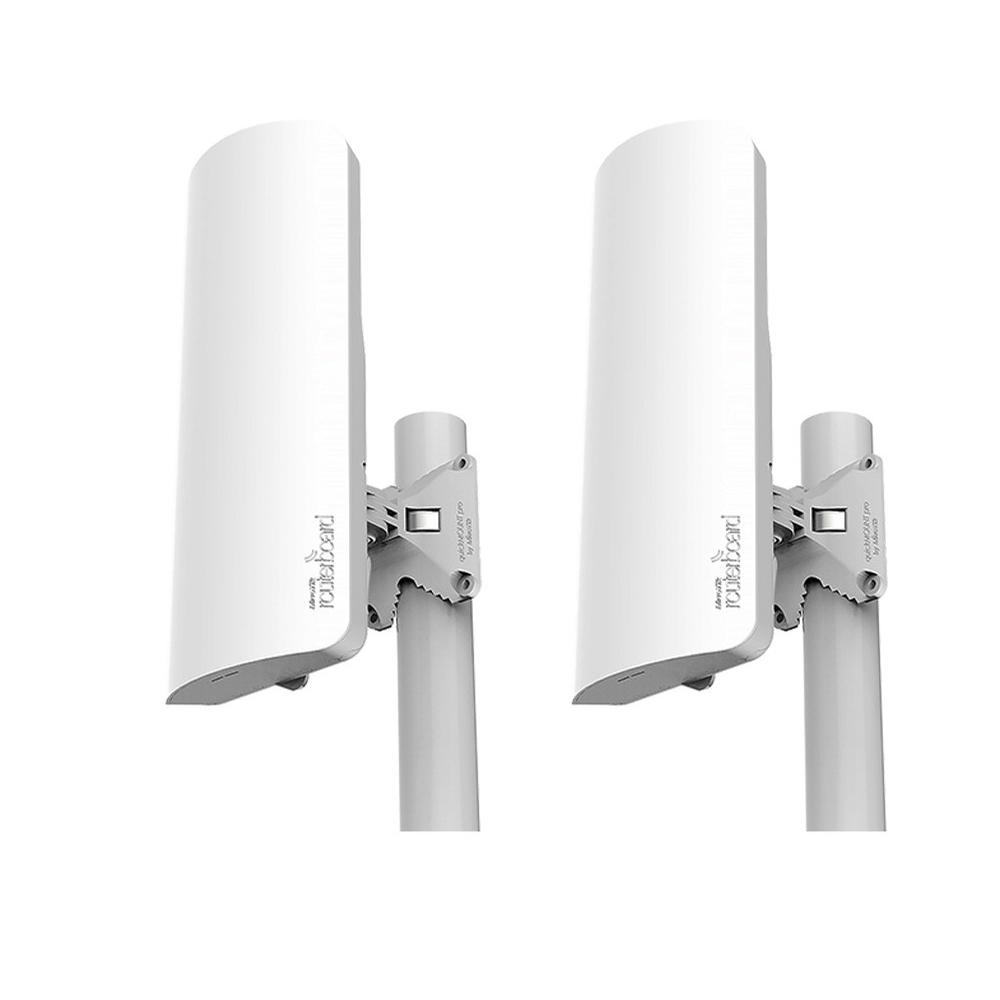

    mANTBox 15s (RB921GS-5HPacD-15S)

    The mANTBox is based on our new mANT sector antennas, but also has a wireless router built right in. Powered by the RB921 device, the mANTBox comes ready to use with everything included. The device uses a high speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with up to 31dBm output power.

    RB921GS-5HPacD-15S-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

    Specifications

    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    140 x 348 x 82 mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    12-28 V
    • Number of DC inputs    2 (PoE-IN, DC jack)
    • DC jack input Voltage    9-30 V
    • Max power consumption    13 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • AC speed    AC1600
    • Antenna gain dBi for 5 GHz    15
    • Wireless 5 GHz chip model    QCA9892

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Fiber

    • SFP ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
