Dynadish 6

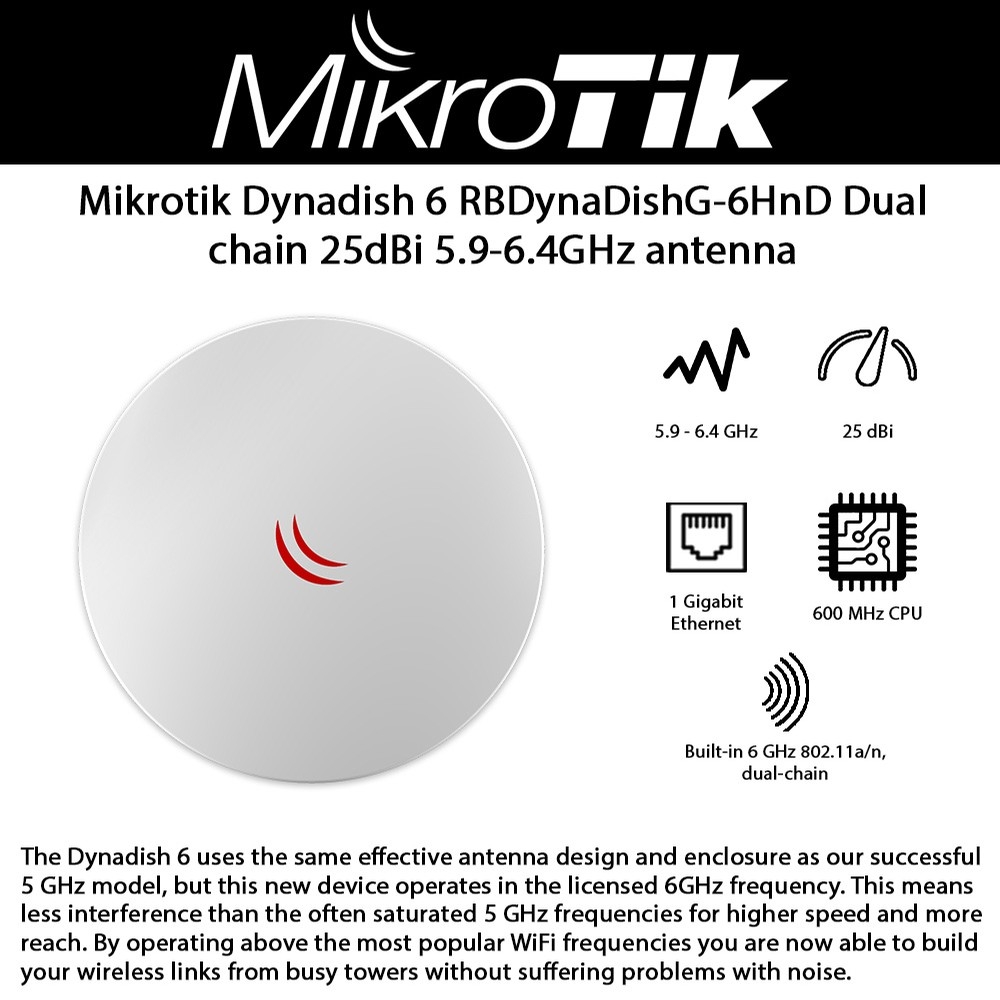

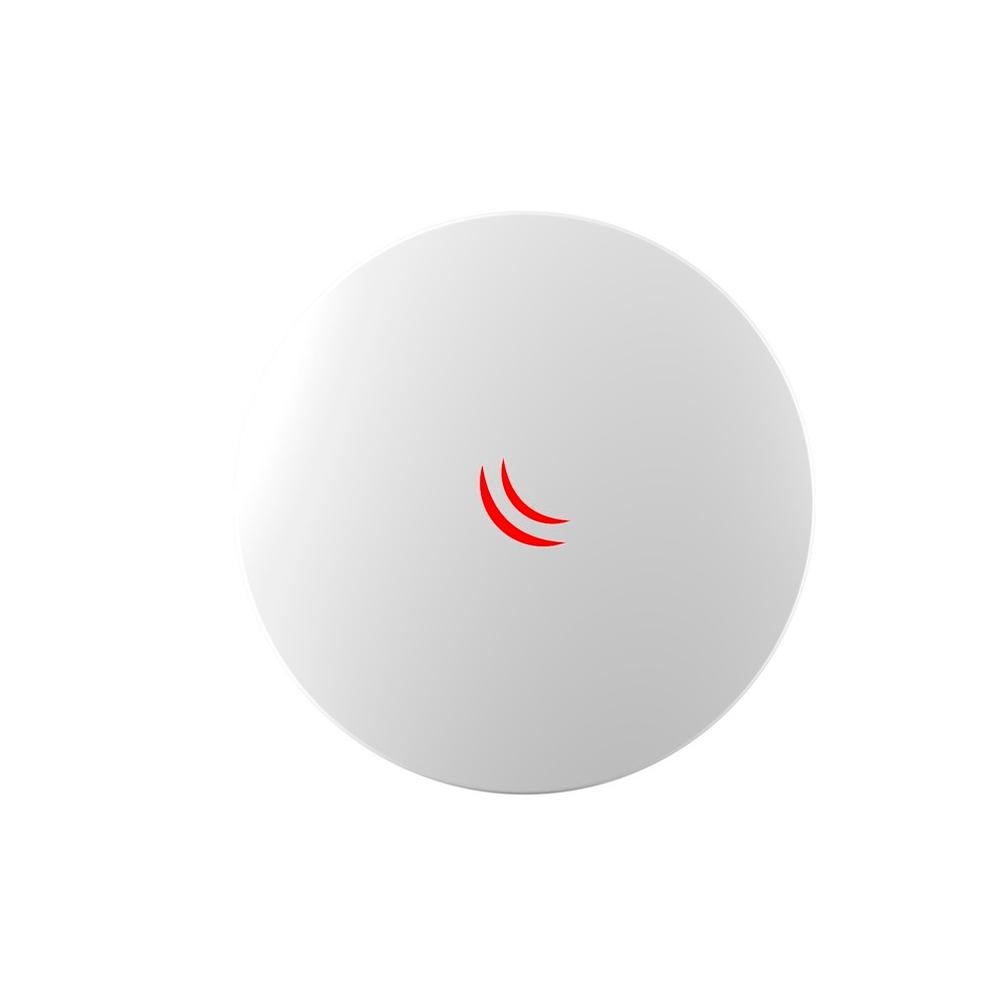

MikroTik RBDynaDishG-6HnD 5.9-6.4GHz DynaDish 6 25dBi 802.11a/n

Model#: Dynadish 6

Sku: IT2506

MSRP: $169.99

In Stock

Your Price: $169.99

MODEL: Dynadish 6 (RBDynaDishG-6HnD)

The Dynadish 6 uses the same effective antenna design and enclosure as our successful 5 GHz model, but this new device operates in the licensed 6GHz frequency. This means less interference than the often saturated 5 GHz frequencies for higher speed and more reach. By operating above the most popular WiFi frequencies you are now able to build your wireless links from busy towers without suffering problems with noise.

It is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.The antenna is a 25 dBi dish, and it includes a precise alignment mount, ideal for long range (up to 25 km at full speed) point to point wireless links.

  • 5.9 - 6.4 GHz dual chain board integrated into a 25 dBi dish antenna
  • precision mounting kit included
  • one Gigabit Ethernet port


  • Product code    RBDynaDishG-6HnD
  • Architecture    MIPSBE
  • CPU    AR9344
  • CPU core count    1
  • CPU nominal frequency    600 MHz
  • Dimensions    Ø 404 mm
  • License level    4
  • Operating System    RouterOS
  • Size of RAM    64 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • Tested ambient temperature    -40°C to 70°C


  • PoE in    Passive PoE
  • PoE in input Voltage    12-30 V
  • Number of DC inputs    1 (PoE-IN)
  • Max power consumption    10 W


  • Wireless 6 GHz number of chains    2
  • Wireless 6 GHz Max data rate    300 Mbit/s
  • Wireless 6 GHz standards    802.11a/n
  • Antenna gain dBi for 6 GHz    25
  • Wireless 6 GHz chip model    AR9344


  • 10/100/1000 Ethernet ports    1


  • PCB temperature monitor    Yes
  • Voltage Monitor    Yes


PDF File MikroTik RBDynaDishG-6HnD 5.9-6.4GHz DynaDish 6 25dBi 802.11a/n
