RB922UAGS-5HPacD-NM-US

Mikrotik

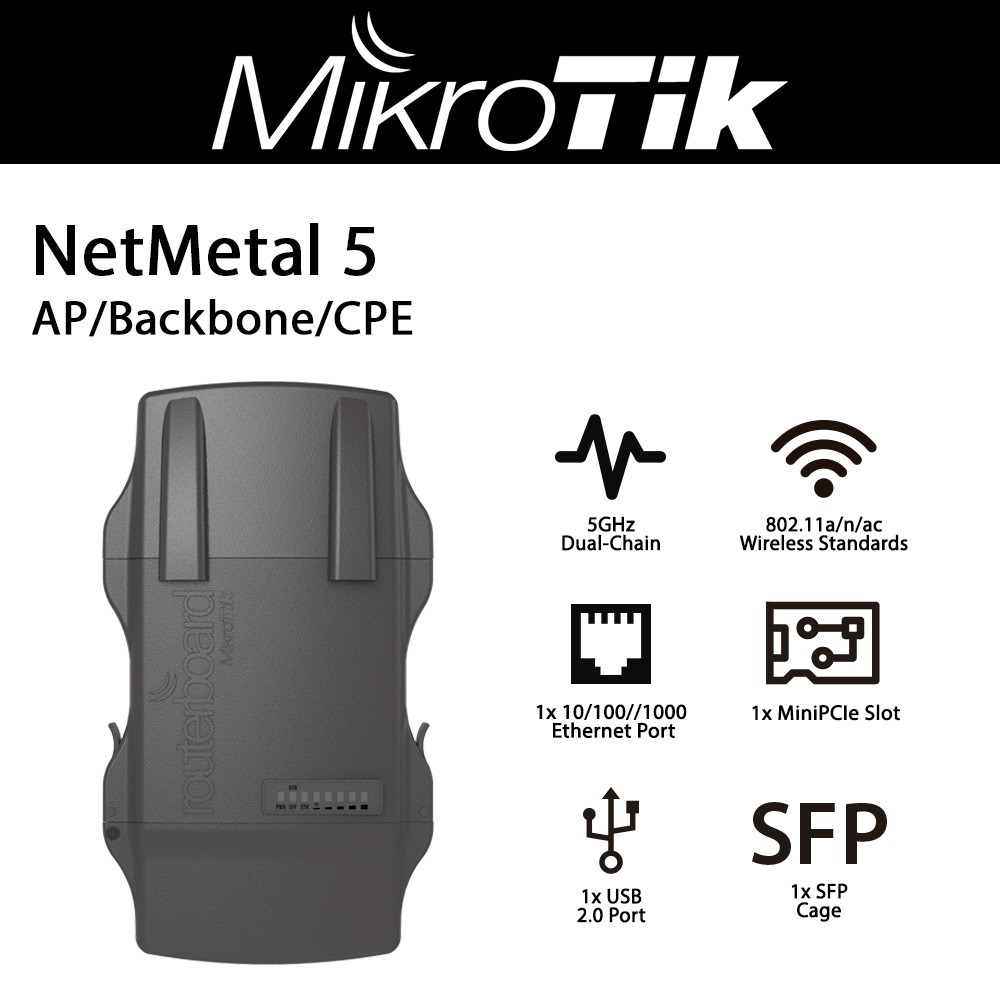

Mikrotik NetMetal 5 5GHz 802.11ac AP/Backbone/CPE RB922UAGS-5HPacD-NM metal enclosure IP66 OSL4 US



Product Highlights
  • This NetMetal 5 (RB922UAGS-5HPacD-NM) version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card
  • A high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas
  • The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP66)
  • Its solid aluminum enclosure also works as a reliable heat-sink for its high output power radio
  • The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license
  • Model#: RB922UAGS-5HPacD-NM-US

    Sku: IT2482



    MSRP: $139.99


    Out of stock

    NetMetal 5 (RB922UAGS-5HPacD-NM) US Version

    This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas

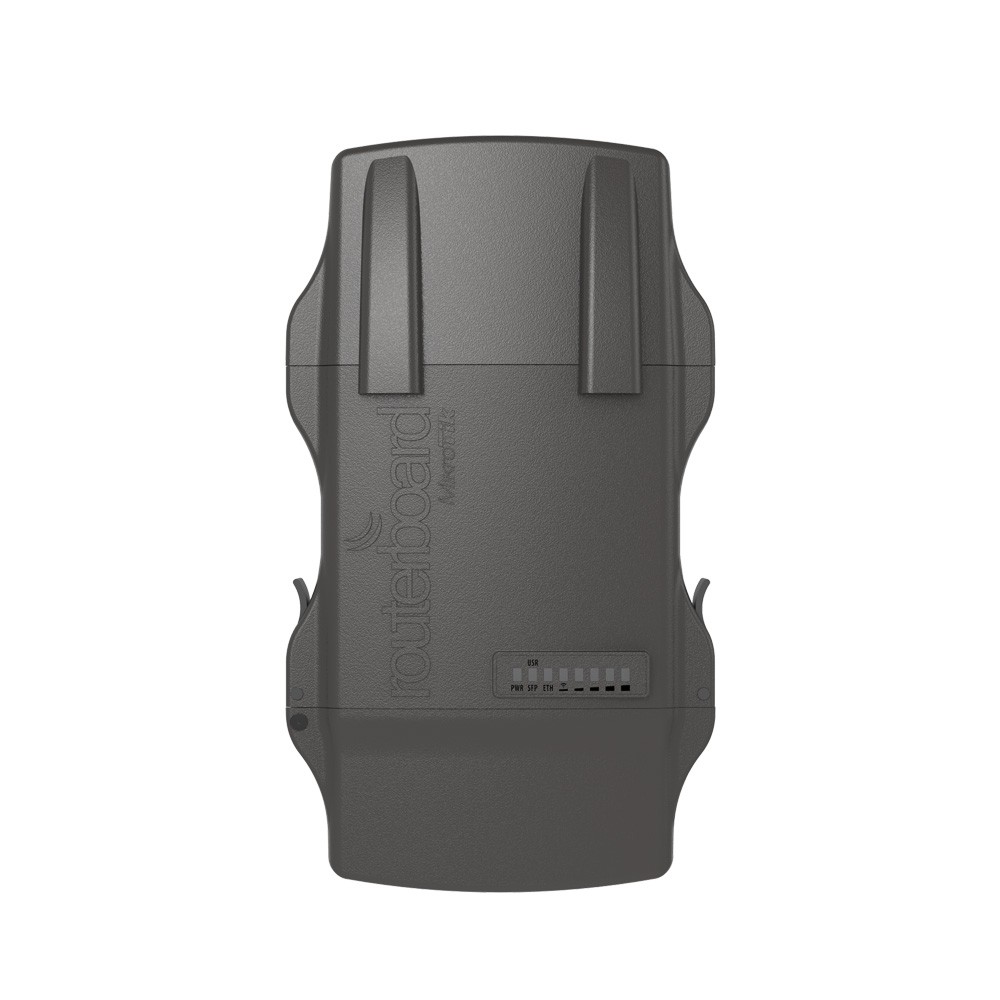

    The NetMetal 5 (RB922UAGS-5HPacD-NM) is a 802.11ac wireless device in a waterproof metal enclosure (IP66). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.

    The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • Dimensions    143x247x48mm (PCB)
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    19 W
    • Wireless 5 GHz standards    802.11a/n/ac
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz chip model    QCA9882
    • Wi-Fi generation    5
    • 10/100/1000 Ethernet ports    1
    • SFP DDMI    yes
    • SFP ports    1
    • Number of SIM slots    1 Modem (Mini SIM)
    • MiniPCI-e slots    1
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
