wAP R

Mikrotik


Mikrotik wAP R (RBwAPR-2nD) 2.4GHz wAP R 802.11bgn miniPCI US



Product Highlights
  • 650 MHz CPU, 64 MB RAM
  • (1)10/100 Port, (1) miniPCI-e
  • 2.4 GHz 802.11b/g/n 2x2
  • RouterOS L4, Waterproof Device, Desktop Stand, PoE, PSU, Mounting Kit
  • Model#: wAP R

    Sku: IT2480



    MSRP: $89.99

    In Stock

    Your Price: $89.99






    MODEL: wAP R - (RBwAPR-2nD)

    wAP R 2dBi 2.4GHz Weatherproof Wireless Access Point

    These products will not work on Verizon’s US network outside large metro areas because they do not run Band 13. They are also not certified on Verizon so use them at your own risk. Check with your cellular provider before using on that carrier’s network.

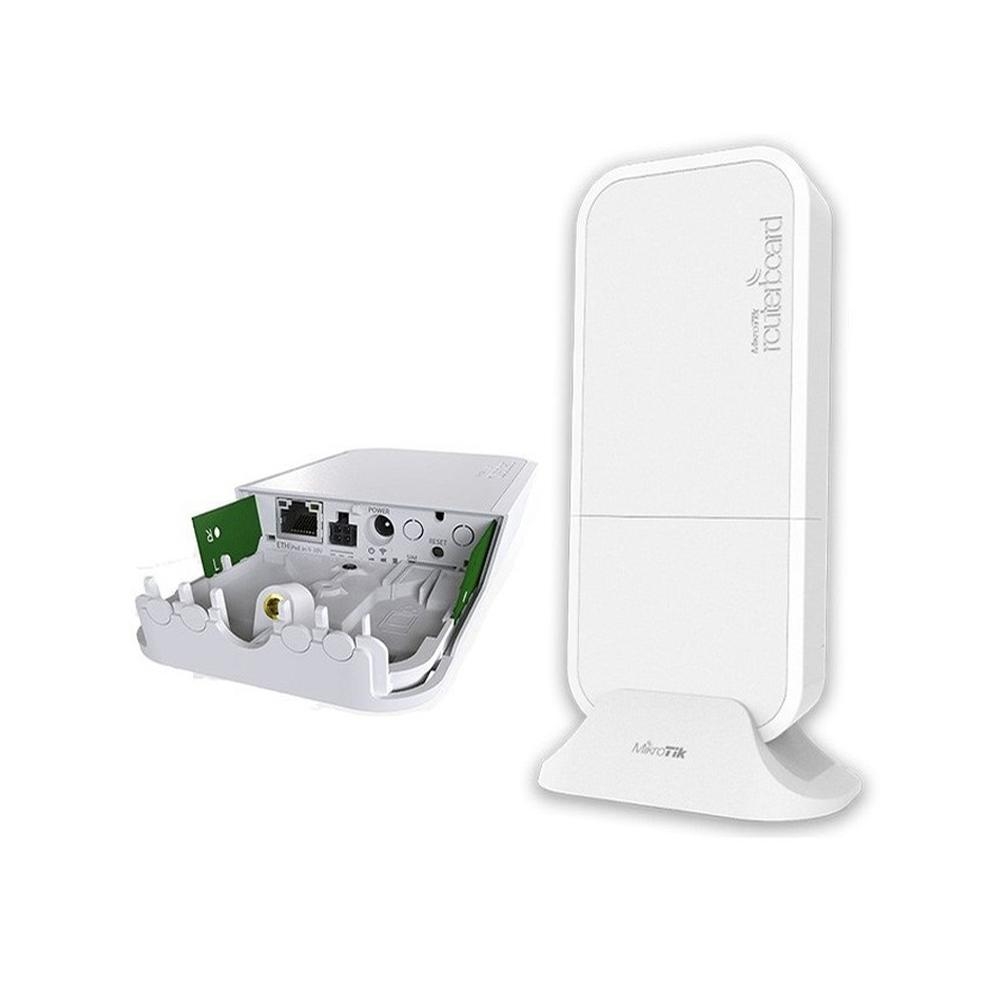

    The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

    The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window.

    Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.

    Specifications RBwAPR-2nD

    Product code RBwAPR-2nD
    10/100 Ethernet ports 1
    Antenna gain dBi for 2.4 GHz 2
    CPU QCA9531
    CPU core count 1
    CPU nominal frequency 650 MHz
    DC jack 9-30 V
    Dimensions 185x85x30 mm
    Max Power consumption 6W
    MiniPCI-e slots 1
    Number of chains 2
    Operating System RouterOS
    PCB temperature monitor Yes
    PoE in Passive PoE
    Power Jack 2
    Size of RAM 64 MB
    Storage size 16 MB
    Storage type FLASH
    Tested ambient temperature -40°C .. +60°C
    Voltage Monitor Yes
    Wireless 2.4 GHz chip model QCA9531
    Wireless 2.4 GHz standards 802.11b/g/n

    Wireless Specifications

    2.4 GHz Transmit power (dBm) Receive Sensitivity Transmit power (mW)
    1MBit/s 22 -96 158
    11MBit/s 22 -89 158
    6MBit/s 20 -93 100
    54MBit/s 18 -74 4 63
    MCS0 20 -93 100
    MCS7 16 -71 40

    Datasheet

    PDF File Mikrotik wAP R (RBwAPR-2nD) 2.4GHz wAP R 802.11bgn miniPCI US
