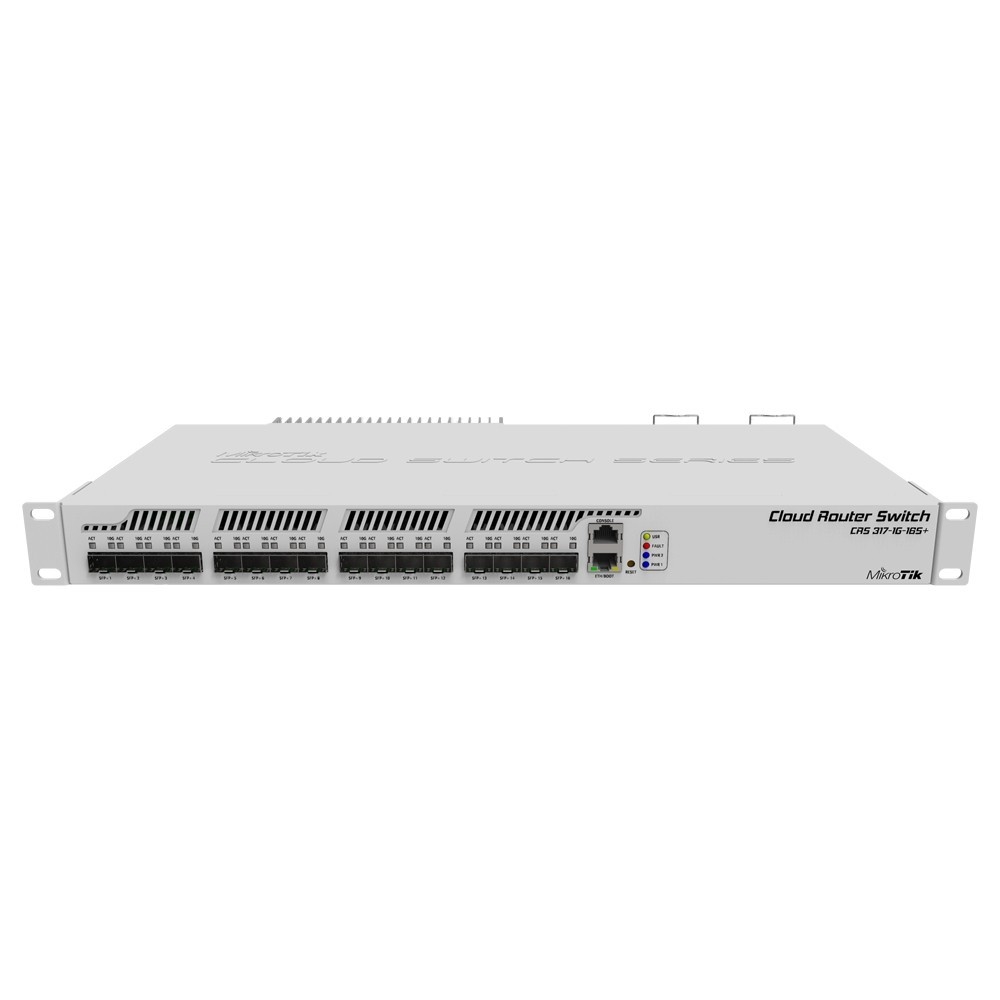

MikroTik CRS317-1G-16S+RM Cloud Router Switch 16xSFP+

Model#: CRS317-1G-16S+RM

Sku: IT2478

MSRP: $529.99

In Stock

Your Price: $529.99


The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features,it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management. CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

“Dual boot” feature allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cages supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

  • Architecture:   ARM 32bit

  • CPU:   98DX8216B0-BRR4C000

  • CPU core count:   2

  • CPU nominal frequency:   800 MHz

  • Dimensions:   443 x 224 x 44 mm

  • License level:   6

  • Operating System:   RouterOS or SwitchOS

  • Size of RAM:    1 GB

  • Storage size:   16 MB

  • Storage type:   FLASH

  • Tested ambient temperature:   -20 to 60° C

  • Max Power consumption:   42W

  • Number of AC inputs:   2

  • AC input range:   100-240 V

  • 10/100/1000 Ethernet ports:   1

  • SFP+ ports:   16

  • Serial port:    RJ45


PDF File MikroTik CRS317-1G-16S+RM Cloud Router Switch 16xSFP+
