RB2011UiAS BD1

Mikrotik

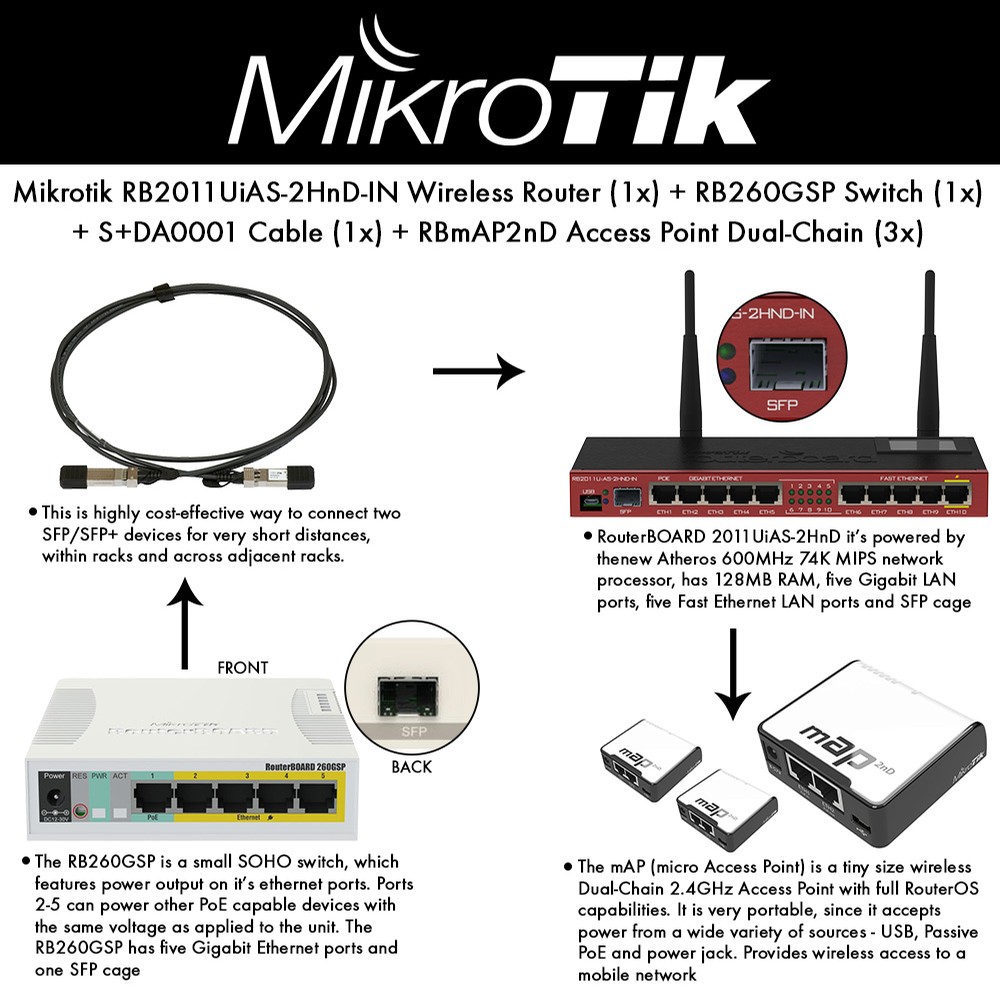

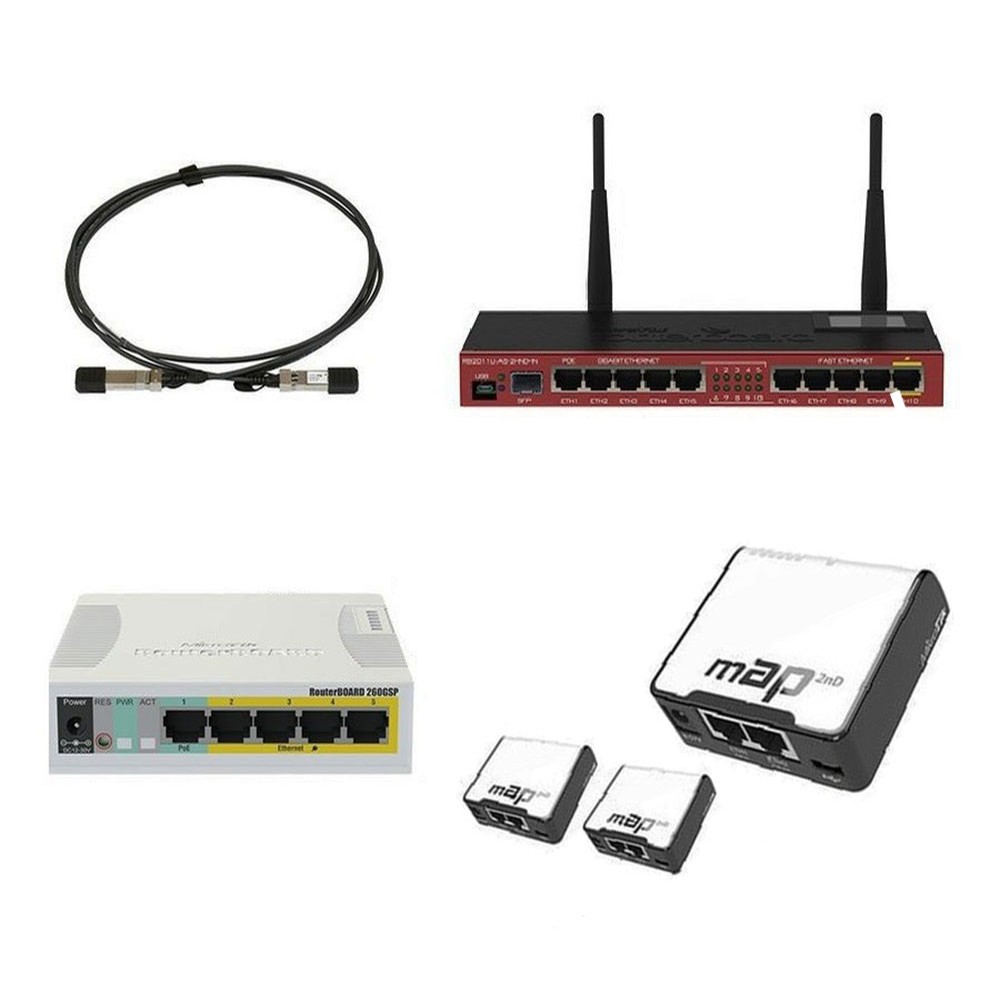

Mikrotik RB2011UiAS-2HnD-IN Router + RB260GSP Switch + S+DA0001 Cable + RBmAP2nD Access Point



Product Highlights
  • RouterBOARD 2011UiAS-2HnD it’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage. Also, it features powerful 1000mW dual chain 2.4Ghz.
  • The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ether
  • This S+DA0001 is highly cost-effective way to connect two SFP/SFP+ devices for very short distances, within racks and across adjacent racks.
  • The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack.
  • Best solution for your wireless network.
  • Model#: RB2011UiAS BD1

    Sku: IT2459



    MSRP: $339.99


    Out of stock

    RB2011UiAS-2HnD-IN  (1-UNIT)

    The RB2011Ui is a multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

    The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

    RouterBOARD 2011UiAS-2HnD it’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz (2312-2732MHz depending on country regulations) 802.11bgn wireless AP, RJ45 serial port, microUSB port and RouterOS L5 license, as well as desktop case with power supply, two 4dBi Omni antennas and LCD panel.RouterBOARD 2011UAS-2HnD-IN comes with desktop enclosure, LCD panel and power supply.

    The RB2011Ui also has passive PoE output capability on the last port (ETH10), this means you can power another device just by connecting it over regular Ethernet cable



    RB260GSP (1-UNIT)

    The RB260GSP is a small SOHO switch, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit (passive PoE over datalines only). The RB260GSP has five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip. The device is running an operating system designed specifically for MikroTik Switch products - SwOS.



    S+DA0001  (1-UNIT)

    This is highly cost-effective way to connect two SFP/SFP+ devices for very short distances, within racks and across adjacent racks. They provide a low cost, low power and low latency interconnect solution for 10-Gigabit Ethernet, Fiber Channel and other industry standards, and are direct attached compliant and fully conform to the SFP+ MSA specifications.



    RBmAP2nD  (3-UNITS)

    The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

    RB2011UiAS-2HnD-IN

    • SFP DDMI:  Yes
    • CPU nominal frequency:  600 MHz
    • CPU core count:  1
    • Size of RAM:  128 MB
    • 10/100 Ethernet ports:  5
    • 10/100/1000 Ethernet ports:  5
    • Wireless standards:  802.11b/g/n
    • Wireless chip model:  AR9344
    • Number of USB ports:  1
    • Power Jack:  1
    • PoE out:   Yes
    • Supported input voltage:  8 V - 30 V
    • PoE in:  Yes
    • Voltage Monitor:  Yes
    • PCB temperature monitor:  Yes
    • Dimensions:  214mm x 86mm for PCB
    • Operating System:  RouterOS
    • Tested ambient temperature:  -35C to +65C
    • License level:  5
    • Antenna gain:   4
    • CPU:  AR9344
    • Max Power consumption:  11W
    • SFP ports:  1
    • USB Power Reset:  Yes
    • USB slot type:  microUSB type AB
    • Number of chains:  2
    • Serial port:   RJ45
    • Storage type:  NAND
    • Storage size:  128 MB

    RB260GSP

    • Architecture: RISC
    • 10/100/1000 Ethernet ports:  5
    • Power Jack:  1
    • Supported input voltage:  8 V - 30 V
    • PoE out:  Yes
    • PoE in:   Yes
    • Voltage Monitor:  Yes
    • PCB temperature monitor:  Yes
    • Dimensions:  113x139x28mm
    • Operating System:  MikroTik SwOS
    • Tested ambient temperature:  -25? to +65?
    • SFP ports:     1
    • Storage type:  FLASH
    • Storage size:  128 KB


    S+DA0001

    • Connect two SFP/SFP+ devices for very short distances
    • Interconnect solution for 10-Gigabit Ethernet, Fiber Channel and other industry standards
    • Are direct attached compliant and fully conform to the SFP+ MSA specifications


    RBmAP2nD

    • CPU nominal frequency:   650 MHz
    • CPU core count:   1
    • Size of RAM:    64 MB
    • 10/100 Ethernet ports:  2
    • Wireless standards:     802.11b/g/n
    • Wireless chip model:    QCA9531
    • Number of USB ports:    1
    • Power Jack:    1
    • PoE out:    Yes
    • Supported input voltage:   11 V - 57 V
    • PoE in:    802.3af/at
    • Voltage Monitor:   Yes
    • PCB temperature monitor:   Yes
    • Dimensions:   68x68x19mm
    • Operating System:   RouterOS
    • Tested ambient temperature:   -10C to +70C tested
    • License level:   4
    • Antenna gain:    1.2
    • CPU:    QCA9531
    • Max Power consumption:   5W
    • USB slot type:     microUSB type AB
    • USB Power Reset:   Yes
    • Number of chains:  2
    • Storage type:      FLASH
    • Storage size:      16 MB
