CCR1009-7G-1C-PC

Mikrotik

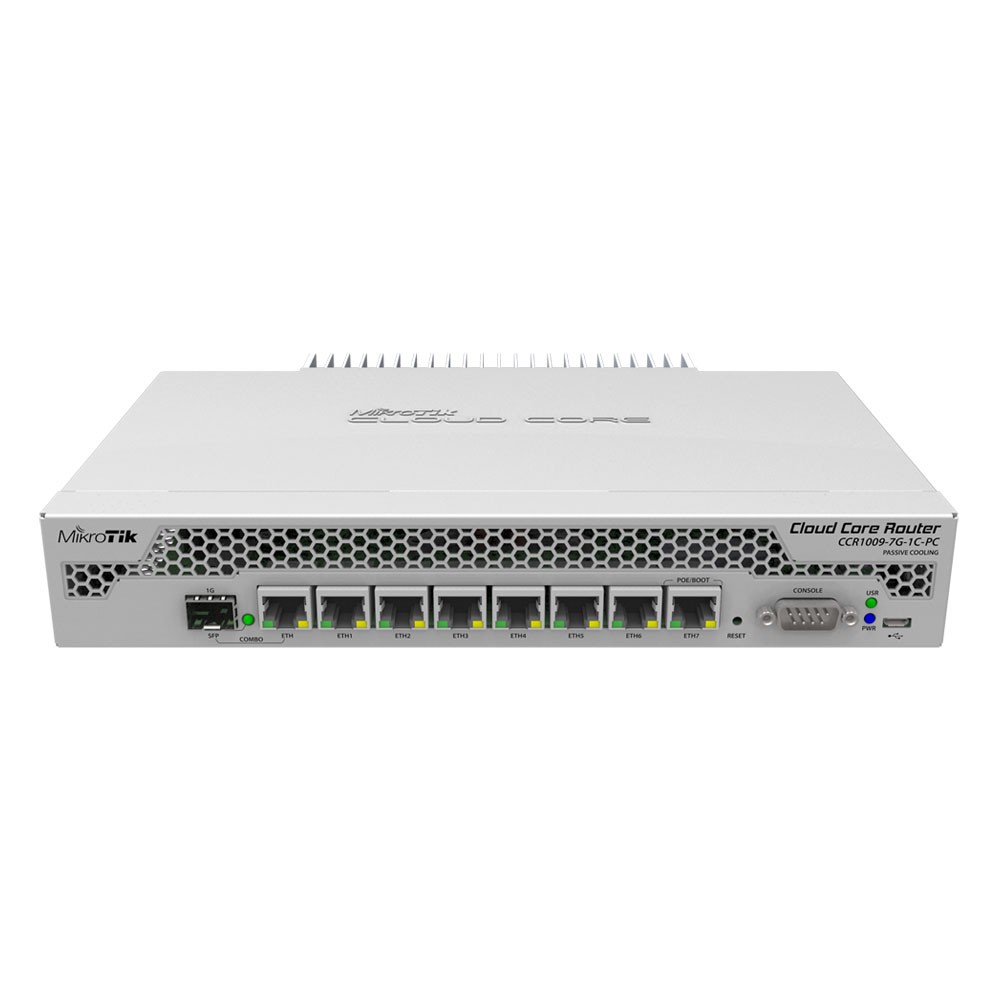

Mikrotik CCR1009-7G-1C-PC Router 7x Gigabit Ethernet Ports and 1x SFP or Gigabit Ethernet Combo Port



Product Highlights
  • No switch-chip - the device features only fully independent Ethernet ports each with a direct connection to the CPU
  • Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you
  • 100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules
  • More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput
  • This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent
  • Model#: CCR1009-7G-1C-PC

    Sku: IT2456



    MSRP: $369.99


    Out of stock

    The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

    Important changes:

    No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

    Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

    100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

    More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

    This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

    • Architecture    TILE
    • CPU    TLR4-00980
    • CPU core count    9
    • CPU nominal frequency    1 GHz
    • Dimensions    272x190x47mm
    • License level    6
    • Operating System    RouterOS
    • Size of RAM    1 GB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -20°C to 60°C
    • PoE in    Passive PoE
    • PoE in input Voltage    18-57 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    18-57 V
    • Max power consumption    30 W
    • Max power consumption without attachments    25 W
    • 10/100/1000 Ethernet ports    7
    • Ethernet Combo ports    1
    • Serial port    RS232 + Header
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    microUSB type AB
    • Max USB current (A)    1
    • CPU temperature monitor    Yes
    • Current Monitor    Yes
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, EAC, ROHS
