RB952Ui-5ac2nD-TC-US

Mikrotik

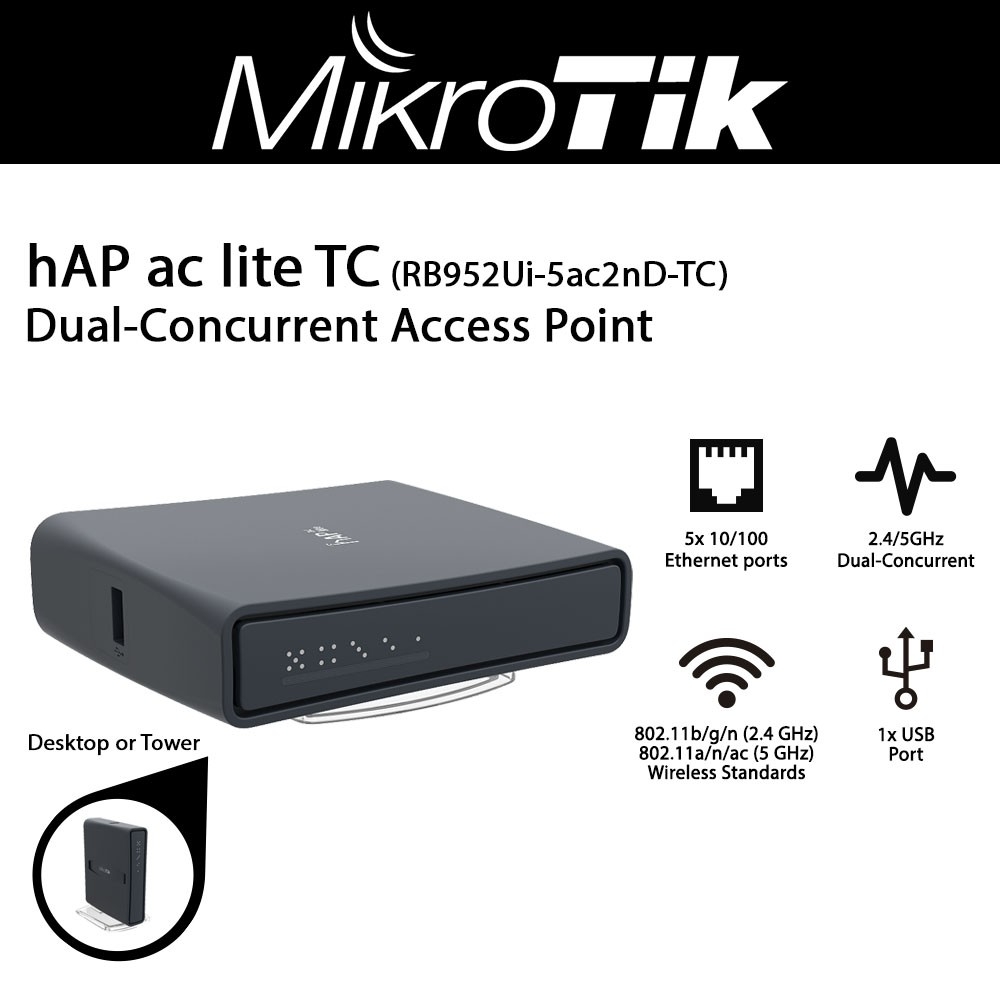

MikroTik RB952Ui-5ac2nD-TC-US 2.4/5GHz hAP ac lite 802.11ac Tower US VERSION



Product Highlights
  • Dual chain wireless 2.4GHz
  • Single chain wireless 5GHz
  • 650MHz CPU
  • 64MB of RAM
  • Five x 10/100Mbps Ethernet ports
  • Model#: RB952Ui-5ac2nD-TC-US

    Sku: IT2453



    MSRP: $59.99

    In Stock

    Your Price: $59.99






    MODEL: RB952Ui-5ac2nD-TC US VERSION

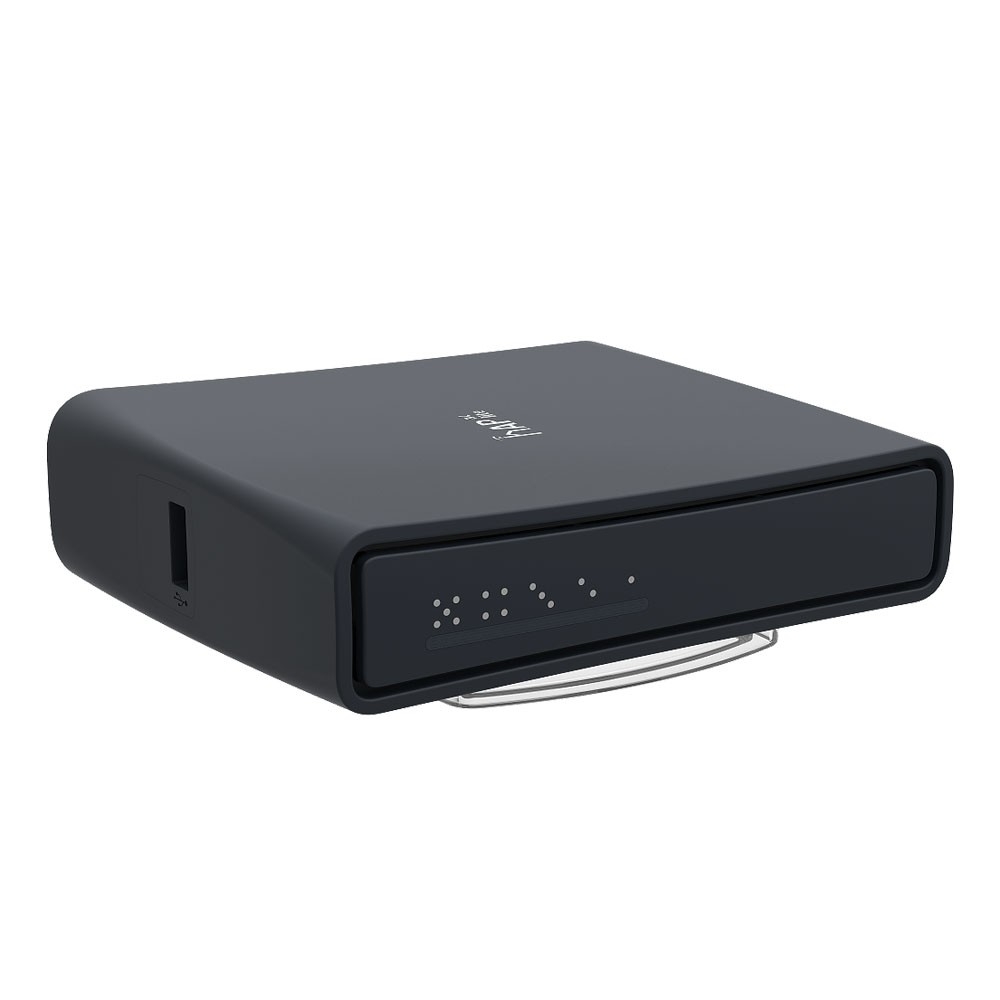

    The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time. New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

    The hAP ac lite can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included. Unit provides PoE output function for port 5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

    The hAP ac lite is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.

    • Passive PoE output on port 5
    • USB port for 3G/4G modem
    • Architecture    MIPSBE
    • CPU    QCA9531
    • CPU core count    1
    • CPU nominal frequency    650 MHz
    • Dimensions    34 x 119 x 98mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -30°C to 70°C
    • PoE in    Passive PoE
    • PoE in input Voltage    10-28 V
    • PoE out    Passive PoE
    • PoE-out ports    Ether5
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    10-28 V
    • Max out per port output (input < 30 V)    500 mA
    • Max total out (A)    500 mA
    • Max power consumption    8 W
    • AC speed    AC750
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    2
    • Wireless 2.4 GHz chip model    QCA9531
    • Wireless 2.4 GHz generation    Wi-Fi 4
    • Wireless 5 GHz Max data rate    433 Mbit/s
    • Wireless 5 GHz number of chains    1
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    2
    • Wireless 5 GHz chip model    QCA9887
    • Wireless 5 GHz generation    Wi-Fi 5
    • 10/100 Ethernet ports     5
    • Number of USB ports     1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1
    • Certification    CE/RED, FCC, IC, EAC, ROHS

    Datasheet

    PDF File MikroTik RB952Ui-5ac2nD-TC-US 2.4/5GHz hAP ac lite 802.11ac Tower US VERSION
