RBmAP2nD

Mikrotik

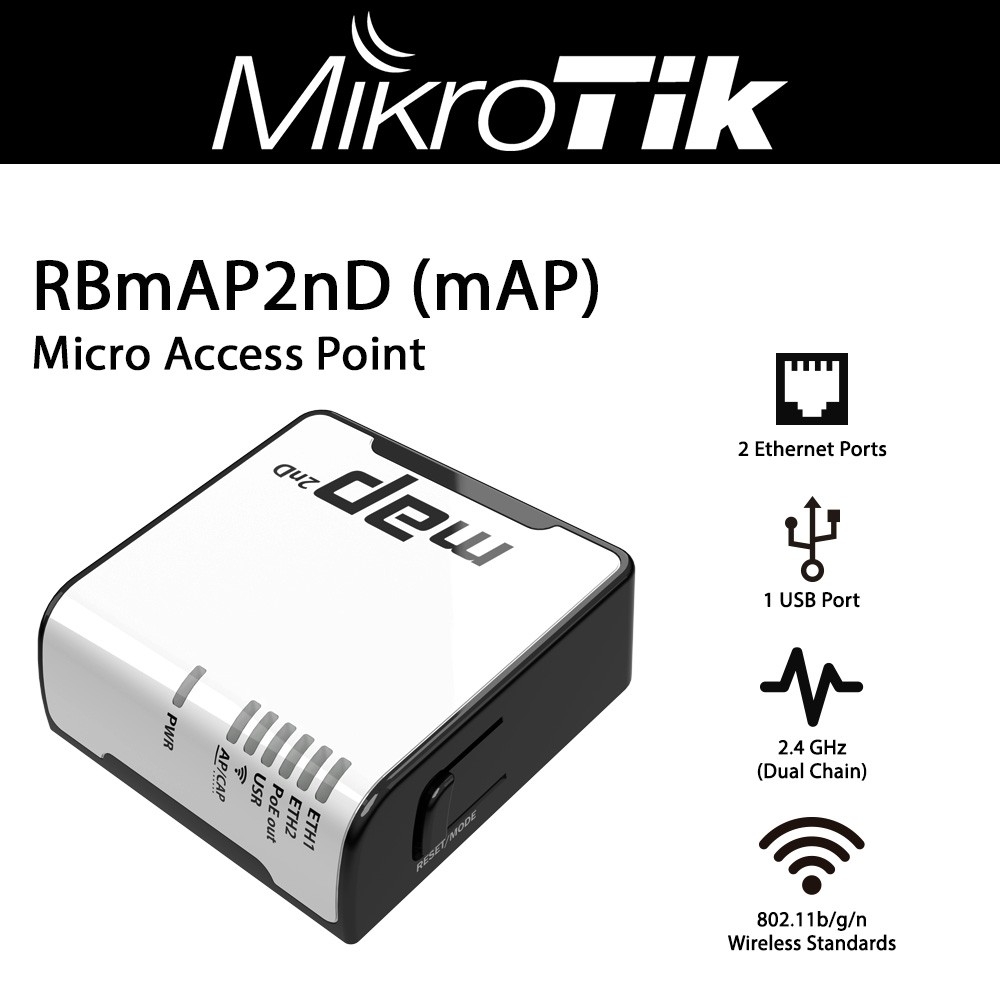

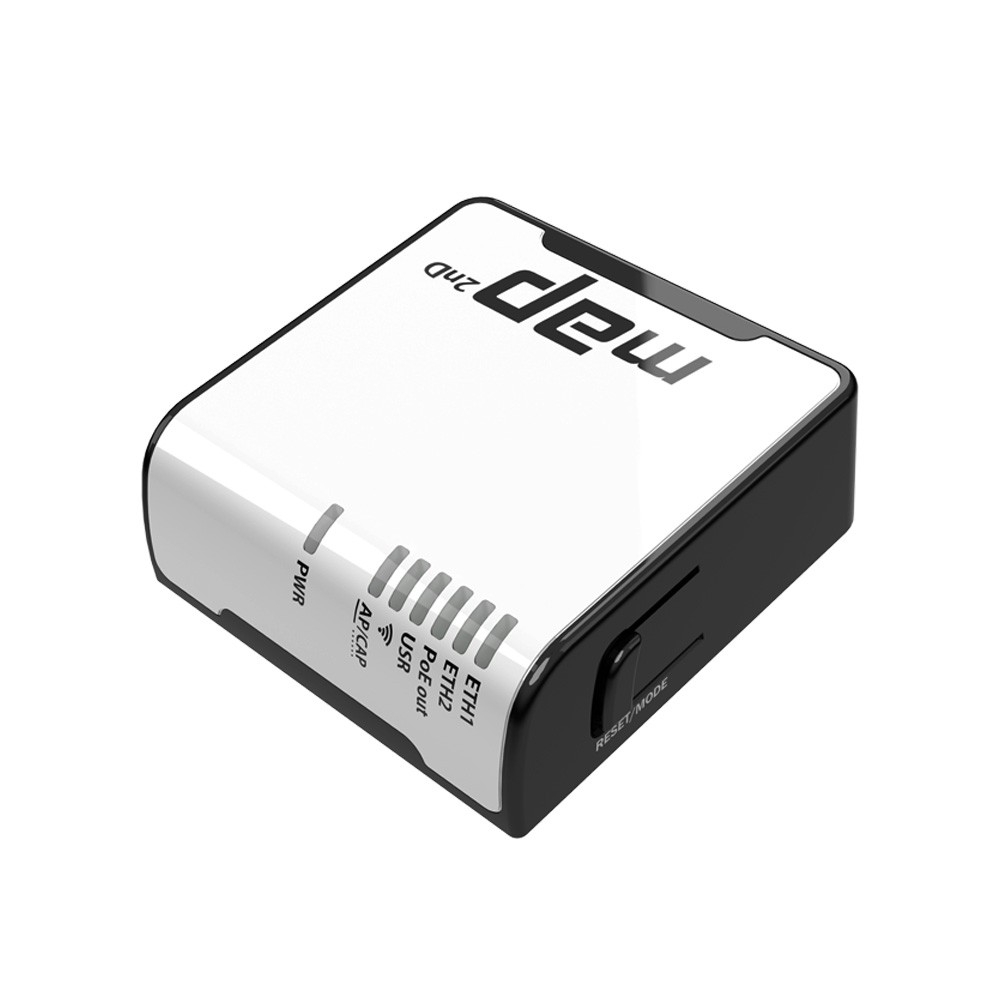

MikroTik RBmAP2nD 2.4GHz mAP 650MHz 64MB 11bgn 2x2 PoE



Product Highlights
  • PoE in 10-57V
  • Built in 2,4GHz AP
  • microUSB for a 3G/4G modem, or for power input
  • Station or AP mode wireless
  • Passive PoE output (same as input voltage)
  • Model#: RBmAP2nD

    Sku: IT2433



    MSRP: $49.99

    In Stock

    Your Price: $49.99






    MODEL: RBmAP2nD

    The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive or Active PoE (802.3af and 802.3at) and power jack.

    In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

    Features:

    • PoE in 10-57V
    • Built in 2GHz AP
    • microUSB for a 3G/4G modem, or for power input
    • Station or AP mode wireless
    • Any type PoE input 802.3af and 802.3at
    • Passive PoE output (same as input voltage)

    Specifications RBmAP2nD

    Product code RBmAP2nD
    CPU nominal frequency 650 MHz
    CPU core count 1
    Size of RAM 64 MB
    10/100 Ethernet ports 2
    Wireless standards 802.11b/g/n
    Wireless chip model QCA9531
    Number of USB ports 1
    Power Jack 1
    802.3af support No
    PoE out Yes
    Supported input voltage 12 V - 57 V
    PoE in 802.3af/at
    Voltage Monitor Yes
    PCB temperature monitor Yes
    Dimensions 68x68x19mm
    Operating System RouterOS
    Tested ambient temperature -10C to +70C tested
    License level 4
    Antenna gain 1.2
    CPU QCA9531
    Max Power consumption 5W
    USB slot type microUSB type AB
    USB Power Reset Yes
    Number of chains 2
    Storage type FLASH
    Storage size 16 MB


    Datasheet

    PDF File MikroTik RBmAP2nD 2.4GHz mAP 650MHz 64MB 11bgn 2x2 PoE
