Mikrotik DynaDish 5 2-UNITS 25dBi 5Ghz PTP Outdoor 802.11ac Integrated Antenna PoE OSL3
Product Highlights
Model#: RBDynaDishG-5HacDX2
Sku: IT2423
MSRP: $349.99
Out of stock

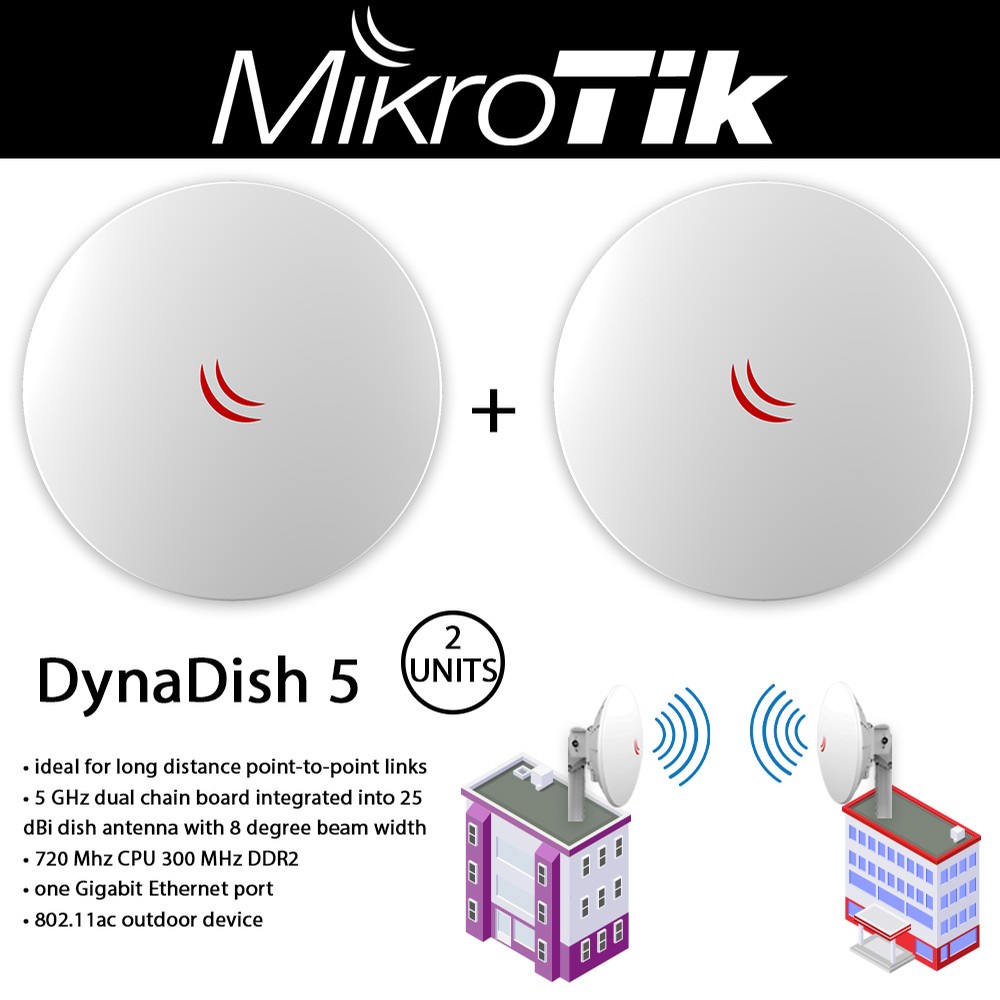

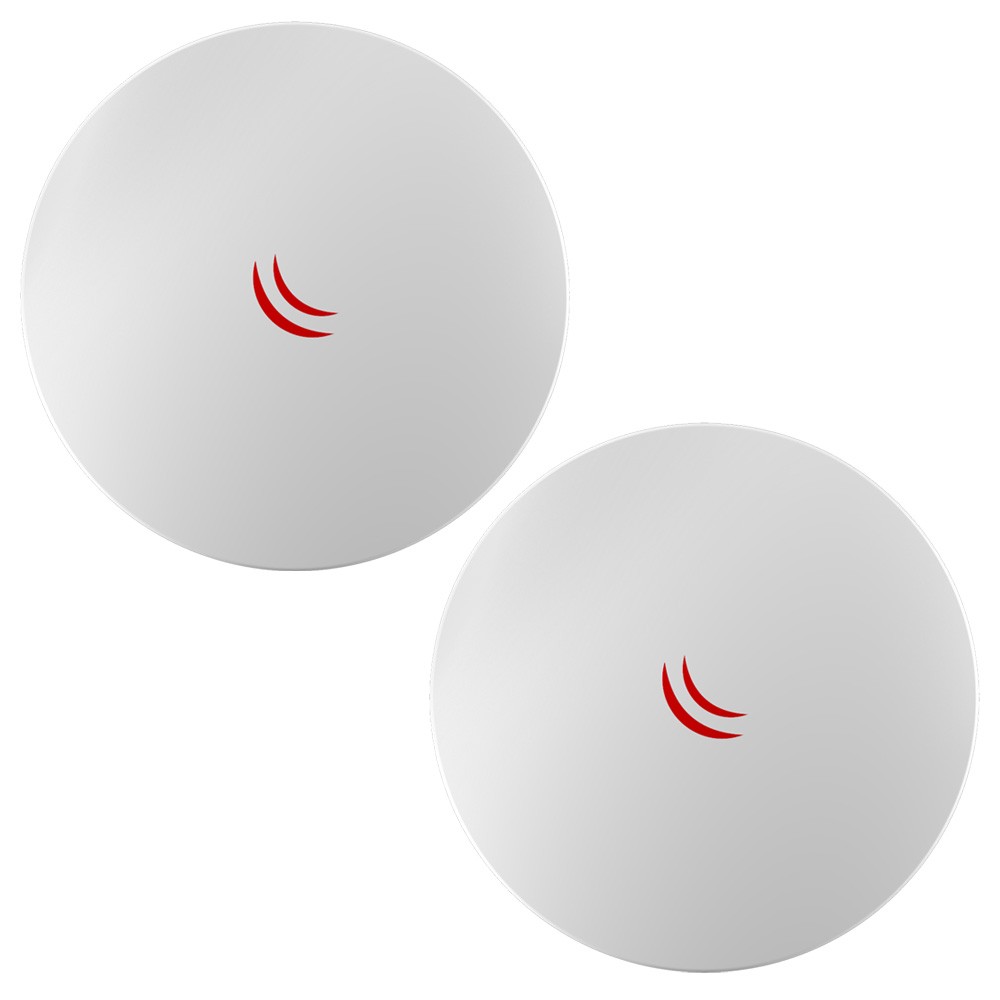

The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
- ideal for long distance point-to-point links
- 5 GHz dual chain board integrated into 25 dBi dish antenna with 8 degree beam width
- 720 Mhz CPU 300 MHz DDR2
- one Gigabit Ethernet port
- MikroTik RouterOS Level 3 license
The antenna is a 8 degree 25 dBi dish, and it includes a precise alignment mount, ideal for long range point to point wireless links.
Specifications
- Product code RBDynaDishG-5HacD
- Architecture MIPSBE
- CPU QCA9557
- CPU core count 1
- CPU nominal frequency 720 MHz
- Dimensions 404mm, height 175mm (without mount)
- License level 3
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -40°C to 70°C
Powering
- PoE in 802.3af/at
- PoE in input Voltage 11-60 V
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 9 W
Wireless
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 25
- Wireless 5 GHz chip model QCA9892
Ethernet
- 10/100/1000 Ethernet ports 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
