RB922UAGS BD01

Mikrotik

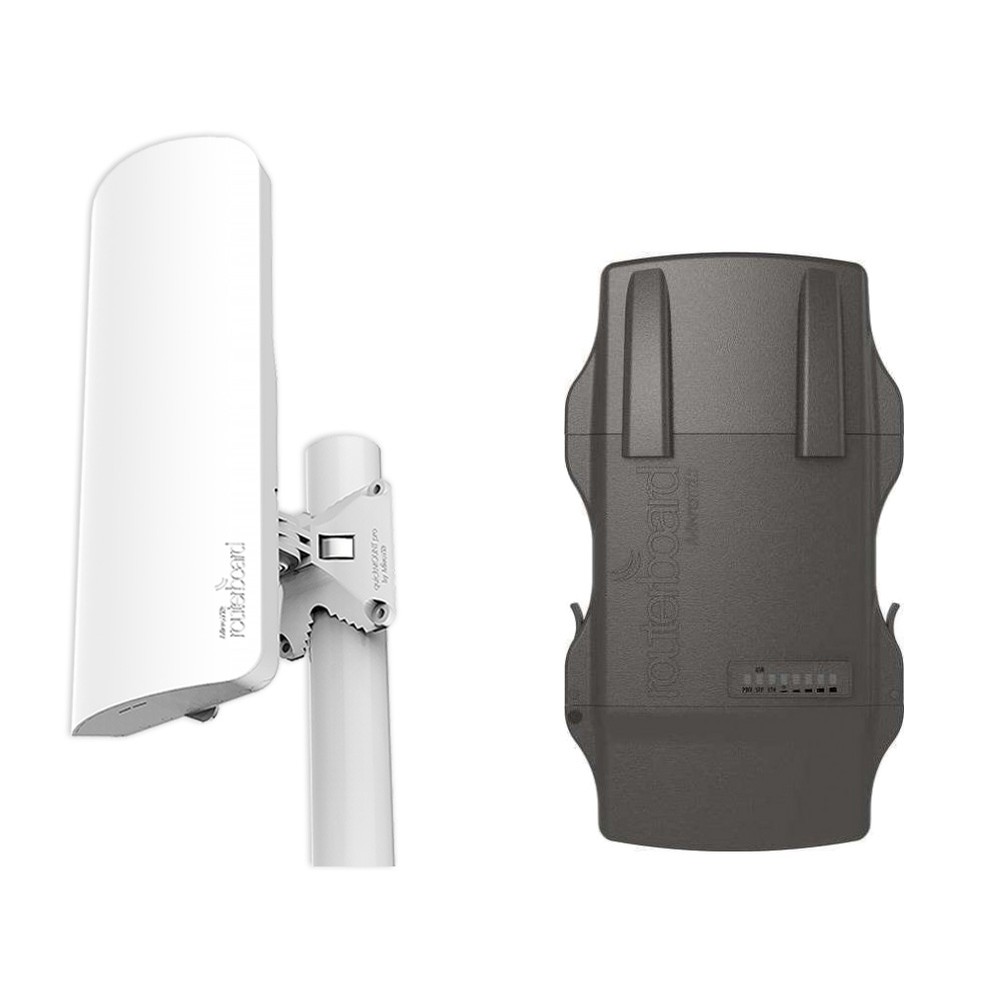

Mikrotik NetMETAL 5 5Ghz 11ac Outdoor AP + mANT15s 5GHz 120° 15dBi Sector Antenna


Product Highlights
  • This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas.
  • The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP66). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum encl
  • The NetMetal 5 is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.
  • The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
  • The mANT 15s is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

    • Model#: RB922UAGS BD01

    Sku: IT2408



    MSRP: $249.95


    Out of stock

    NetMetal 5 (RB922UAGS-5HPacD-NM)

    • This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas. The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure (IP66). Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio. The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.


    mANT 15s (MTAS-5G-15D120)

    • The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device. The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

    NetMetal 5 (RB922UAGS-5HPacD-NM)

    • Product code - RB922UAGS-5HPacD-NM
    • SFP DDMI - yes
    • CPU nominal frequency - 720 MHz
    • CPU core count - 1
    • Size of RAM - 128 MB
    • 10/100 Ethernet ports - None
    • 10/100/1000 Ethernet ports 1
    • MiniPCI slots - 0
    • MiniPCI-e slots - 1
    • Wireless chip model - QCA9882-BR4A-R
    • Wireless standards - 802.11ac
    • Number of USB ports - 1
    • Power Jack - 0
    • 802.3af support - no
    • Supported input voltage - 8 V - 30 V
    • PoE out - No
    • PoE in - Yes
    • Voltage Monitor - Yes
    • CPU temperature monitor - No
    • PCB temperature monitor - Yes
    • Dimensions - 143x247x48mm (PCB)
    • Operating System - RouterOS
    • License level - 4
    • Antenna gain DBI - No
    • Current Monitor - No
    • CPU - QCA9557-AT4A-R
    • Max Power consumption - 17 W
    • SFP ports 1
    • SFP+ ports - None
    • USB slot type - USB type A
    • Number of chains - 2
    • Serial port - None



    mANT 15s (MTAS-5G-15D120)

    • Product code:  MTAS-5G-15D120
    • Antenna gain DBI:  15
    • Frequency Range:  5.17 - 5.825 GHz
    • Polarization:  Vertical and horizontal
    • Beamwidth:  120 deg (azimuth) 10 deg (elevation)
    • VSWR:  1.43 typ, 1.8 max
    • Port to Port Isolation:  >40 dB min
    • Front-to-Back Ratio:  >30 dB
    • Cross Polarization:  >30 dB
    • Diameter x Depth:  140 x 348 x 82 mm
    • Weight:  734 g
    • Connector:  two RP-SMA
