RB911G BD01


Mikrotik NetBox 5 11ac + mANT 15s x2 5GHz 120 degree 15dBi antenna + ACRPSMA x2 cables

Model#: RB911G BD01

Sku: IT2407

MSRP: $199.99

Out of stock

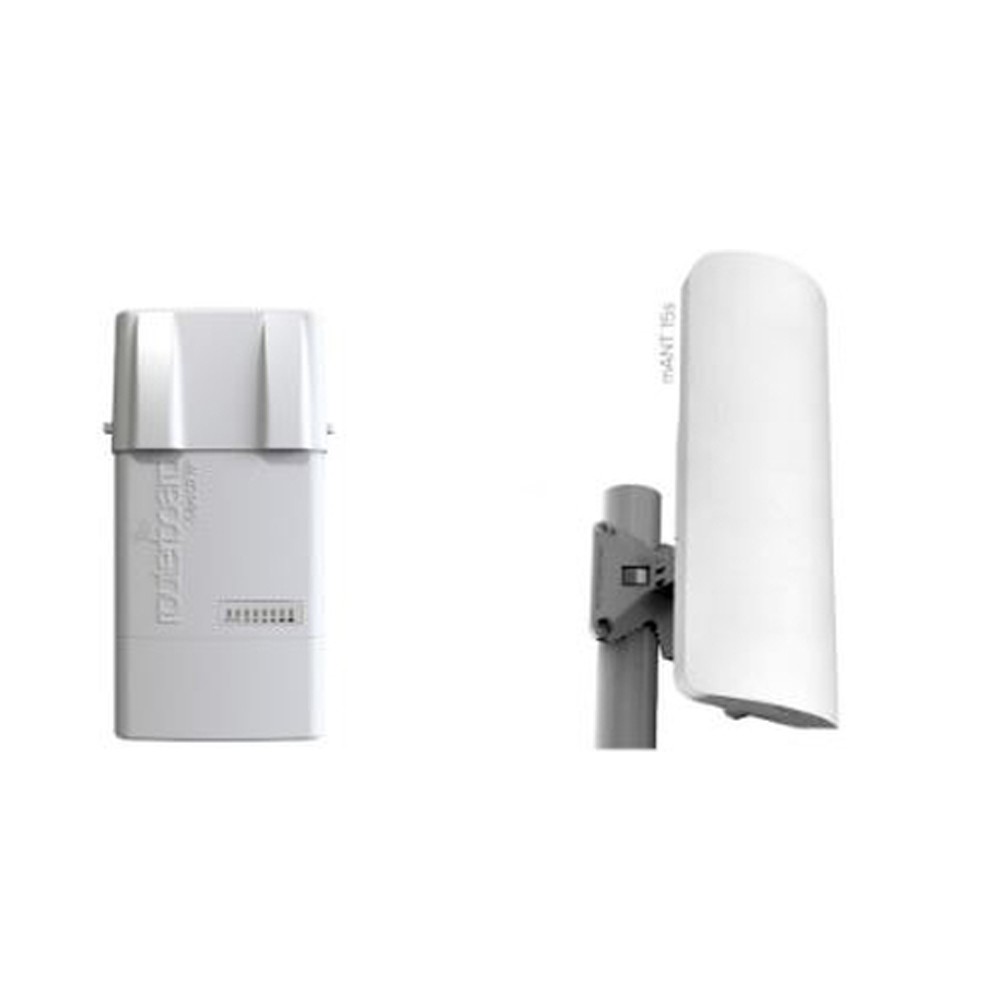

NetBox 5 (RB911G-5HPacD-NB)

The NetBox is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels). The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door. Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit. New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

mANT 15s (MTAS-5G-15D120)

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.


A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values. The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product. The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.

NetBox 5 (RB911G-5HPacD-NB)


  • Architecture    MIPSBE
  • CPU    QCA9557
  • CPU core count    1
  • CPU nominal frequency    720 MHz
  • License level    4
  • Operating System    RouterOS
  • Size of RAM    128 MB
  • Storage size    128 MB
  • Storage type    NAND


  • Max Power consumption    11.5W
  • PoE in    Passive PoE
  • PoE in input Voltage    8-30 V
  • Number of DC inputs    2 (DC jack, PoE-IN)
  • DC jack input Voltage    8-30 V


  • Wireless 5 GHz number of chains    2
  • Wireless 5 GHz standards    802.11a/n/ac
  • Wireless 5 GHz chip model    QCA9882


  • 10/100/1000 Ethernet ports    1


mANT 15s (MTAS-5G-15D120)


  • Antenna gain    15
  • Beamwidth    120 deg (azimuth) 10 deg (elevation)
  • Connector    two RP-SMA
  • Cross Polarization    >30 dB
  • Diameter x Depth    140 x 348 x 82 mm
  • Frequency Range    5.17 - 5.825 GHz
  • Front-to-Back Ratio    >30 dB
  • Polarization    Vertical and horizontal
  • Port to Port Isolation    >40 dB min
  • VSWR    1.43 typ, 1.8 max
  • Weight    734 g


  • Frequency    up to 6GHz
  • Matching    above -20dB
  • Operating Temperature    -55C to 125C
  • Signal loss    below 0.65dB
