R11e-5HacT

Mikrotik

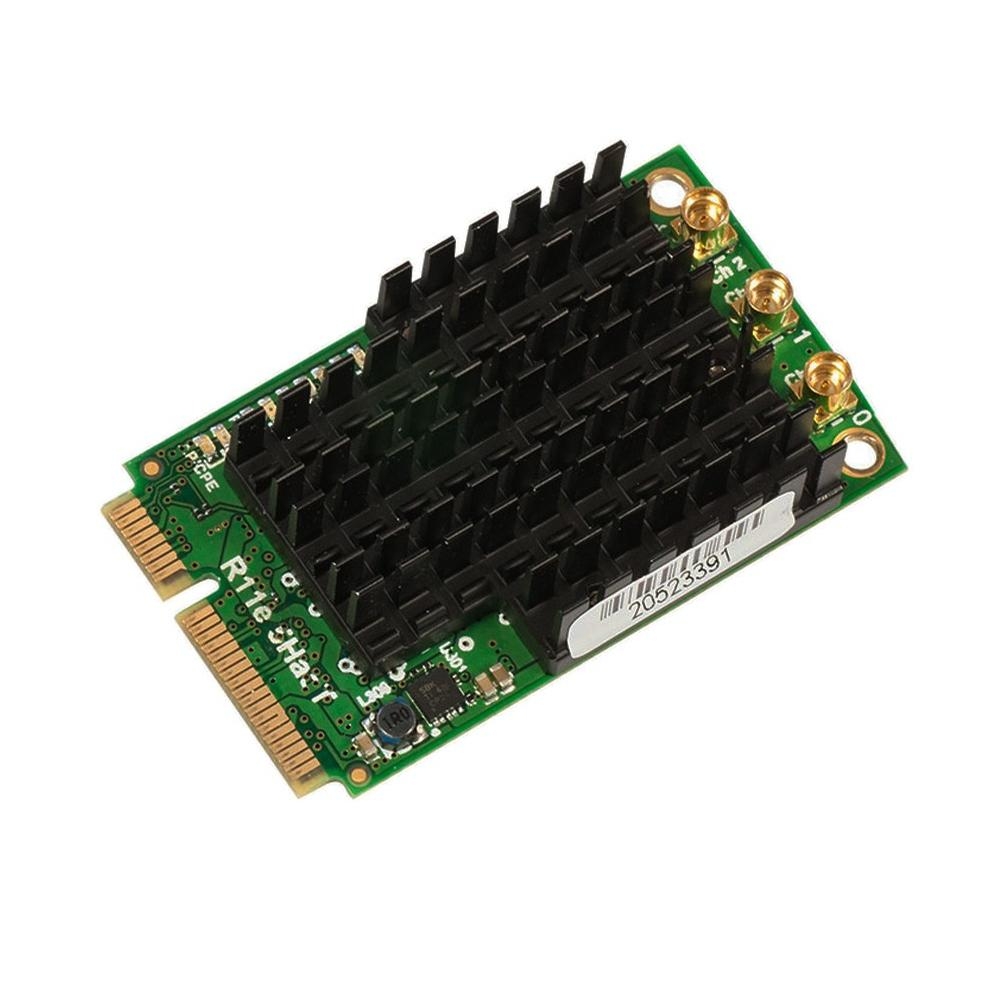

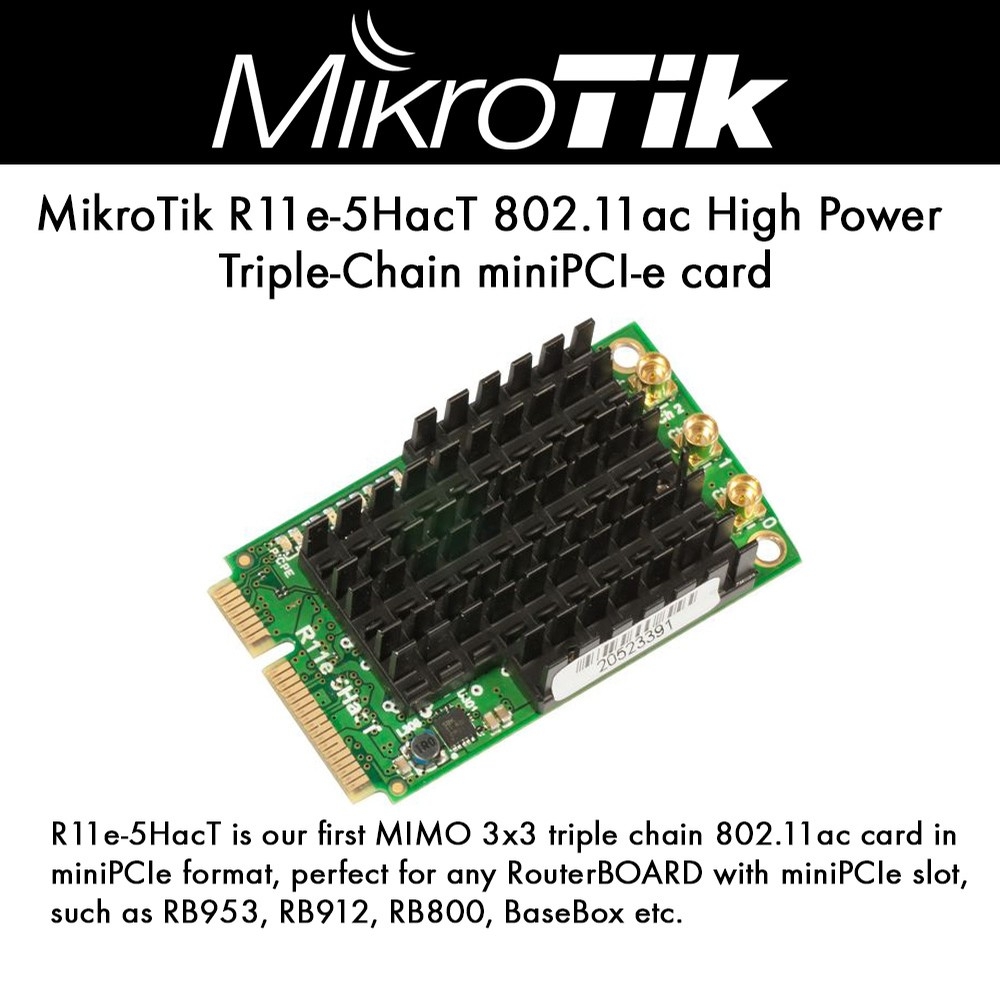

Mikrotik R11e-5HacT 5Ghz mini PCI-e card 802.11ac 1.3Gbps tripple chain 3 x MMCX


Product Highlights
  • The new AC standard is here, with up to 1.3Gbps datarate and 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before
  • R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc
  • The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment
  • 5Ghz miniPCI-e, 802.11ac/a/n tripple chain, 3x MMCX
  • QCA9880 Chipset, 4920-6100 MHz Bands, 1.3Gbps Data Rate, 5 W Max power consumption, 28dBm Output power

    • Model#: R11e-5HacT

    Sku: IT2404



    MSRP: $59.99


    Out of stock

    • The new AC standard is here, with up to 1.3Gbps datarate and 256-QAM modulation, and 80MHz channels. 802.11ac opens up new possibilities and speeds never possible before.
    • R11e-5HacT is our first MIMO 3x3 triple chain 802.11ac card in miniPCIe format, perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB800, BaseBox etc. The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

    Details

    • Product code: R11e-5HacT
    • Max power consumption: 5W
    • Data Rate: 1.3Gbps
    • 802.11a:  Yes
    • 802.11n:  Yes
    • Connector:  3x MMCX
    • Format:  miniPCI-e
    • Chipset:  QCA9880
    • Output power:  28dBm
    • Wireless standards:  802.11a/n/ac
    • 2GHz:  no
    • Bands:  4920-6100 MHz
    • 5GHz:  yes
    • Operating Temperature:  Starting -5C to +65C; Operating -40C to +70C
    • RouterOS compatibility:  Yes
