RB922UAGS5HPacDNM B1

Mikrotik

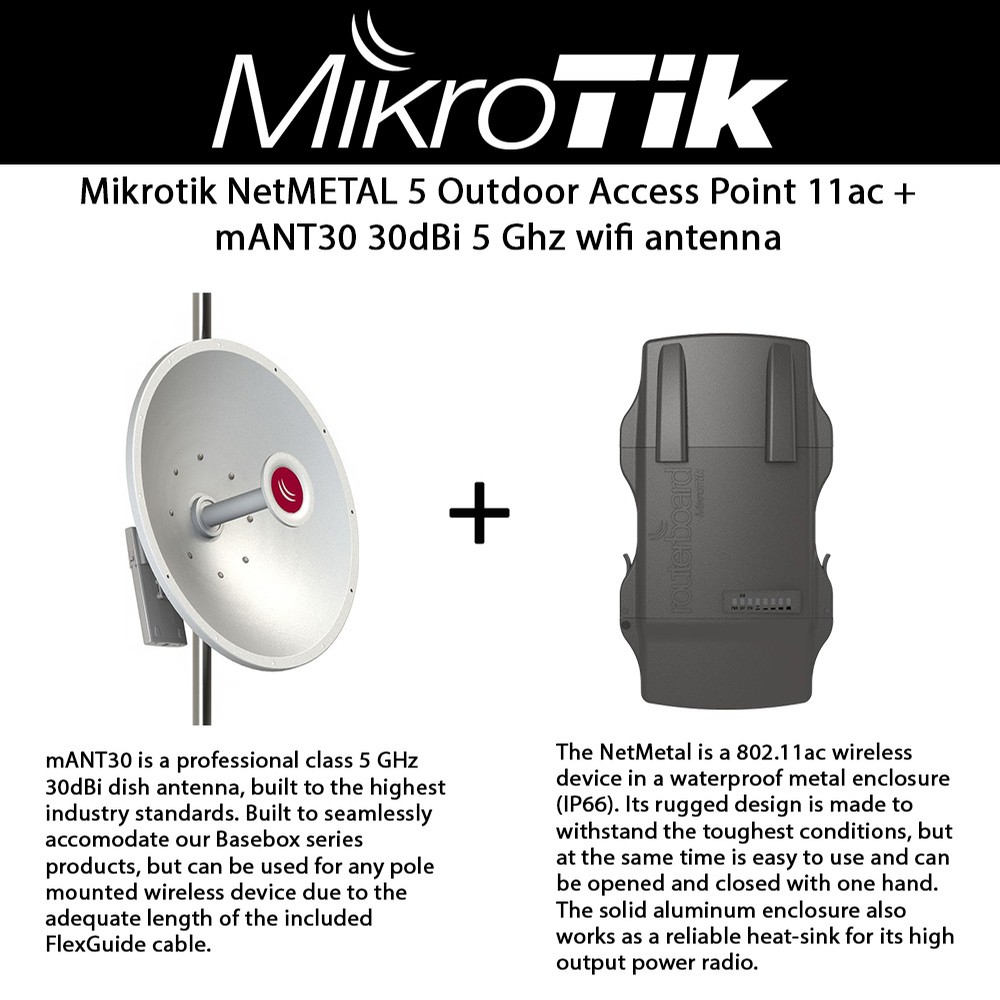

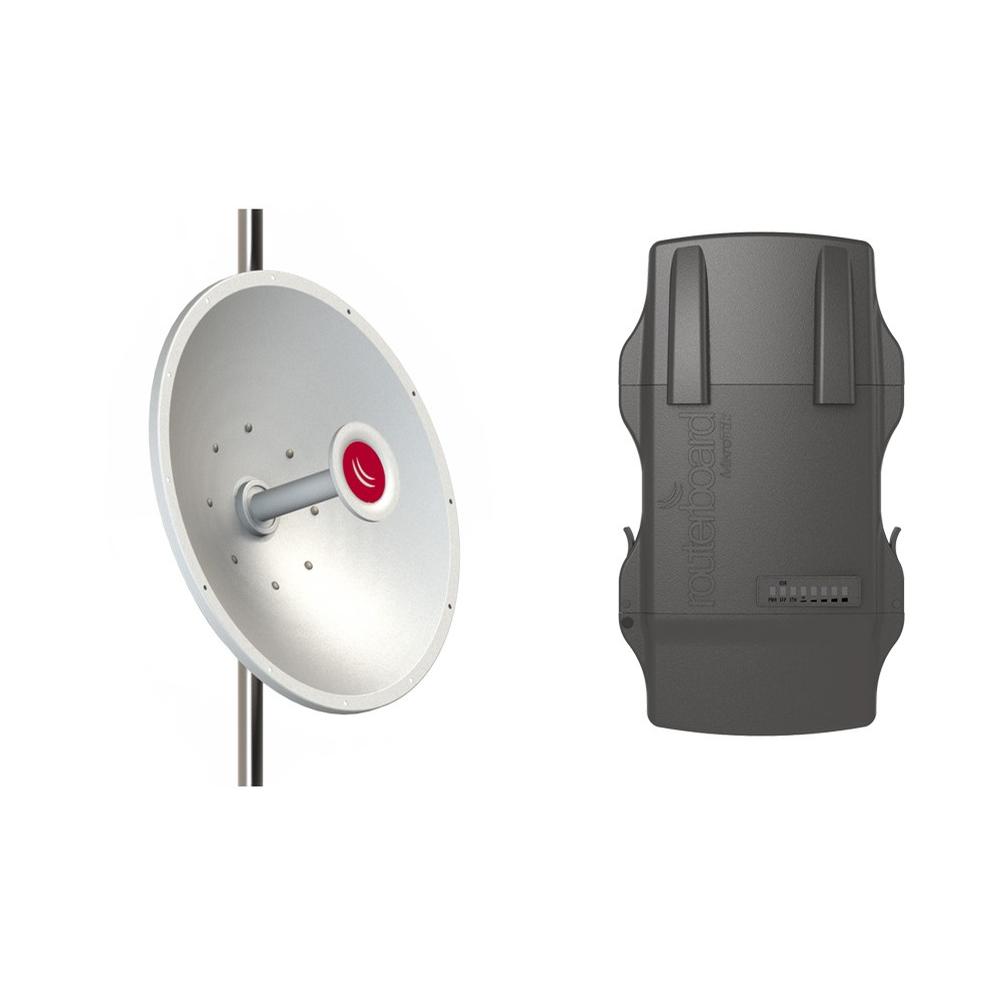

Mikrotik NetMETAL 5 Outdoor Access Point 11ac + mANT30 30dBi 5 Ghz wifi antenna



Product Highlights
  • This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas
  • The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license
  • mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards
  • Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable
  • Basebox wireless device pictured for illustrative purposes. It is not included
  • Model#: RB922UAGS5HPacDNM B1

    Sku: IT2396



    MSRP: $299.99


    Out of stock

    NetMETAL 5 (RB922UAGS-5HPacD-NM)

    • Mikrotik RB922UAGS-5HPacD-NM version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas. The NetMETAL 5 is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio. The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

    mANT30 (MTAD-5G-30D3-PA)

    • mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable. Two modifications are available - with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

    NetMETAL 5 (RB922UAGS-5HPacD-NM)

    • SFP DDMI - yes
    • CPU nominal frequency - 720 MHz
    • CPU core count - 1
    • Size of RAM - 128 MB
    • 10/100 Ethernet ports - None
    • 10/100/1000 Ethernet ports 1
    • MiniPCI slots - 0
    • MiniPCI-e slots - 1
    • Wireless chip model - QCA9882-BR4A-R
    • Wireless standards - 802.11ac
    • Number of USB ports - 1
    • Power Jack - 0
    • 802.3af support - no
    • Supported input voltage - 8 V - 30 V
    • PoE out - No
    • PoE in - Yes
    • Voltage Monitor - Yes
    • CPU temperature monitor - No
    • PCB temperature monitor - Yes
    • Dimensions - 143x247x48mm (PCB)
    • Operating System - RouterOS
    • License level - 4
    • Antenna gain DBI - No
    • Current Monitor - No
    • CPU - QCA9557-AT4A-R
    • Max Power consumption - 17 W
    • SFP ports 1
    • SFP+ ports - None
    • USB slot type - USB type A
    • Number of chains - 2



    mANT30 (MTAD-5G-30D3-PA)

    • Product code MTAD-5G-30D3
    • Antenna gain DBI 30dbi
    • Frequency Range 4.7-5.875 GHz
    • Polarization Vertical and Horizontal
    • Beamwidth 3 deg
    • VSWR ≤ 1.4 typ, ≤ 1.8 max
    • Port to Port Isolation >40dB min
    • Front-to-Back Ratio >30 dB
    • Cross Polarization >40 dB
    • Power Rating 100W
    • Impedance 50 ohms
    • Elevation adjustment range +/- 20 deg
    • Diameter x Depth 70 x 45cm (27.5 x 17.8in)
    • Weight 4.8kg (10.7 lbs)
    • Reflector Aluminum
    • Outdoor Rating ETSI EN 300 019-2-4
    • Standards EN 302 326 DN1, DN2, DN3, DN5
    • Wind Survivability 201kph (125mph)
    • Wind Load (125 mph) 181.4kg (400 lbs)
    • Operating Temperature -50°C to 80°C(-49°F to 158°F)
    • Pole Mount Diameter Range 3 to 7cm (1.2 to 2.75in)
    • Connector 2x RP-SMA Female (outside thread)
    • Packaged size 73x73x20cm (29x29x8in)
    • Packaged weight 7.5 kg (16.5 lbs)
