RB911G-5HPacD-NB BD3

Mikrotik

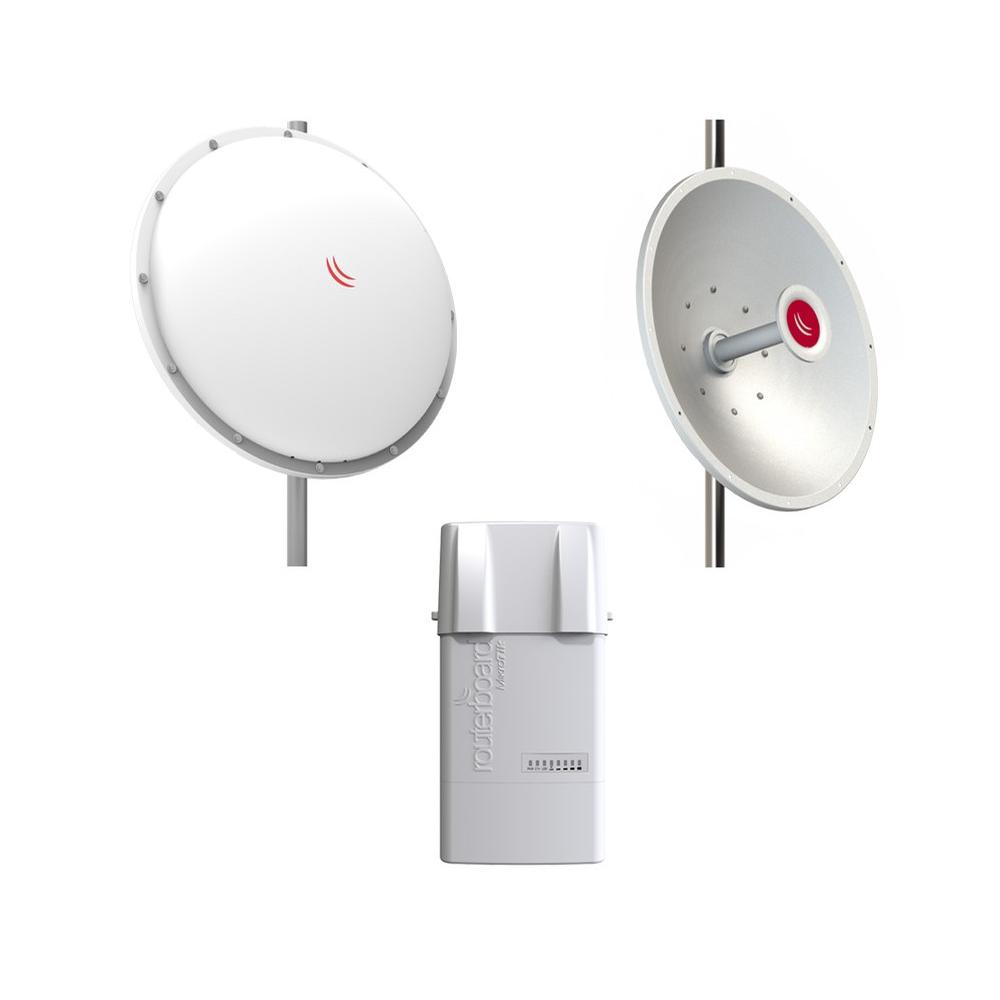

Mikrotik RB911G-5HPacD-NB NetBox 5 11ac + mANT 30dBi 5G-30D3-PA + MTRADC Radome



Product Highlights
  • The NetBox 5 is a outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture.
  • The NetBox 5 supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).
  • mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards.
  • Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.
  • MTRADC Radome reduces wind load, protects reflector surfaces from harsh environment, protects the antenna feed from falling objects, as well as positively affects the antenna sustainability and operational life.
  • Model#: RB911G-5HPacD-NB BD3

    Sku: IT2393

    Out of stock

    NetBox 5 (RB911G-5HPacD-NB)

    The NetBox 5 is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11a/n/ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).

    The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.



    mANT30 PA (MTAD-5G-30D3-PA)

    mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.



    MTRADC

    It reduces wind load, protects reflector surfaces from harsh environment, protects the antenna feed from falling objects, as well as positively affects the antenna sustainability and operational life. It's made from a special material that has a low dielectric constant. Wide range of temperature and direct sunlight won't affect it.

    NetBox 5 (RB911G-5HPacD-NB)

    Specifications

    • Product code    RB911G-5HPacD-NB
    • Architecture    MIPSBE
    • CPU    QCA9557
    • CPU core count    1
    • CPU nominal frequency    720 MHz
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    8-30 V
    • Max power consumption    11.5 W

    Wireless

    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz standards    802.11a/n/ac
    • Wireless 5 GHz chip model    QCA9882

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes



    mANT30 PA (MTAD-5G-30D3-PA)

    Specifications

    • Antenna gain    30 dBi
    • Beamwidth    +/-2.5 deg
    • Connector    2x RP-SMA Female (outside thread)
    • Cross Polarization    >40 dB
    • Diameter x Depth    70 x 45cm (27.5 x 17.8in)
    • Elevation adjustment range    +/- 15 deg
    • Frequency Range    4.7-5.875 GHz
    • Front-to-Back Ratio    >30 dB
    • Impedance    50 ohms
    • Operating Temperature    -50°C to 80°C(-49°F to 158°F)
    • Outdoor Rating    ETSI EN 300 019-2-4
    • Packaged size    73x73x20cm (29x29x8in)
    • Packaged weight    8.4 kg (18,5)
    • Polarization    Vertical and Horizontal
    • Pole Mount Diameter Range    3 to 10cm (1.2 to 3.9in)
    • Port to Port Isolation    >40dB min
    • Power Rating    100W
    • Reflector    Aluminum
    • Standards    EN 302 326 DN1, DN2, DN3, DN5
    • VSWR    ≤ 1.4 typ, ≤ 1.8 max
    • Weight    5.7kg (12.6 lbs)
    • Wind Load (125 mph)    181.4kg (400 lbs)
    • Wind Survivability    201kph (125mph)

    MTRADC

    • Radome Cover Kit for mANT, reduces wind load, increases antenna operational life
