CRS109-8G-1S-2HnD-IN

Mikrotik

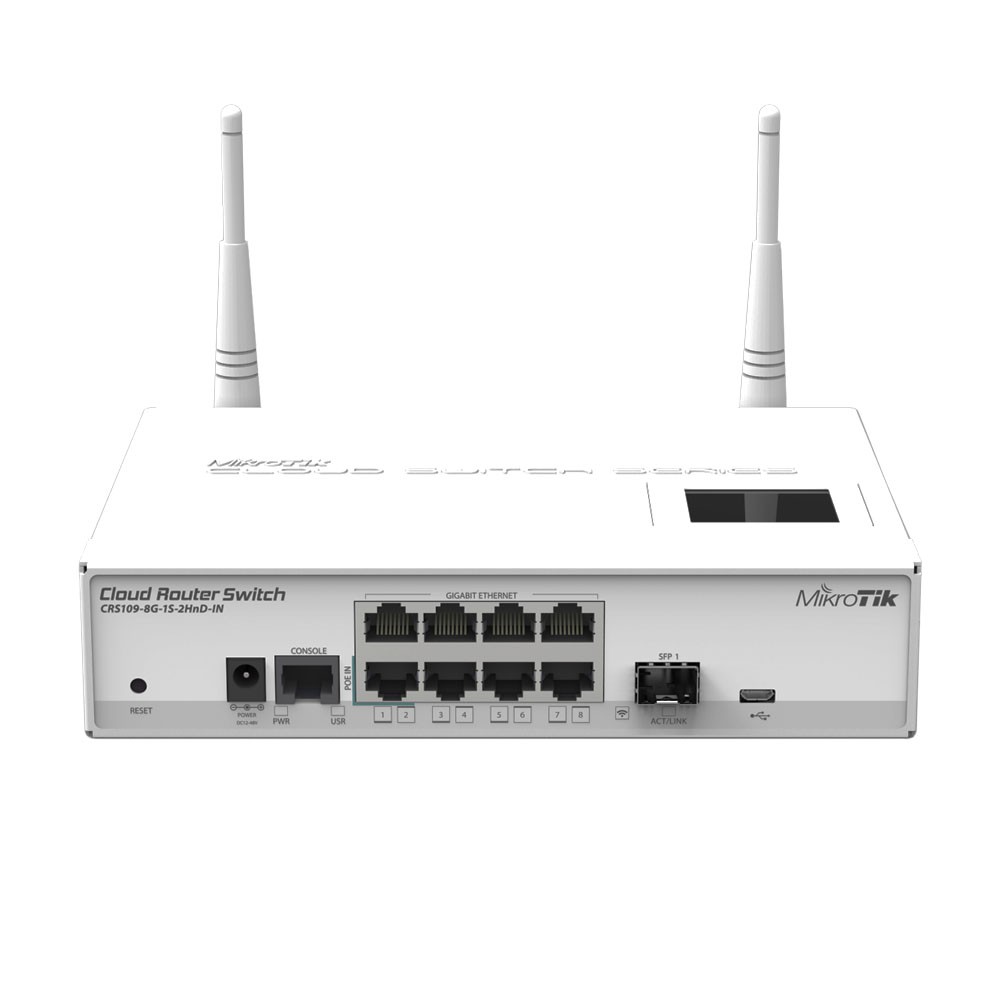

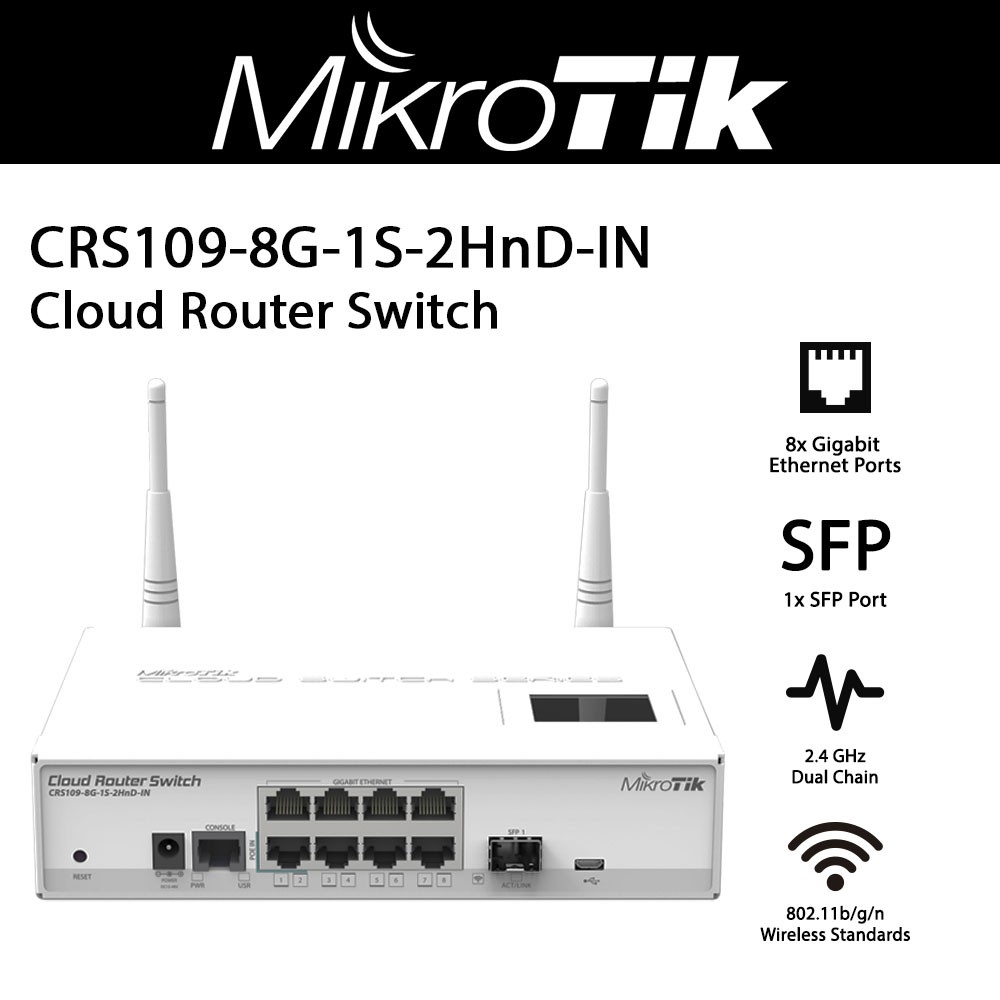

Mikrotik CRS109-8G-1S-2HnD-IN Cloud Router Switch with 8x Gigabit Ethernet Ports and 1x SFP Port


Product Highlights
  • Cloud Router Switch 109-8G-1S-2HnD-IN is new small size low cost member of Mikrotik's CRS series
  • It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant
  • CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS
  • All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes
  • Dimensions: 200 x 142 x 44 mm, Size of RAM: 128 MB, PoE in: Passive PoE, SFP ports: 1, PCB temperature and Voltage monitor

    • Model#: CRS109-8G-1S-2HnD-IN

    Sku: IT2364



    MSRP: $249.95


    Out of stock

    Mikrotik CRS109-8G-1S-2HnD-IN Cloud Router Switch 109-8G-1S-2HnD-IN with Atheros AR9344 CPU, 128MB RAM, 8xGigabit LAN, 1xSFP, 2.4Ghz 802.11b/g/n wireless, RouterOS L5, LCD panel, desktop case, PSU (802.11af/at compliant).

    Full wire speed switching, Configure ports as switch, or for routing If required, full RouterOS routing power right there Built in 802.11b/g/n Wireless AP 1000mW, Desktop case, Color touchscreen LCD.

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    200 x 142 x 44 mm
    • License level    5
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 65°C
    • PoE in    Passive PoE
    • 802.3af support    yes
    • PoE in input Voltage    10-57 V
    • Number of DC inputs    2 (PoE-IN, DC jack)
    • DC jack input Voltage    10-57 V
    • Max power consumption    13 W
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    4
    • Wireless 2.4 GHz chip model    AR9344
    • Wireless 2.4 GHz generation    Wi-Fi 4
    • 10/100/1000 Ethernet ports    8
    • SFP DDMI    yes
    • SFP ports    1
    • Serial port    RJ45
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    microUSB type AB
    • Max USB current (A)    1.5
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, FCC, EAC, ROHS
