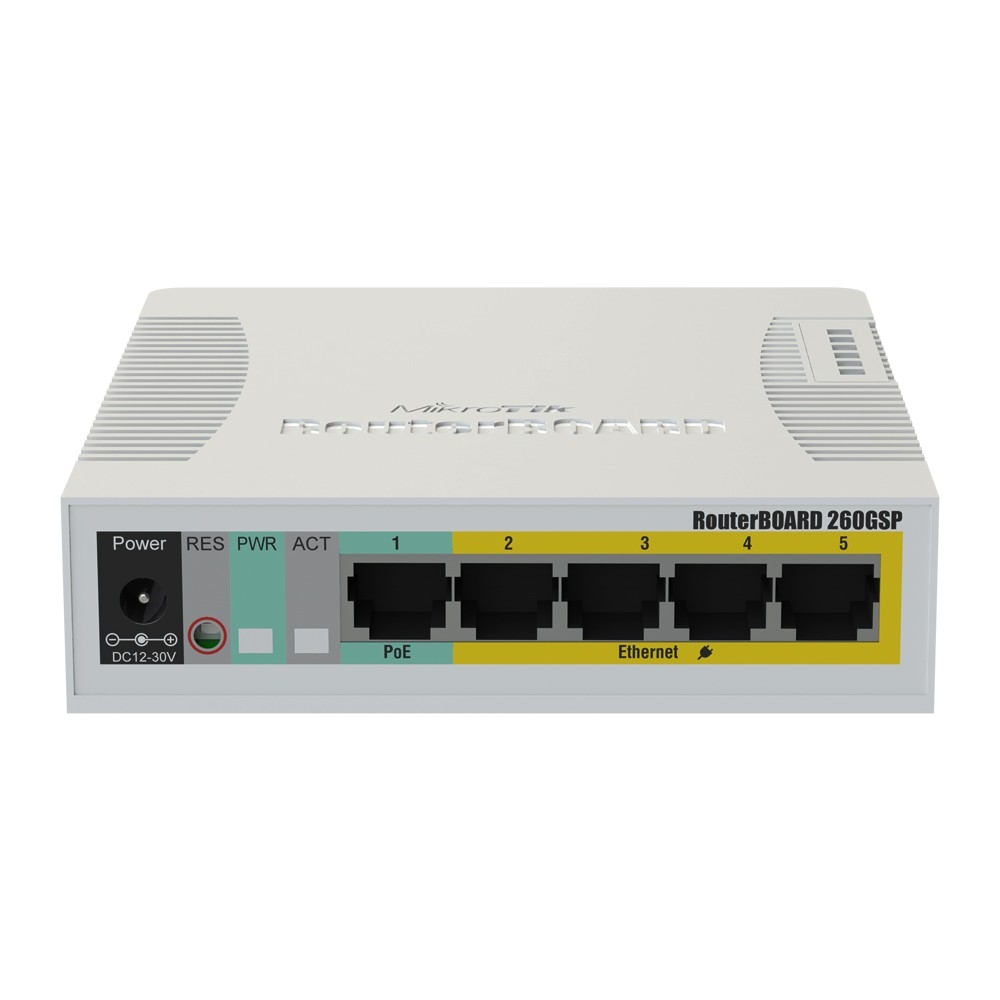

MODEL: RB260GSP (CSS106-1G-4P-1S)
The RB260GS is a small SOHO switch. Two models are available, the RB260GS, and the RB260GSP, which features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
Both devices have five Gigabit Ethernet ports and one SFP cage, switching is done by an Atheros Switch Chip.
The devices are running an operating system designed specifically for MikroTik Switch products - SwOS.
SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included).
SFP DDMI Yes
CPU core count 0
Architecture RISC
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 5
MiniPCI slots 0
MiniPCI-e slots 0
Number of USB ports 0
Memory Cards 0
Power Jack 9-28V DC
PoE Yes, Passive PoE output on ports 2-5. Max current 1A per port
Voltage Monitor No
PCB temperature monitor No
CPU temperature monitor No
Dimensions 113x139x28mm
Operating System MikroTik SwOS
Operating temperature range -25? to +65?
Current Monitor No
CPU None
SFP ports 1
SFP+ ports 0
