RB912UAG-2HPnD-OUT

Mikrotik


MikroTik RB912UAG-2HPnD-OUT 2.4GHz BaseBox2 802.11bgn Outdoor



Product Highlights
  • 600 MHz CPU, 64 MB RAM
  • 802.11b/g/n 2.4 GHz 2x2
  • (2)RP-SMA, (1) Gigabit, (1)miniPCle
  • RouterOS L4, Outdoor Enclosure
  • PoE, Pole & Rail Mounting, PSU
  • Model#: RB912UAG-2HPnD-OUT

    Sku: IT2350



    MSRP: $99.99


    Out of stock

    Your Price: $99.99


    MODEL: RB912UAG-2HPnD-OUT

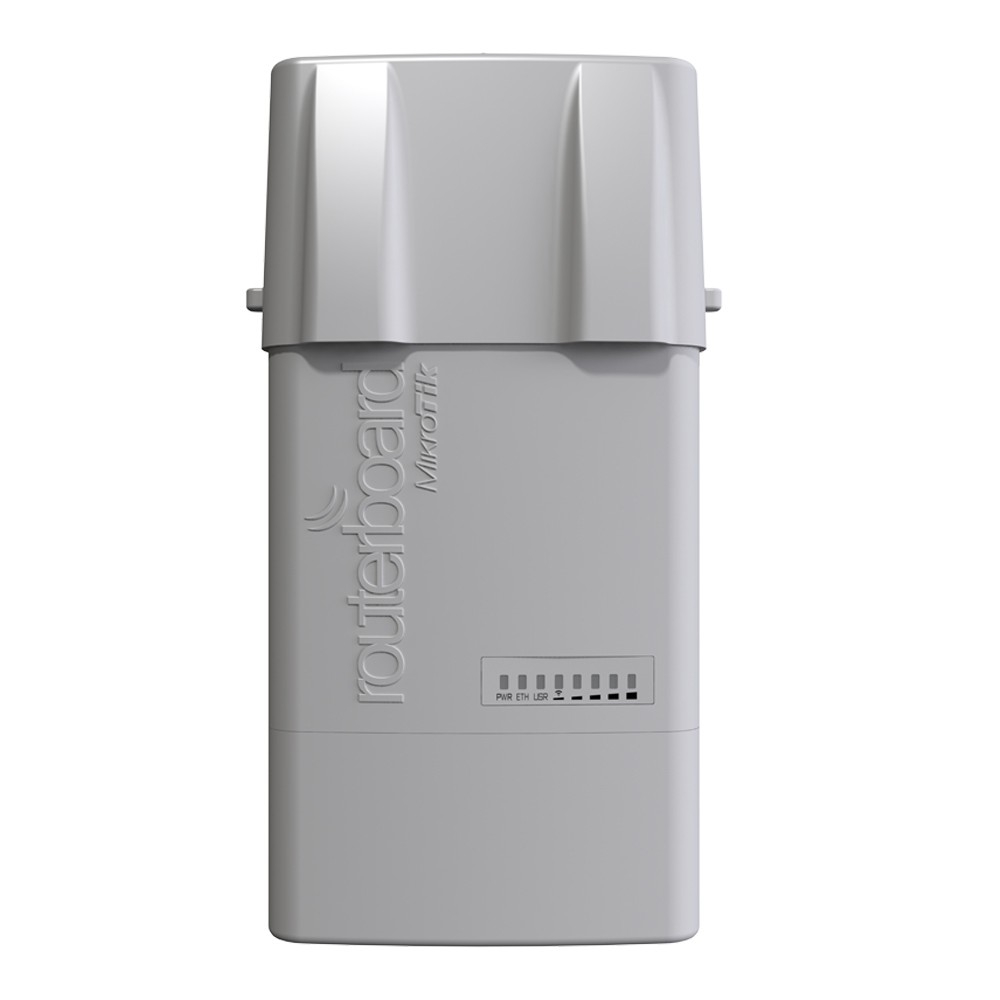

    The BaseBox in an outdoor wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

    The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind the protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

    • 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain, Outdoor case
    • Atheros AR9342 600MHz network processor
    • 64MB DDR onboard memory
    • One Gigabit port with Auto-MDI/X
    • Built in 2GHz 802.11b/g/n, 2x RP-SMA connectors
    • PoE: 8-30V DC on Ether1 (Non 802.3af). Consumption: 14W at 24V

    Specifications

    • Product code    RB912UAG-2HPnD-OUT
    • Architecture    MIPSBE
    • CPU    AR9342
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    64 MB
    • Storage size    64 MB
    • Storage type    NAND
    • Tested ambient temperature    -40°C to 70°C

    Powering

    • PoE in    Passive PoE
    • PoE in input Voltage    8-30 V
    • Number of DC inputs    1 (PoE-IN)
    • Max power consumption    10 W

    Wireless specifications

    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Wireless 2.4 GHz chip model    AR9342
    • Wireless 2.4 GHz generation    Wi-Fi 4

    Ethernet

    • 10/100/1000 Ethernet ports    1

    Peripherals

    • Number of SIM slots    1 Modem (Mini SIM)
    • MiniPCI-e slots    1
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Other

    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes

    Certification & Approvals

    • Certification    FCC, IC

    Datasheet

    PDF File MikroTik RB912UAG-2HPnD-OUT 2.4GHz BaseBox2 802.11bgn Outdoor
