RB951Ui-2HnD

Mikrotik

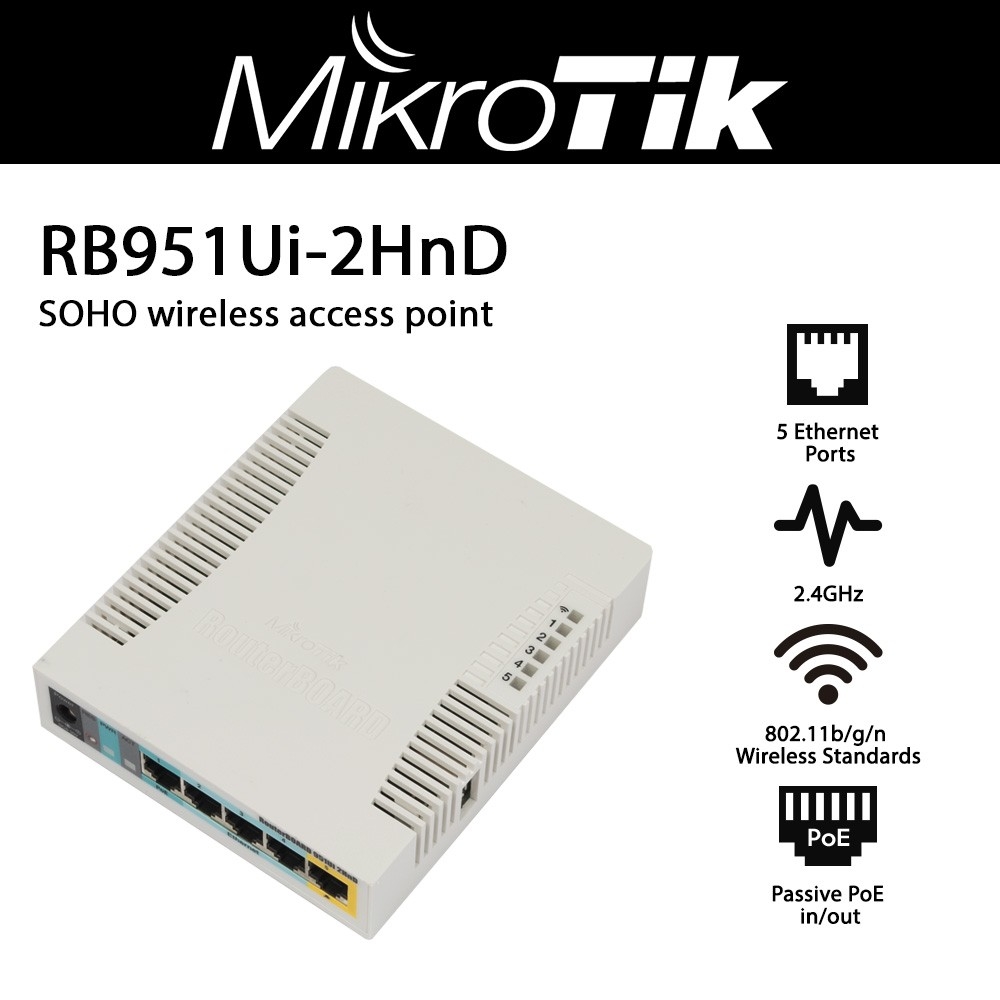

Mikrotik RB951Ui-2HnD 2.4GHz SOHO Wireless Access Point with Antennas Built in and 5 Ethernet Ports



Product Highlights
  • 600 MHz CPU, 128 MB RAM
  • (5)10/100 Ports
  • 2.4 GHz 802.11b/g/n 2x2
  • RouterOS L4, Plastic Case, Integrated Antenna, PSU
  • Model#: RB951Ui-2HnD

    Sku: IT2340

    Out of stock

    Your Price: N/A


    MODEL: RB951Ui-2HnD

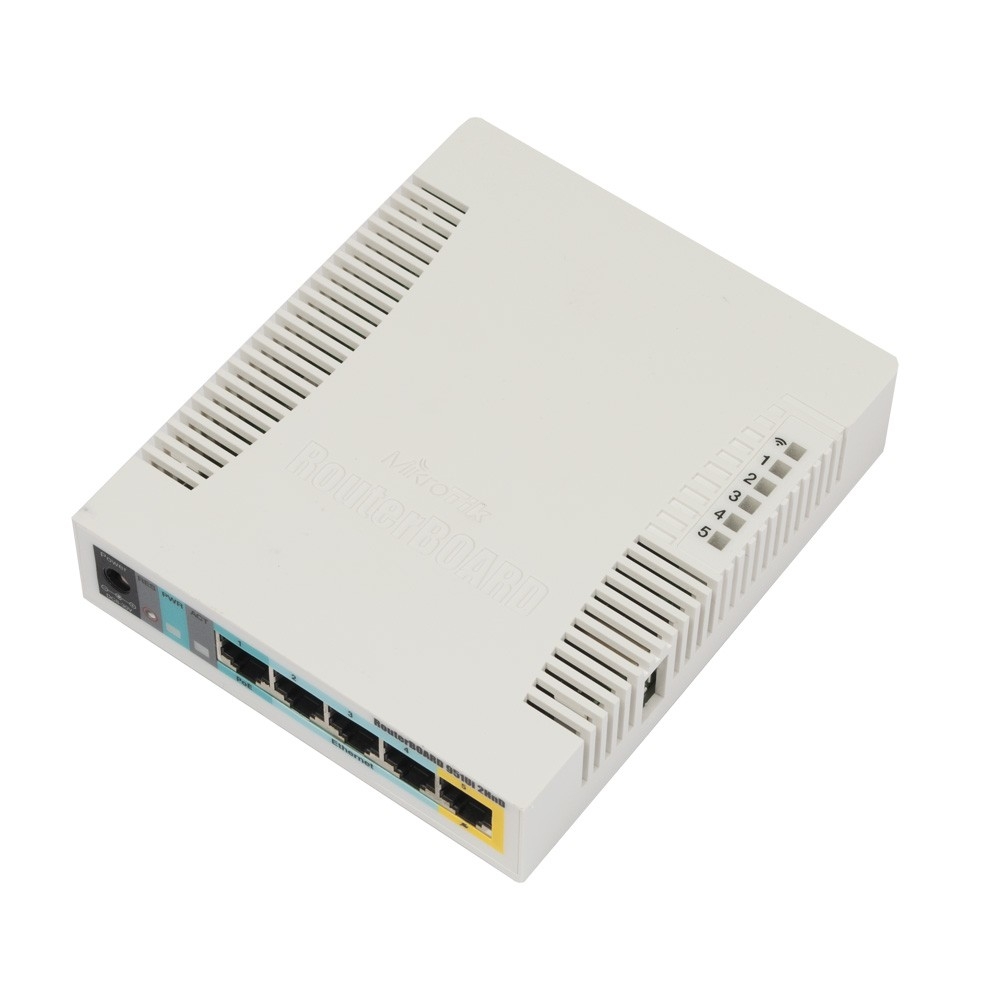

    The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports (10/100), one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built-in.

    It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

    Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

    • Architecture    MIPSBE
    • CPU    AR9344
    • CPU core count    1
    • CPU nominal frequency    600 MHz
    • Dimensions    113x138x29mm
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    128 MB
    • Storage type    NAND
    • Tested ambient temperature    -20C +50C
    • PoE in    Passive PoE
    • PoE out    Passive PoE
    • PoE in input Voltage    9-30 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    9-30 V
    • Max out per port output (input < 30 V)    500 mA
    • Max total out (A)    500 mA
    • Max power consumption    6.5 W
    • Antenna gain dBi for 2.4 GHz    2.5
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Wi-Fi generation    4
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz chip model    AR9344
    • 10/100 Ethernet ports    5
    • Number of USB ports    1
    • USB Power Reset    Yes
    • USB slot type    USB type A
    • Max USB current (A)    1

    Datasheet

    PDF File Mikrotik RB951Ui-2HnD 2.4GHz SOHO Wireless Access Point with Antennas Built in and 5 Ethernet Ports
