RB912UAG-5HPnD

Mikrotik


MikroTik RB912UAG-5HPnD 5GHz 600MHz 64MB 802.11a/n mPCIe L4



Product Highlights
  • 600 MHz CPU, 64 MB RAM
  • (1)Gigabit, (1)USB, (1)miniPCI-e
  • 802.11a/n 2x2 5 GHz
  • RouterOS L4, (2)MMCX Connectors
  • Model#: RB912UAG-5HPnD

    Sku: IT2334



    MSRP: $99.99

    In Stock

    Your Price: $99.99






    MODEL: RB912UAG-5HPnD

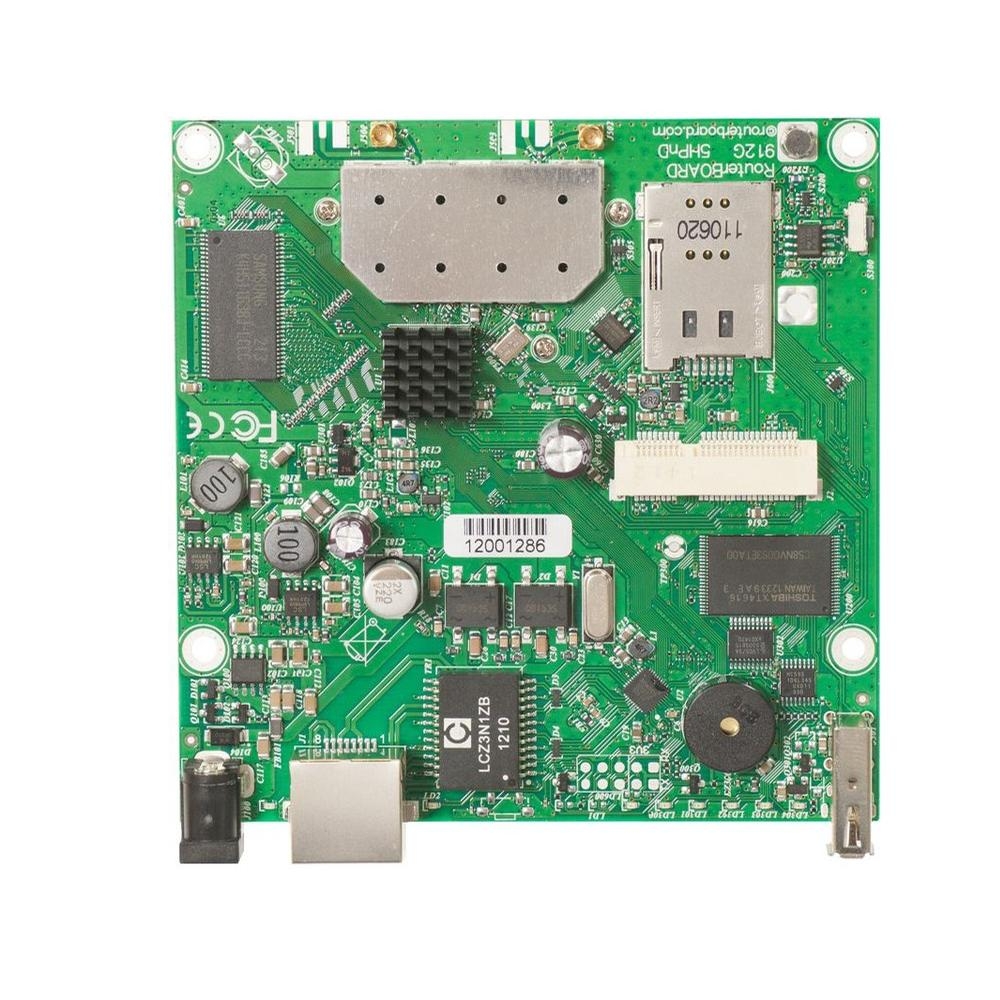

    The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

    The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports

    Features:

    • 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain
    • CPU - Atheros AR9342 600MHz network processor
    • Memory - 64MB DDR2 onboard memory
    • Data storage- onboard NAND memory chip
    • Ethernet - One Gigabit port with Auto-MDI/X
    • Wireless - Built in 5GHz 802.11a/n, 2x MMCX connectors
    • Extras - reset, beeper, signal and status LEDs, SIM slot (requires 3g miniPCIe card)
    • Expansion - miniPCIe slot for 802.11 or 3G (using 3G disables the USB port), USB 2.0 port
    • Power options - PoE: 8-30V DC on Ether1 (Non 802.3af)
    • Dimensions - 105x105mm; Weight: 67g
    • Max consumption - 14W at 24V
    • OS - MikroTik RouterOS, Level4 license (supports wireless AP mode)

    Specifications RB912UAG-5HPnD

    Architecture MIPSBE
    CPU AR9342
    CPU core count 1
    CPU nominal frequency 600 MHz
    Dimensions 105x105mm
    License level 4
    Operating System RouterOS
    Size of RAM 64 MB
    Storage size 128 MB
    Storage type NAND
    Tested ambient temperature -40°C .. +70°C tested
    Max Power consumption 12W
    PoE in Passive PoE
    PoE in input Voltage 8-30 V
    Number of DC inputs 2 (DC jack, PoE-IN)
    DC jack input Voltage 8-30 V
    Wireless 5 GHz number of chains 2
    Wireless 5 GHz standards 802.11a/n
    Wireless 5 GHz chip model AR9342
    10/100/1000 Ethernet ports 1
    Number of SIM slots 1 Modem (Mini SIM)
    MiniPCI-e slots 1
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1

    Datasheet

    PDF File MikroTik RB912UAG-5HPnD 5GHz 600MHz 64MB 802.11a/n mPCIe L4
