MikroTik CCR1036-12G-4S Cloud Core Router Gx36 4GB 12xGb 4xSFP
Product Highlights
Model#: CCR1036-12G-4S
Sku: IT2328
MSRP: $1,159.99
Out of stock
Your Price: $1,159.99
MODEL: CCR1036-12G-4S

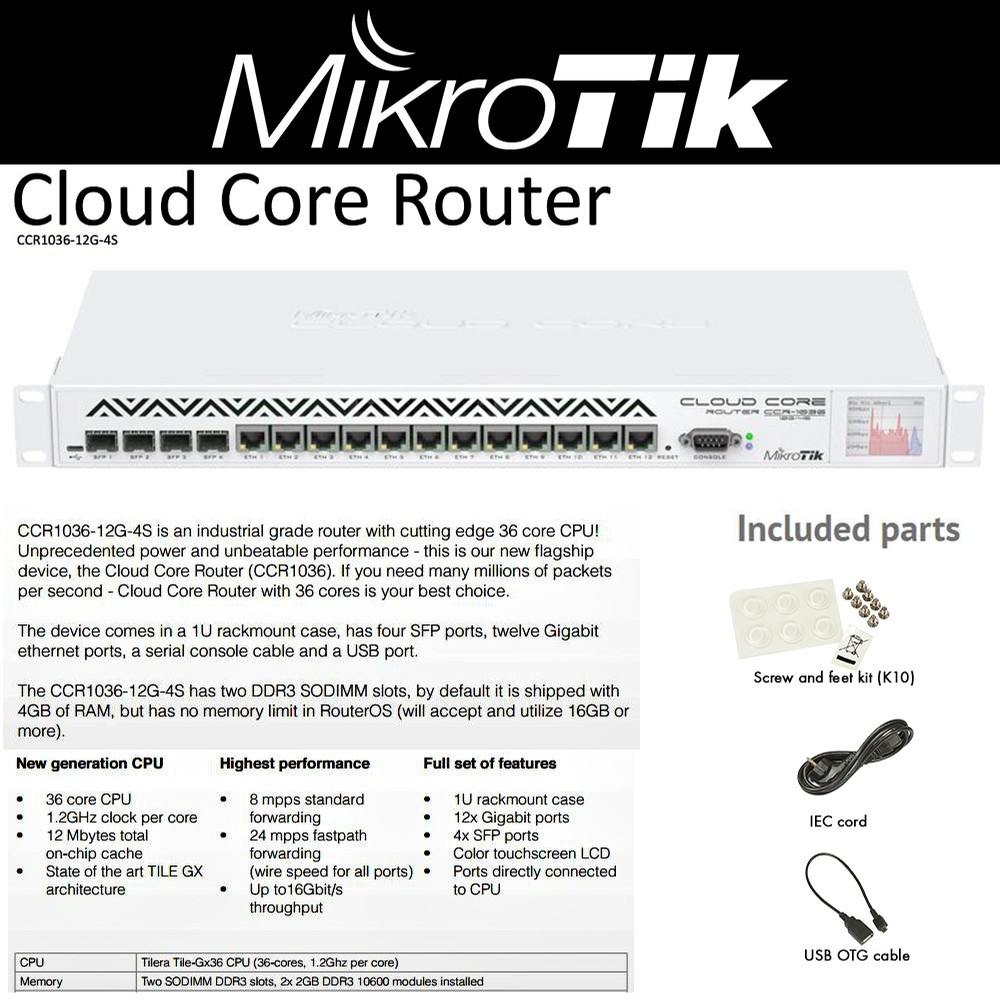

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

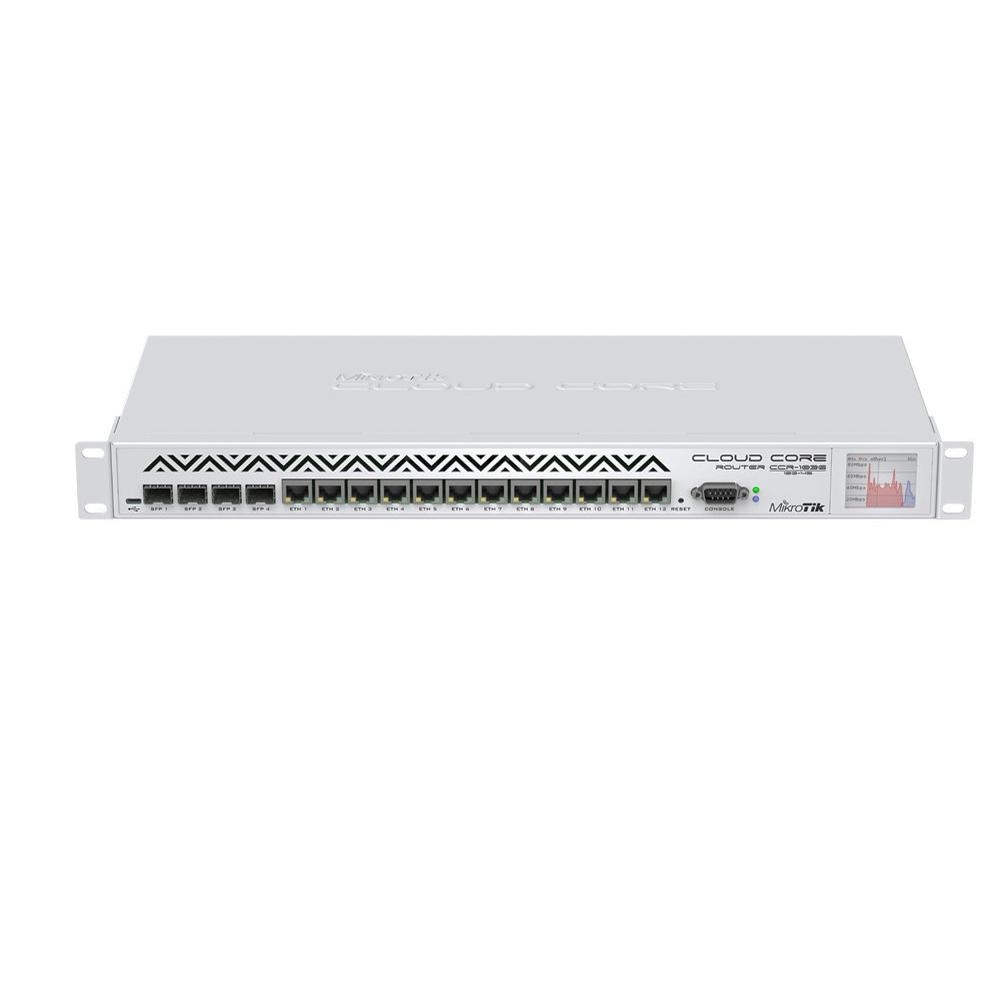

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.
The new r2 version has onboard 4GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!
Technical Description
- Specifications
- Product code: CCR1036-12G-4S
- Architecture: TILE
- CPU: TLR4-03680
- CPU core count: 36
- CPU nominal frequency: 1.2 GHz
- Dimensions: 443 x 193 x 44 mm
- RouterOS license: 6
- Operating System: RouterOS
- Size of RAM: 4 GB
- Storage size: 1 GB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -20°C to 60°C
- IPsec hardware acceleration: Yes
- Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Max power consumption: 60 W
- Cooling type: 2 fans
- Ethernet
- 10/100/1000 Ethernet ports: 12
- Fiber
- SFP DDMI: Yes
- SFP ports: 4
- Peripherals
- Serial console port: RJ45
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1
- Number of M.2 slots: 1
- Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Mode button: Yes
- Beeper: Yes
- Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP20
Datasheet
