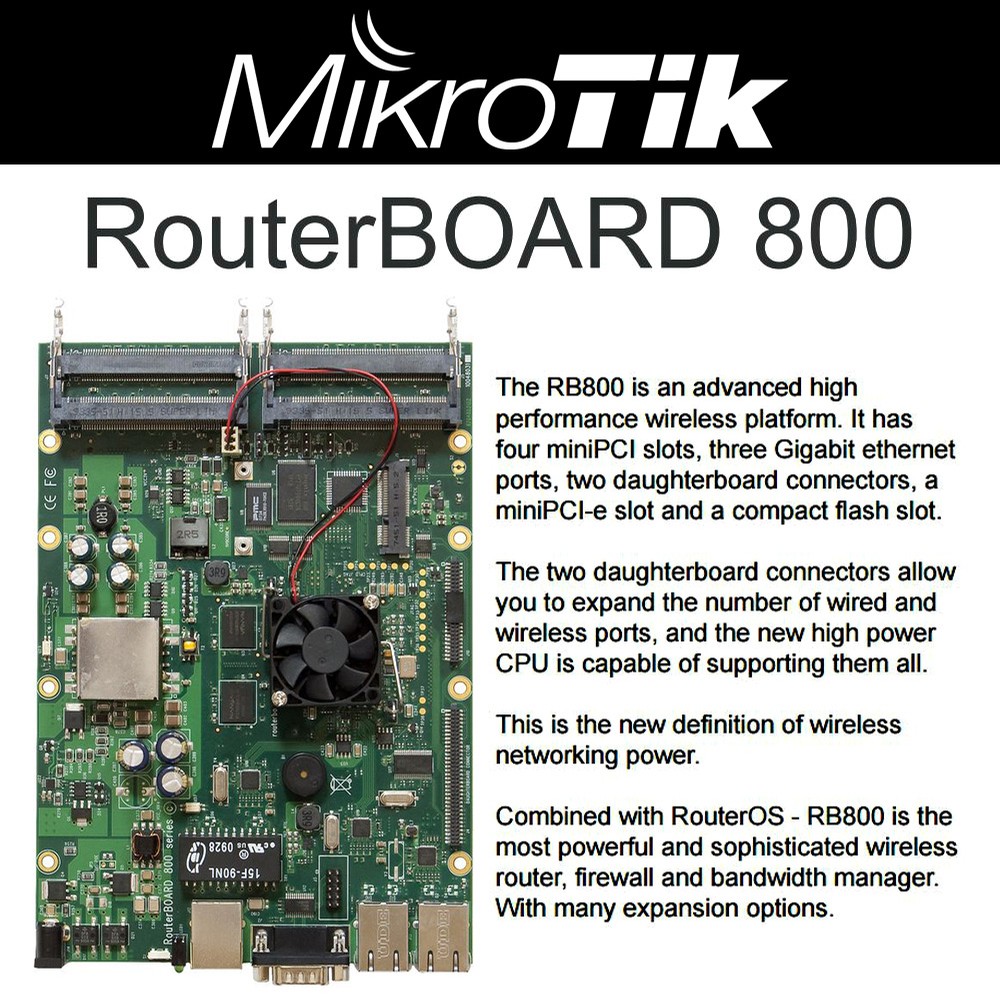

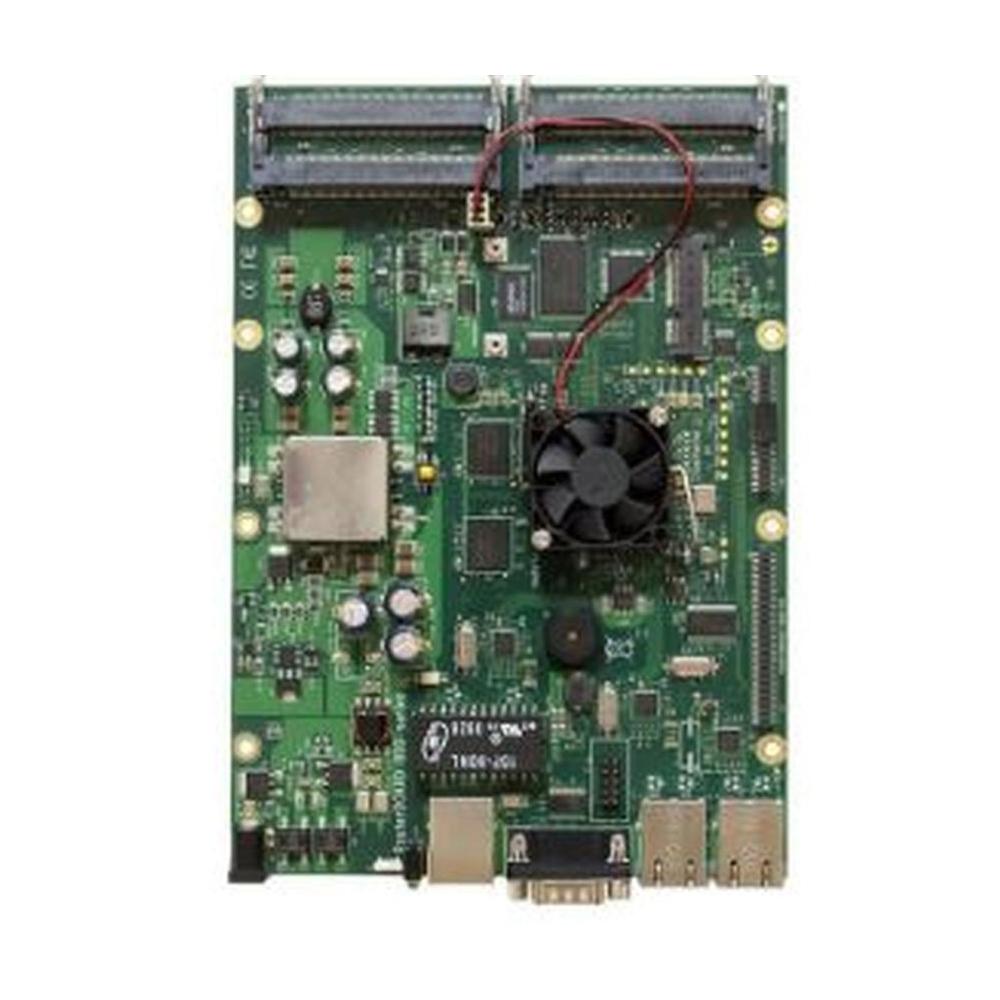

The RB800 is an advanced high performance wireless platform. It has four miniPCI slots, three Gigabit ethernet ports, two daughterboard connectors, a miniPCI-e slot and a compact flash slot.
The two daughterboard connectors allow you to expand the number of wired and wireless ports, and the new high power CPU is capable of supporting them all.
This is the new definition of wireless networking power. Combined with RouterOS - RB800 is the most powerful and sophisticated wireless router, firewall and bandwidth manager. With many expansion options.
CPU MPC8544 800MHz
Memory 256MB DDR2 SDRAM onboard memory
Boot loader RouterBOOT
Data storage NAND memory chip, CF slot on back
Ethernet Three 10/100/1000 Mbit/s Ethernet ports with Auto-MDI/X
miniPCI 4 x miniPCI, 1 x miniPCI-e
Expansion regular PCI daughterboard port, PCI-e daughterboard port
Extras Reset switch, Beeper, 4x Fan headers (JP1,JP3 = 3.3V, JP2,JP4 = 5.5V)
Serial port One DB9 RS232C asynchronous serial port, One serial port header
LEDs Power, 1x User LED
Power options Power over Ethernet: 36-56V DC (including power over datalines)
Power jack: 10-56V DC
Dimensions 14 cm x 20 cm (5.51 in x 7.87 in), 285 g
Operating System MikroTik RouterOS v4, Level6 license
Two port throughput 276000pps with small packets, and wire speed throughput on big packets
Temperature range -75? to +65?
RouterOS License Level 6
