PL-E410PUSA-US-BD1

Cambium Networks

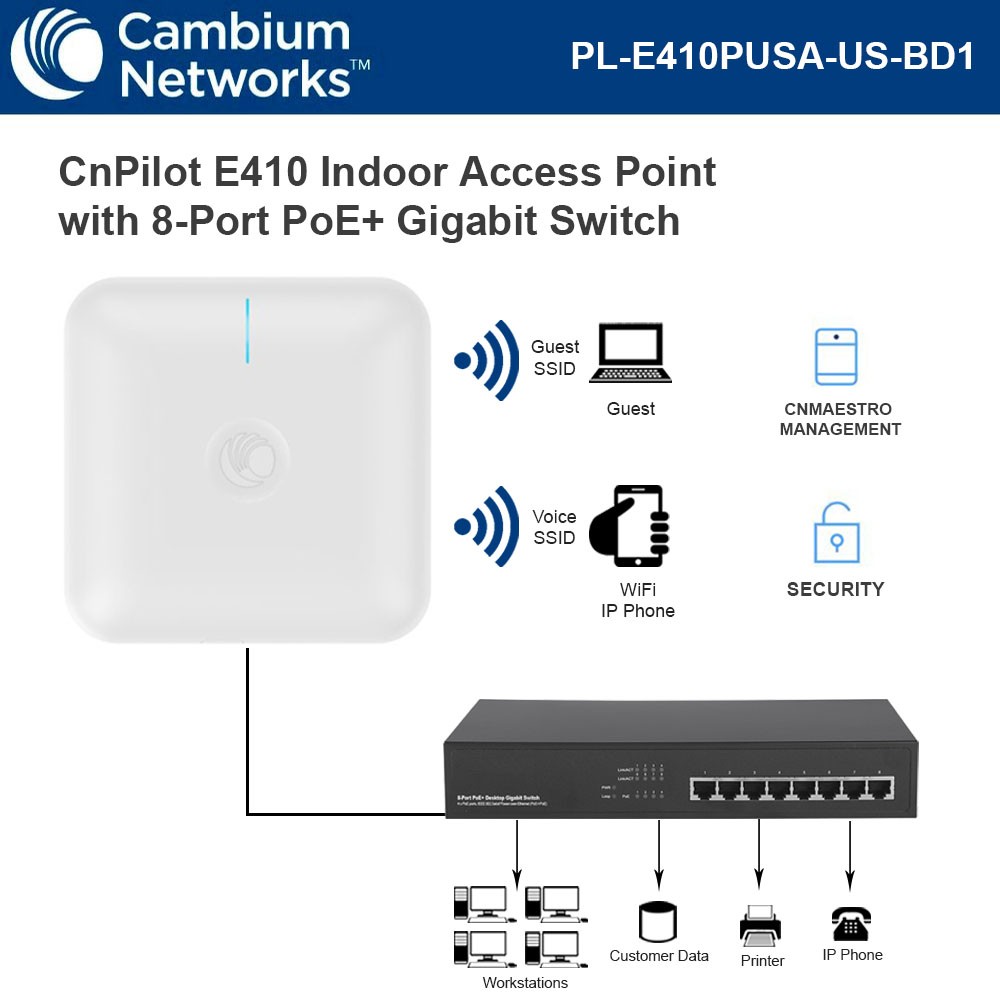

Cambium cnPilot E410 Indoor Access Point 802.11ac Wave2 2X2 and PoE for USA with Switch 8-Port PoE+



Product Highlights
  • The E410 is perfect for schools, malls, hotels, resorts, coffee shops, multi-dwelling units (MDUs), or any indoor environment that needs reliable, high performance access points.
  • The E410 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.
  • Monetize your Wi-Fi service with cnMaestro's Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway.
  • A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the E410 combines high density with high availability.
  • The 8-Port Gigabit PoE+ Switch  is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports.
  • Model#: PL-E410PUSA-US-BD1

    Sku: IT2267



    MSRP: $329.99


    Out of stock

    Model: PL-E410PUSA-US-BD1

                                                           Cambium cnPilot E410 Indoor Access Point 802.11ac Wave2 2X2 and PoE for USA with Switch 8-Port PoE+

    Future proof your indoor deployments with the compact, low profile, 802.11ac Wave 2 Multi-user MIMO (MU-MIMO) beamforming, high-speed E410 Enterprise Access Point. The E410 is perfect for schools, malls, hotels, resorts, coffee shops, multi-dwelling units (MDUs), or any indoor environment that needs reliable, high performance access points.



    CONTROLLER MANAGED + AUTONOMOUS

    Managed by Cambium's cnMaestro cloud controller or On-premises controller, the cnPilot E410 management includes:

    • Zero touch onboarding

    • Inventory tracking & monitoring

    • Mass configuration & upgrade

    • Dashboard views with alarms

    • Troubleshooting

    • Hierarchical device organization



    CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY

    • The E410 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.



    MONETIZE: VOUCHERS. SOCIAL LOGIN

    • Monetize your Wi-Fi service with cnMaestro's Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway.

    • These features - along with the ability to create time, rate and volume-limited traffic profiles - make the E410 ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.



    SERVICE AWARE WLANS FOR BETTER USER EXPERIENCE

    • Make sure that every connection to an access point is successful. When service to a critical resource such as an external Gateway or AAA is down, the E410 can turn off the impacted SSIDs, enabling client devices to redirect to a functional, neighboring access point.



    INDOOR/OUTDOOR WI-FI MESH. FLEXIBILITY

    • Indoor meshing across multiple E410s, or Indoor/Outdoor meshing across both the Indoor E410 and the Outdoor E500, offers convenient options to wirelessly expand Wi-Fi coverage.



    COVERAGE, CAPACITY. SPEED

    • The plenum-rated E410 packs a max transmit power of 25 dBm and is DFS certified to utilize additional reserved 5 GHz DFS channels - offering more flexibility than ever for both coverage and capacity.

    • Throughput management via airtime fairness, increased performance by Automatic Channel Scanning (ACS), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.



    HIGH DENSITY, HIGHLY AVAILABLE

    • A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the E410 combines high density with high availability.



    LICENSE-FREE HIGH PERFORMANCE. ONE LOW PRICE.

    • The 802.11ac wave 2 E410 comes with a free controller and no AP management license fees. There are no hidden charges.



    Switch 8-Port PoE+

    • The 8-Port Gigabit PoE+ Switch  is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.

    •  IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an PoE/PoE+ Splitter.

    • More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the 8-Port Gigabit PoE+ Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the 8-Port Gigabit PoE+ Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserve energy and save money.

    cnPilot E410 Specifications

    • Standards - EEE 802.11a/b/g/n/ac Wave 2 Others: 802.11 h/d/r/u/w
    • MIMO Streams - 2x2 MIMO streams
    • Frequency bands - 2.4 GHz: 2400-2484 MHz 5 GHz:5150-5850 MHz with DFS band support
    • Range - 180 m (650 Ft)
    • Power Supply - Standard 802.3af injector (supplied) or any PoE switch
    • Concurrent Clients - 256
    • Power Consumed - 13W (max)
    • Max Data Rates - 1.3 Gbps (1,267Mbps)
    • Dimensions - 170 x 170 x 41 mm (17x17x4.1cm)
    • SSID - 16 SSIDs across 2 radios
    • Weight - 384grams (0.384kg)
    • Antenna gain - 4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)
    • Temperature - 0°C to +50°C
    • Polarization - Dual-linear
    • Max TX Power - +25 dBm
    • Antenna Coverage - Omni (360°)



    Switch 8-Port PoE+ Specifications

    • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
    • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
    • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
    • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
    • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
    • All RJ45 ports with Auto-MDIX (auto uplink) support
    • Store and forward switching architecture
    • IEEE 802.3x flow control for full duplex
    • Supports up to 8192 MAC address entries
    • 128 kBytes buffer memory
    • Fanless design ideal for silent operation
    • Desktop-size metal case
