C000100W400A-BD1

Cambium Networks

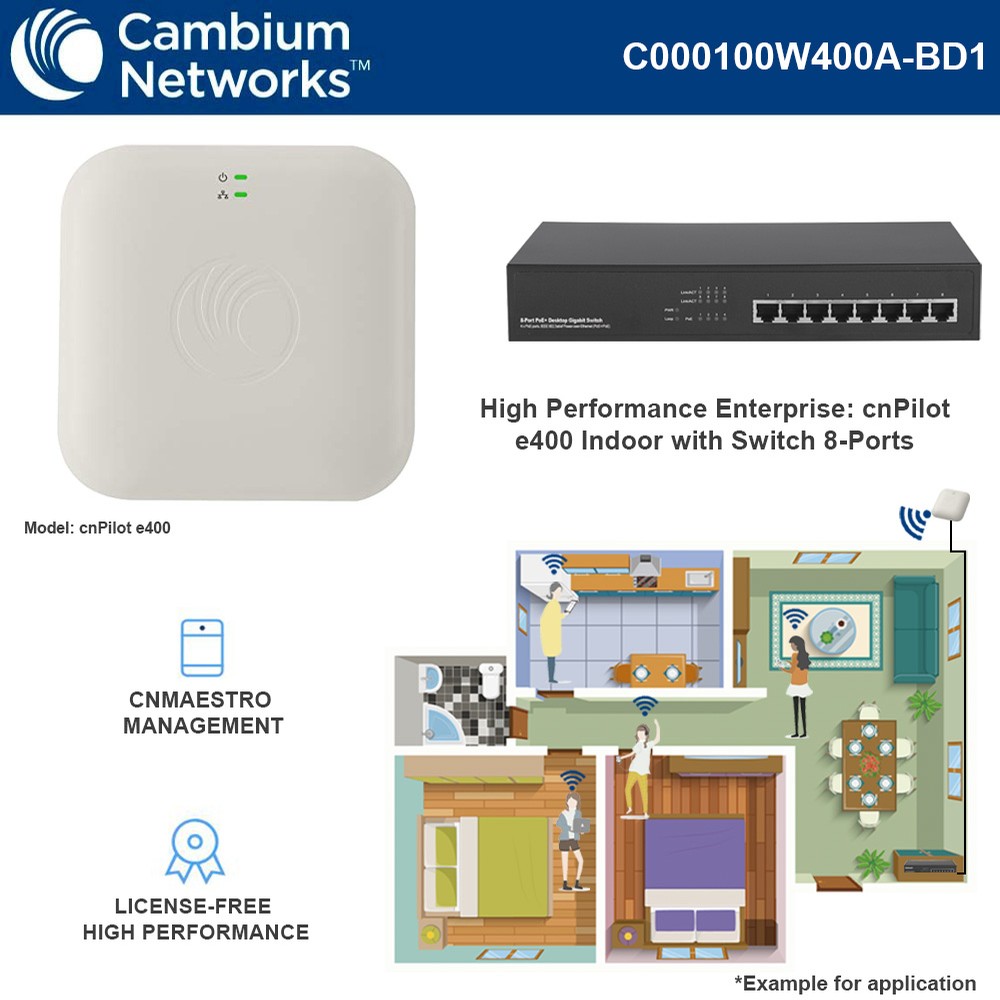

Cambium cnPilot e400 802.11ac Access Point FCC with PoE injector and Switch 8-Port PoE+



Product Highlights
  • Designed for wireless service providers of both enterprise and distributed enterprise networks, cnPilot e400 offers WLAN that is scalable, secure, and reliable.
  • The enterprise-grade 802.11ac access points support on-premise or cloud management in a solution that rolls out quickly, blends in to the environment and is easy to operate.
  • The cnPilot e400 has multiple management options available including cloud-based, SNMP and an enriched set of RESTful interfaces
  • Single dashboard view and rich statistics ensure rapid root cause detection and issue resolution
  • The 8-Port Gigabit PoE+ Switch  is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports.
  • Model#: C000100W400A-BD1

    Sku: IT2244



    MSRP: $328.99


    Out of stock

    Model: C000100W400A-BD1

                             cnPilot Enterprise E400 802.11ac Dual Band Wi-Fi Indoor Access Point with PoE Injector and CAT5 Ethernet Cable, FCC with Switch 8-Port PoE+

    Designed for wireless service providers of both enterprise and distributed enterprise networks, cnPilot™E400 offers WLAN that is scalable, secure, and reliable. The enterprise-grade 802.11ac access points support on-premise or cloud management in a solution that rolls out quickly, blends in to the environment and is easy to operate.



    Cloud Management: backed by Cambium’s cnMaestro cloud manager offering end to end visibility of the network and customer devices

    • Out-of-the box zero touch onboarding

    • Stateful alarms and dashboard views

    • Multiple management options available including cloud-based, SNMP and an enriched set of RESTful interfaces



    End-to-end Troubleshooting: Single dashboard view and rich statistics ensure rapid root cause detection and issue resolution

    • One-click functionality reveals the health of all network nodes related to the problem area

    • Troubleshoot end user client connectivity on any WLAN from a single console

    • No truck roll required to debug wired or wireless connectivity configurations



    Network Monetization:

    • - Integration with 3rd party external guest access solutions

    • - Onboard guest access portal for simple deployments



    Security:

    • - Support WPA2 Enterprise and WPA2 PSK

    • - Secure connection over HTTPS back to the cloud for management



    Switch 8-Port PoE+

    • The 8-Port Gigabit PoE+ Switch  is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.

    •  IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest the use of an PoE/PoE+ Splitter.

    • More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new energy efficient IEEE 802.3az technology, the 8-Port Gigabit PoE+ Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the switch can adjust the level of power output based on the length of the network cable connected to a particular port. With the 8-Port Gigabit PoE+ Switch you will enjoy maximum network performance, but when things slow down it automatically scales back power usage to conserve energy and save money.

    Cambium Networks cnPilot E400 C000100W400A:

    • Type: Dual band 2.4/5GHz 802.11ac Indoor APs
    • Stream: 2x2 MiMO
    • Range: 180m (600 Ft)
    • Concurrent Clients: 256
    • Max Throughput: +1.167Gpbs
    • SSID: 16
    • Antenna: Integrated Omni
    • Antenna Gain: 5dBi
    • Polarization: Dual Polarized
    • Antenna coverage: Omni
    • Ethernet Ports: 1 x Gigabit Ethernet (GigE)
    • Physical lock: Kensington key hole
    • Power Supply: 802.3af injector or Powered Ethernet switch
    • Power Consumed: 13W (max)
    • Temperature: 32-122deg F (0-50deg C)
    • Certification: FCC, CE
    • Tx Power: 25 dBm

    Click here:



    Switch 8-Port PoE+ Specifications

    • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
    • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
    • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
    • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
    • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
    • All RJ45 ports with Auto-MDIX (auto uplink) support
    • Store and forward switching architecture
    • IEEE 802.3x flow control for full duplex
    • Supports up to 8192 MAC address entries
    • 128 kBytes buffer memory
    • Fanless design ideal for silent operation
    • Desktop-size metal case
