Affordable Enterprise grade High density capable 802.11ac Indoor access points for Schools, Indoor public spaces, Malls, Hotels and Resorts (Hospitality), Coffee shops, Multi-dwelling units (MDUs) or just about any place indoor that needs reliable high performance Wi-Fi.
Managed by Cambium’s cnMaestro cloud controller or Onpremises controller, the cnPilot E400 management includes:
Zero touch onboarding
Dashboard views with Alarms
Hierarchical device organization
The E400 supports seamless roaming for up to 1,000 clients without needing a controller in the network! Hotspot portal hosting on the AP itself offers controller-less simplicity.
Monetize your Wi-Fi service: The controller driven Guest access feature supports splash page hosting with support for social login providing valuable demographic insight. These features along with the ability to create time and rate limited vouchers for temporary guest access makes the E400 ideal for Hotels, Coffee shops, Campgrounds, and Office guest Wi-Fi.
Nothing is more frustrating than connecting to an access point, but not getting to the Internet! When connection to a critical resource such as an external Gateway or AAA is down,the E400 can turn off the impacted SSIDs enabling client devices to select a different working neighboring access point.
Indoor meshing across multiple E400s or Indoor/Outdoor meshing across the Indoor E400 and the Outdoor E500 offers a convenient way to easily expand Wi-Fi coverage without wires.
The plenum rated E400, packs a max transmit power of25 dB, and is DFS certified to make use of additional reserved 5GHz DFS channels, offering more flexibility than ever for both coverage and capacity. Throughput management via Airtime fairness, increased performance by Automatic channel scanning (ACS), and higher client device speeds from Band steering ensure your network can adapt to the dynamics of ever changing client behaviors.
A capacity of 256 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the E400 combines high density with high availability.

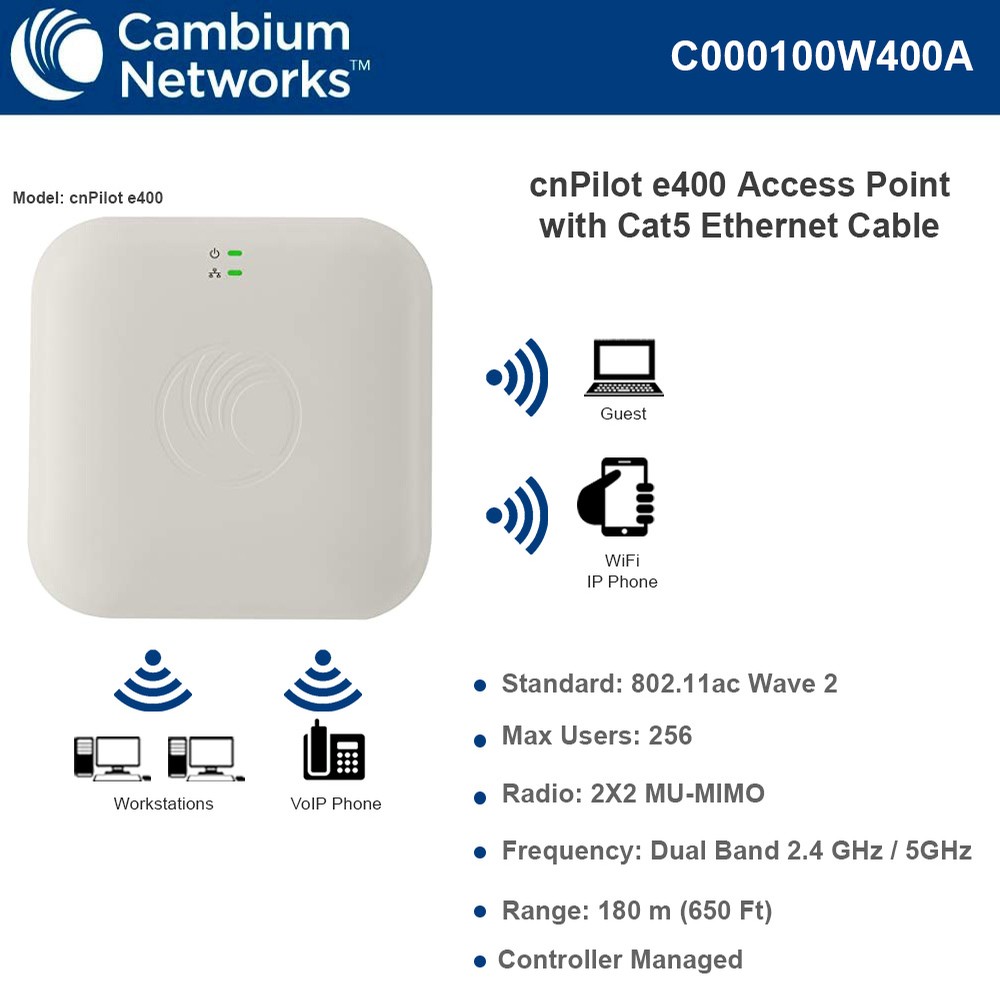

Cambium Networks cnPilot E400 C000100W400A:
Type: Dual band 2.4/5GHz 802.11ac Indoor APs
Stream: 2x2 MiMO
Range: 180 m (600 Ft)
Concurrent Clients: 256
Max Throughput: +1.167Gpbs
Antenna: Integrated Omni
Antenna Gain: 5dBi
Polarization: Dual Polarized
Antenna coverage: Omni
Ethernet Ports: 1 x Gigabit Ethernet (GigE)
Physical lock: Kensington key hole
Power Supply: 802.3af injector or Powered Ethernet switch
Power Consumed: 13W (max)
Temperature: 32-122deg F (0-50deg C)
Certification: FCC, CE
Tx Power: 25 dBm
