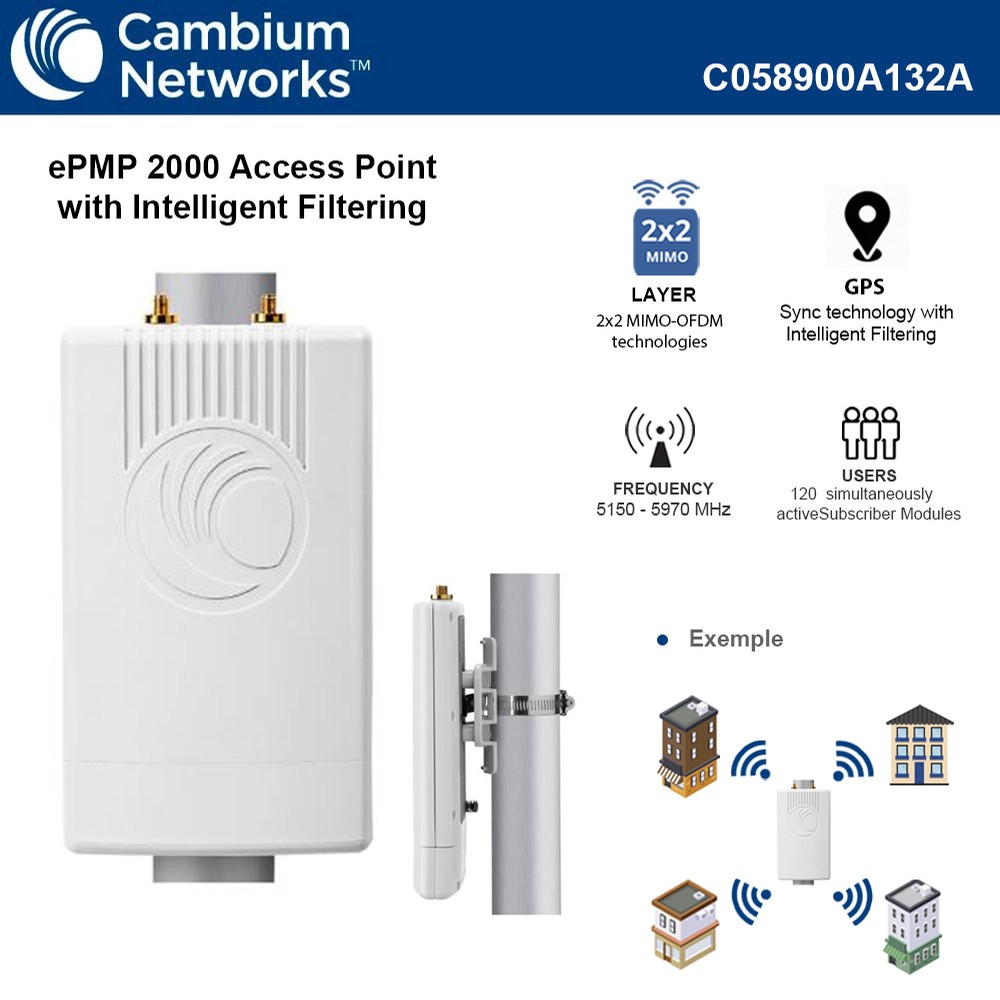

ePMP has set the standard for high performance, scalability, and reliability in harsh interference environments all at a compelling price. ePMP 2000 is the next-generation Access Point bringing interference tolerance to a whole new level with unique Hypure™ technology, which combines Intelligent Filteringand Smart Beamforming to deliver new levels of performance in the face of interference. The ePMP 2000 System consists of a high-performance, GPS-Synchronized Access Point (AP) Radio with Intelligent Filtering, a new compact high-performance Sector Antenna, and an optional Smart Antenna.
Intelligent Filtering improves both receive and transmit performance. It protects the network from off-channel interferers with a filter that dynamically moves around the channel. On the transmit side, it protects the RF environment by reducing off-channel transmission noise
Smart Beamforming drastically reduces the effects of on-channel interference. The System learns the locations of each served Subscriber Module (SM) and forms a narrow bean toward the desired SM while that radio is transmitting in the uplink. This reduces the gain on the uplink for on-channel interferers that are transmitting at an azimuth angle different than the SM, delivering performance gains never before seen.
• Frequency Reuse: Supports GPS Synchronization and SM Transmit power control to allow for Frequency Reuse
• Unmatched Performance and Scalability: With the efficient Cambium MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active Subscriber Modules can be served without performance degradation.
• Industry-Leading Interference Tolerance: The Intelligent Filtering capability on the Receive side makes the ePMP 2000 immune to the effects of strong off-channel interferers and on the Transmit side serves to reduce off-channel noise for better radio co-location.
Channel Spacing: Configurable on 5 MHz increments
Subscribers per Sector Up to 120
Frequency Range: 5150 - 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width: 5 | 10 | 20 | 40 MHz
MAC (Media Access Control) Layer: Cambium Proprietary and optionally standard 802.11n
Physical Layer: 2x2 MIMO/OFDM
Ethernet Interface: 100/1000BaseT, rate auto negotiated, 802.3at compliant
Powering Methods Supported: 56 V PoE (included), standard 802.3at PoE Supply, or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Nominal Receive Sensitivity (w/FEC) @ 20 MHz Channel: MCS0 = -93 dBm to MCS15 = -69 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @ 40 MHz Channel: MCS0 = -90 dBm to MCS15 = -66 dBm (per branch)
Modulation Levels (Adaptive): MCS0 (BPSK) to MCS15 (64QAM 5/6)
GPS Synchronization: Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Quality of Service: Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Antenna: Sector Antenna (C050900D021A) Availabile
Transmit Power Range: 0 to +30 dBm (combined, to regional EIRP limit) (1dB interval)
Sector Antenna Connection: 2 x 50 ohm, RP (Reverse Polarity) SMA
Beamforming Antenna Connection: 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
GPS Antenna Connection: 1 x 50 ohm, RP (Reverse Polarity) SMA
Surge Suppression: 1 Joule Integrated
Temperature: -30 C to +55 C (-22 F to +131 F)
Power Consumption: 20 W Maximum
Input Voltage: 44 V to 59 V
Weight: 0.7 kg (1.5 lbs) without brackets
Dimensions (L x W xH): 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
(1) Environmental Cover
(2) Mounting Brackets
