NBE-5AC-Gen2-US-BD2

Ubiquiti

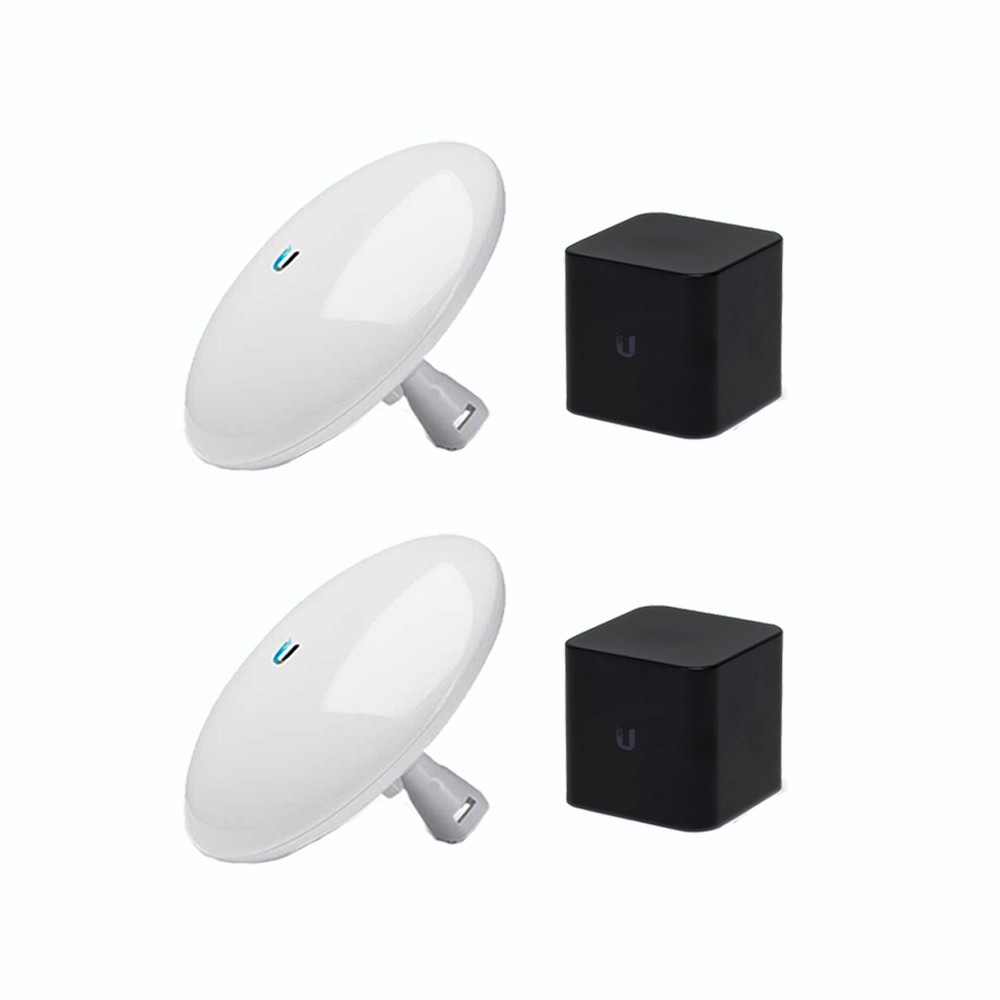

Ubiquiti NanoBeam 5ac Gen2 5Ghz 19dBi CPE Wireless airMAX 2units with airCube ac Home Wi-Fi 2units



Product Highlights
  • Ubiquiti NanoBeam AC NBE-5AC-Gen2-US 5GHz High-Performance airMAX ac Bridge CPE with Dedicated Management Radio (2-Pack)
  • Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
  • The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Ubiquiti airCube ac ACB-AC-US airMAX 802.11ac Dual-Band Home Wireless Access Point PoE 24V Indoor/Outdoor (2-Pack)
  • With a compact design and integrated 24V PoE passthrough, the airCube is a home Wi-Fi access point designed to interoperate with airMAX CPEs and is available in two models.
  • Model#: NBE-5AC-Gen2-US-BD2

    Sku: IT2213

    Out of stock

    Model: NBE-5AC-Gen2-US  (2-Pack)

    NanoBeam AC High-Performance airMAX ac Bridge

    Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeamAC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.



    • Management Wi-Fi Radio

    The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Surge Protection

    The NanoBeam AC features enhanced protection against ESD events.

    • Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.





    Model: ACB-AC (2-Pack)

    Introduction

    Ubiquiti Networks introduces the airCube, a cost-effective wireless access point for use in your customer deployments.

    Wireless Performance:

    • airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
    • 2.4 GHz radio band Speeds of up to 300 Mbps
    • 5 GHz radio band Speeds of up to 866.7 Mbps



    Model: NBE-5AC-Gen2-US

    • Dimensions:  189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
    • Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    • Max. Power Consumption 8.5W
    • Gain 19dBi
    • Networking Interface (1) 10/100/1000 Ethernet Port Wi-Fi for Management
    • Processor Specs Atheros MIPS 74Kc, 720 MHz
    • Memory128 MB DDR2, 8 MB Flash





    Model: ACB-AC

    • (4) Gigabit Ethernet Ports
    • 24V PoE Passthrough for airMAX CPE
    • Dual-Band, 802.11ac, 2x2 MIMO Technology
    • Up to 1167 Mbps Wi-Fi Data Throughput
    • Up to 300 Mbps in the 2.4 GHz Radio Band
    • Up to 866.7 Mbps in the 5 GHz Radio Band
    • Powered by 24V Passive PoE or Included Power Adapter


    Product Specifications

    • Weight: 280g
    • Supported Power Voltage: 22-26V
    • Max Power Consumption: 8.5W
    • PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
    • Management Interface: Wi-Fi / Ethernet
    • Max. TX Power: 22 dBm
    • Enclosure Characteristics: Black Plastic
    • Operating Temperature: -10 to 50° C (-14 to 122° F)
    • Operating Humidity: 5 to 95% Non-condensing
