Ubiquiti NanoBeam ac Gen2 2units 5GHz airMAX ac Bridge CPE with Ethernet Surge Protector 2units

NBE-5AC-Gen2-US-BD1

Ubiquiti

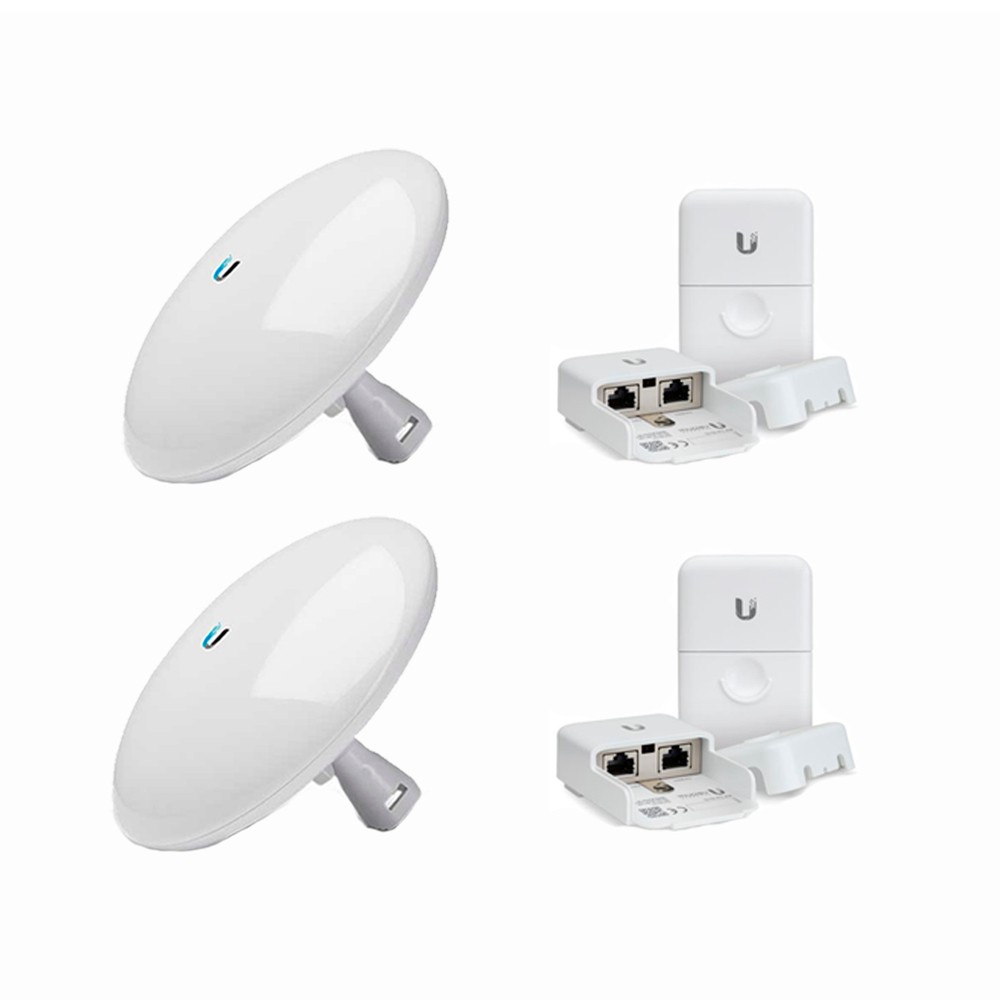

Ubiquiti NanoBeam ac Gen2 NBE-5AC-Gen2-US 5GHz High-Performance airMAX ac Bridge CPE (2-Pack) with Ethernet Surge Protector Gen 2 ETH-SP-G2 for Outdoor High-Speed Networks (2-Pack)


Product Highlights
  • Ubiquiti NanoBeam AC NBE-5AC-Gen2-US (2-Pack) 5GHz High-Performance airMAX ac Bridge CPE with Dedicated Management Radio
  • Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
  • The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Ubiquiti Ethernet Surge Protector Gen 2 ETH-SP-G2 (2-Pack) Ethernet to Ethernet Grounded ESD Protection
  • The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps.
  • Model#: NBE-5AC-Gen2-US-BD1

    Sku: IT2205.6735.148506



    MSRP: $229.95

    Out of stock

    Your Price: $229.95


    Models: NBE-5AC-Gen2-US (2-Pack)

    NanoBeam AC High-Performance airMAX ac Bridge

    Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeamAC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.



    • Management Wi-Fi Radio

    The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Surge Protection

    The NanoBeam® AC features enhanced protection against ESD events.

    • Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.





    Model: ETH-SP-Gen2 (2-Pack)

    Ethernet Surge Protector Grounded ESD Protection

    The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.



    • ESD Protection for Outdoor High-Speed Networks

    Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.

    The ETH-SP-G2 is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.



    • ESD Protection for Outdoor PoE Devices

    Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.

    • Additional ESD Protection

    All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.



    Models: NBE-5AC-Gen2-US (2-Pack)

    • Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
    • Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    • Max. Power Consumption 8.5W
    • Gain 19dBi
    • Networking Interface (1) 10/100/1000 Ethernet Port Wi-Fi for Management
    • Processor Specs Atheros MIPS 74Kc, 720 MHz
    • Memory 128 MB DDR2, 8 MB Flash



    Model: ETH-SP-Gen2 (2-Pack)

    • Dimensions 91 x 61 x 32.5 mm
    • Weight 80g
    • Interface Connections 2x RJ45
    • ESD/EMP Protection 100V/s to 1kV/us
    • DC Spart Over Voltage - 90V @ 100V/s
    • Maximum Impulse Spark over Voltage - 700V @ 1kV/us
    • Discharge Current 5kA Maximum / 0.5kA Normal
    • Maximum Insulation Resistance 1Gohm @50V
    • Maximum Capacitance 1.0 pF @ 1MHz
    • Data Line Protection Gigabit Ethernet
    • IEEE 802.3af POE Support  Yes
