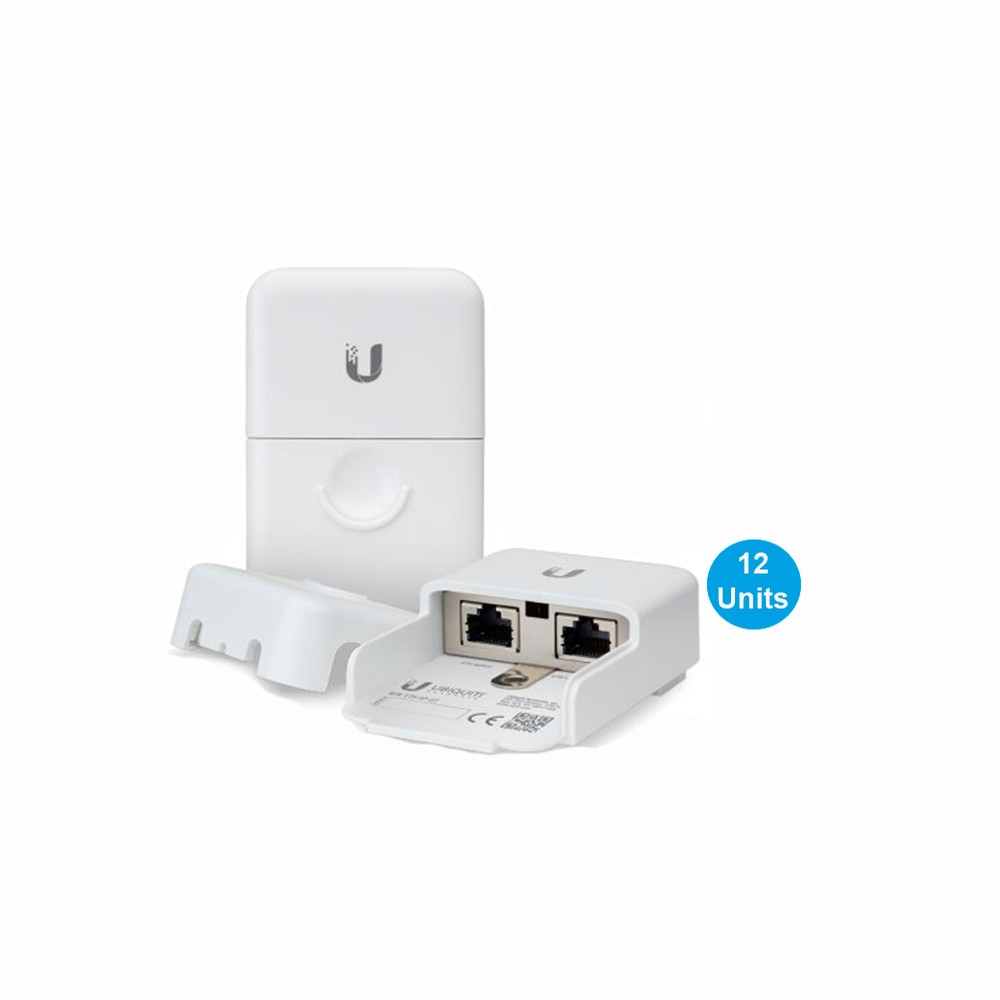

Model: ETH-SP-Gen2 (12 Pack included)
The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.
Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
ESD Protection for Outdoor PoE Devices
Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.
Additional ESD Protection
All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.
91 x 61 x 32.5 mm
Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us
Over Voltage - 90V @ 100V/s
over Voltage - 700V @ 1kV/us
5kA Maximum / 0.5kA Normal
1.0 pF @ 1MHz
