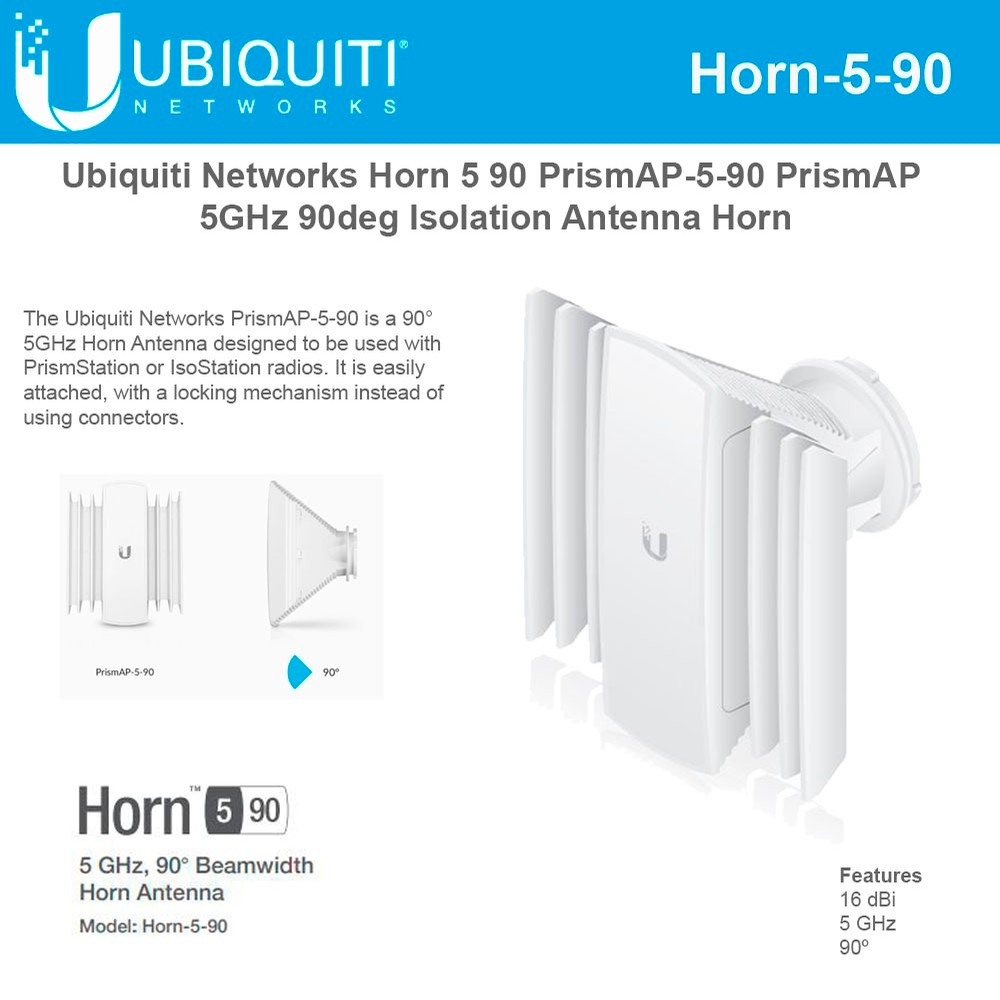

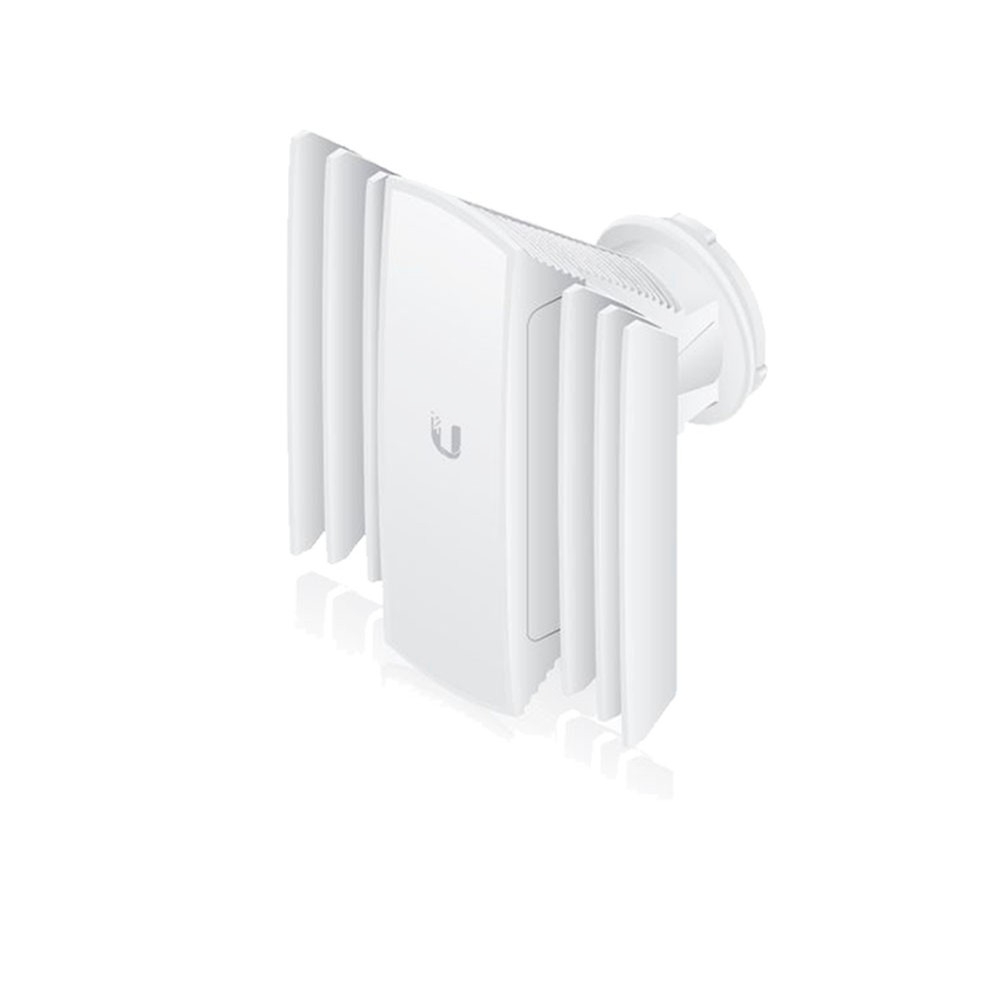

Ubiquiti Networks Horn-5-90 Horn 5GHz 90° Isolation Horn Antenna

Product Highlights
  • 5 GHz
  • 13 dBi
  • Works with PrismAP
  • Model#: Horn-5-90

    Sku: IT2188

    MSRP: $79.99

    Out of stock

    Your Price: $79.99

    Model: Horn-5-90  (PrismAP-5-90)

    Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

    With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co-location performance without sacrificing gain.

    There are two asymmetrical horn

    • Horn-5-60: 60° beamwidth
    • Horn-5-90: 90° beamwidth

    These models have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.

    Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

    Product Specifications
    • Dimensions: 152.1 x 186.8 x 113.2mm
    • Weight: 0.92kg
    • Operating Frequency: 5.15 to 5.85GHz
    • Gain: 13dBi
    • HPOL Beam Angle: 90°
    • VPOL: Beam Angle: 90°
    • Polarization: Dual-linear
    • Cross-Pol Insulation: 17dB



    PDF File Ubiquiti Networks Horn-5-90 Horn 5GHz 90° Isolation Horn Antenna
